Clamp ferrule with hose tail
Clamp × barbed hose tail
ID 25–101 mm

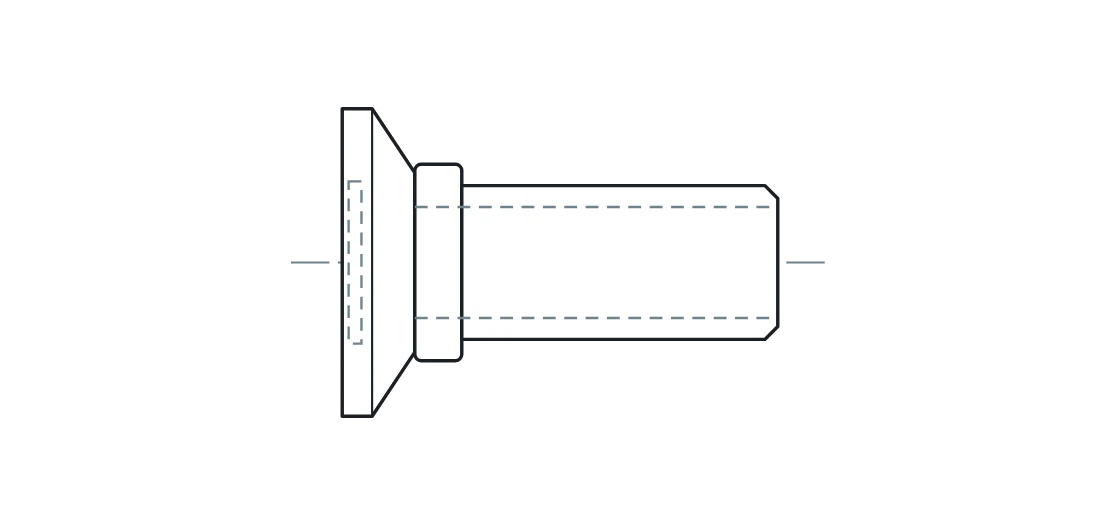

Clamp ferrule with smooth tail and collar Clamp × smooth tail with collar
Clamp (tri-clamp) couplings are hygienic couplings for food lines: two ferrules are clamped together over a seal. Smooth bore without gaps, quick to dismantle for cleaning. DN 25–75.
- Inner diameter
- 25–75 mm
- System
- Clamp (tri-clamp)
- Material
- Stainless steel
- Connection
- Hose tail
Seals for this coupling are in Seals and gaskets.
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 25, 38, 50, 63, 75
- Coupling system
- Clamp (tri-clamp)
- Body material
- Stainless steel
- Connection
- Hose tail
Sizes and article numbers
Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.
| DN, mm | Article |
|---|---|
| 25 | 303025 |
| 38 | 303038 |
| 50 | 303050 |
| 63 | 303063 |
| 75 | 303075 |
Application and limits
- Application
- Clamp (tri-clamp) couplings are hygienic couplings for food lines: two ferrules are clamped together over a seal. Smooth bore without gaps, quick to dismantle for cleaning.
- Features
- Quick assembly and dismantling with a clamp, smooth bore without gaps — easy to clean, for food and pharmaceutical lines
- Limits
- Working pressure and temperature depend on the size, body material and seal — please check when ordering.
Similar series
Whole category
Clamp
Clamp for Clamp (tri-clamp) ferrules
ID 50–91 mm
Clamp seal
Seal for Clamp couplings
ID 25–104 mm
Need a quote for Clamp ferrule with smooth tail and collar?
Send us the sizes and quantities — we will reply with availability and lead time.
