Industrial hose catalogue

145 DELCOS hose series for vacuum trucks, steam, food, abrasives, water, air, oil products and chemicals, plus couplings and protective sleeves. Each series page shows the construction, limits and the full size table.

Hoses by medium

Ranges in each tile cover all series of the category; the series are listed below.

Steam hoses

Saturated steam and hot water

ID 10–102 mm · up to 17 bar · −40…+210 °C

Series: DELSTEAM 170 °C, DELSTEAM 210 °C, DELSTEAM FOOD 170 °C

Food hoses

Milk, drinks, edible oils, dry foods, pharmaceuticals

ID 13–152 mm · up to 20 bar · −60…+200 °C

Series: DELFOOD MILK 10 D, DELFOOD MILK 10 SD, DELFOOD 10 HD, DELBREW 10 D, DELBREW 10 SD and 21 more

Sections: Milk and dairy hoses, Beverage hoses, Edible oil hoses, Dry food hoses

Abrasive hoses

Cement, sand, concrete, plaster, drilling mud

ID 13–600 mm · up to 85 bar · −40…+100 °C

Series: DELHD 10 CR, DELHD 5 CR, DELSC STREET SWEEPER, DELHD 10 D, DELHD 10 SD and 19 more

Sections: Vacuum truck hoses

Water hoses

Industrial and hot water, suction, cooling

ID 6–609 mm · up to 60 bar · −60…+250 °C

Series: DELFLEX 10 D, DELFLEX 10 SD, DELSTEAM 10 D 120 °C, DELSTEAM 3 D 120 °C, DELFLEX 10 SD CR and 19 more

Air hoses

Compressed air, welding gases, exhaust gases

ID 6–254 mm · up to 40 bar · −85…+500 °C

Series: DELAIR 20 D, DELAIR 20 D YELLOW, DELAIR 40 HD, DELAIR 25 D, DELAIR HOT 40 D 160 °C and 11 more

Oil and fuel hoses

Fuels, mineral oils, LPG, aviation fuel, bitumen

ID 3–305 mm · up to 40 bar · −55…+180 °C

Series: DELOIL 10 D, DELOIL 10 SD, DELOIL ARCTIC −55 °C, DELOIL +180 °C 15 SD, DELOIL 10 D LL and 32 more

Chemical hoses

A wide range of chemical products

ID 6–305 mm · up to 30 bar · −50…+170 °C

Series: DELCHEM EPDM 10 D, DELCHEM EPDM 16 SD, DELCHEM UPE 16 SD, DELMULTI 10 SD, DELMULTI 20 SD and 8 more

Layflat hoses

Drainage, irrigation, temporary lines

ID 20–609 mm · up to 25 bar · −50…+100 °C

Series: DELFLAT, DELFLAT L, DELFLAT PU, DELFLAT HD, DELFLEX AGRO 10 LF and 5 more

Couplings and protection

Couplings and protective sleeves for cables and hoses.

Camlock couplings

Camlock types A–F, caps DC and plugs DP

ID 12–203 mm

Series: Camlock type A, stainless steel, Camlock type A, aluminium, Camlock type A, brass, Camlock type A, polypropylene, Camlock type B, stainless steel and 28 more

Food couplings

Clamp, Macon, DIN 11851, SMS 1145

ID 25–104 mm

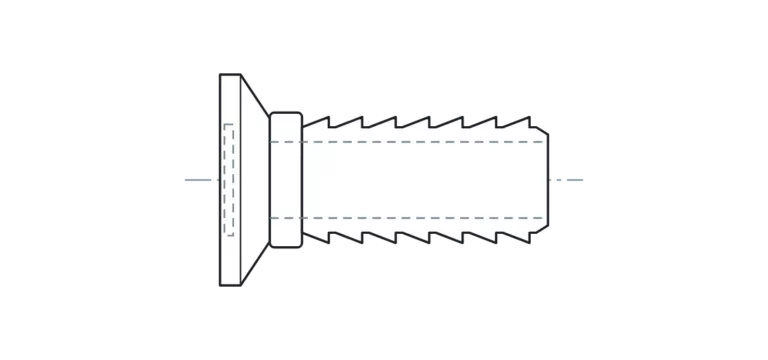

Series: Clamp ferrule with hose tail, Clamp, Clamp seal, Clamp ferrule with smooth tail and collar, Clamp weld ferrule and 11 more

Tank truck and fuel couplings

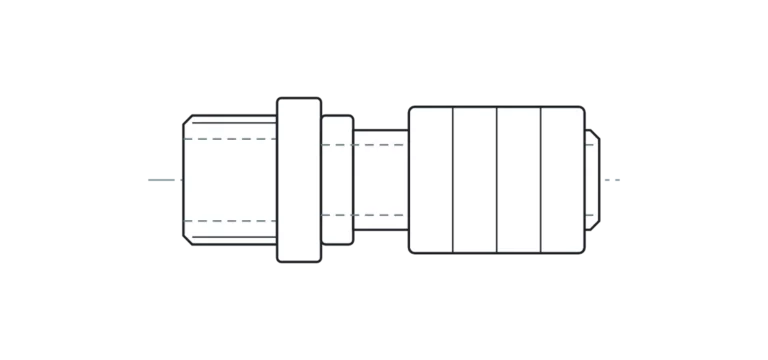

MK/VK, MEKA, DIN 2817 clamps

ID 13–200 mm

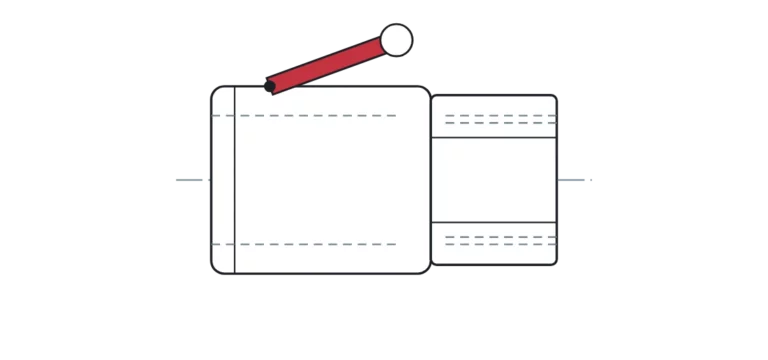

Series: MK coupling with handle, stainless steel, VK adapter, stainless steel, MB cap, stainless steel, VB cap, stainless steel, MKH ring with hand clamp, stainless steel and 14 more

Storz couplings

Symmetrical couplings, size by lug distance

ID 19–150 mm

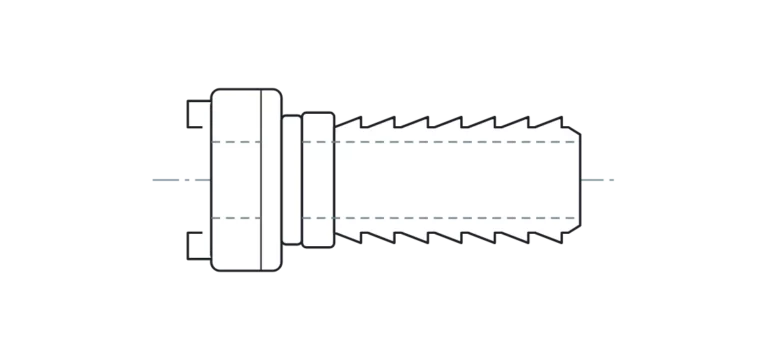

Series: Storz coupling with ribbed hose tail, Storz coupling with safety ring and smooth tail, Storz coupling with barbed hose tail, Storz adapter with female thread, Storz adapter with male thread and 10 more

Perrot couplings

Ball joint couplings for pipes 50–305 mm

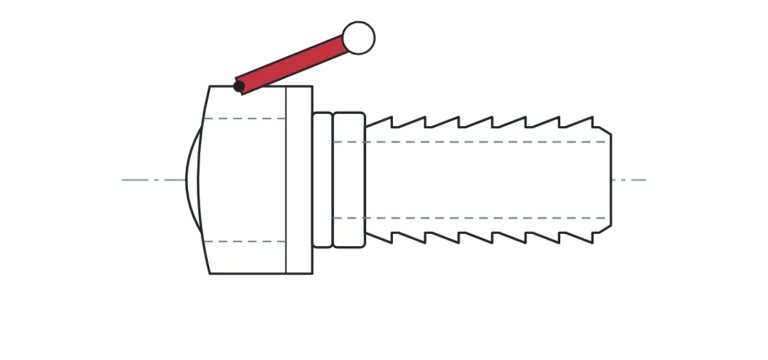

Series: Perrot quick fitting, Perrot weld-on coupling part, Perrot fitting and ring, weld-on, Perrot coupling with barbed hose tail, Perrot coupling with rolled tail and 18 more

Seals and gaskets

For Camlock, Clamp, Macon, DIN 11851, Storz and Perrot

ID 13–203 mm

Series: Camlock seal, Clamp seal, Macon seal, DIN 11851 gasket for blank caps, NBR, DIN 11851 food grade seal, FDA and 3 more

Hose assemblies

Hoses with crimped couplings, pressure tested

Cable and hose protection

Protection from flame, heat and abrasion

ID 13–300 mm · up to 5 bar · −30…+550 °C

Series: Heat protection sleeve +550 °C, Welding cable protection sleeve, PROTECTION 5HD

All series in one table

Click a column heading to sort, for example by diameter or temperature.


DELSTEAM 170 °C	Steam hoses	13–102	6	pressure	−40…+170
DELSTEAM 210 °C	Steam hoses	10–102	17	pressure	−40…+210
DELSTEAM FOOD 170 °C	Food hoses	13–51	7	pressure	−40…+170
DELFOOD MILK 10 D	Food hoses	19–102	10	pressure	−40…+80
DELFOOD MILK 10 SD	Food hoses	19–102	10	pressure and suction	−40…+80
DELFOOD 10 HD	Food hoses	51–102	10	pressure	−40…+80
DELBREW 10 D	Food hoses	19–102	10	pressure	−40…+120
DELBREW 10 SD	Food hoses	19–102	10	pressure and suction	−40…+120
DELBREW 10 SD LITE	Food hoses	38–102	10	pressure and suction	−40…+120
DELBREW 12 SD FC	Food hoses	32–102	12	pressure and suction	−40…+120
DELWINE 10 D	Food hoses	13–102	10	pressure	−40…+120
DELWINE 10 SD	Food hoses	19–102	10	pressure and suction	−40…+120
DELWINE 10 SD LITE	Food hoses	38–102	10	pressure and suction	−40…+120
DELSPIRIT 10 SD	Food hoses	19–102	10	pressure and suction	−20…+80
DELDRINK 20 D	Food hoses	13–102	20	pressure	−20…+60
DELFOOD MILK 10 SD LITE	Food hoses	38–102	10	pressure and suction	−40…+80
DELFOOD 10 SD	Food hoses	19–152	10	pressure and suction	−40…+140
DELFOOD TANKER 10 SD	Food hoses	51–102	10	pressure and suction	−40…+80
DELFOOD GRAIN 5 SD FC	Food hoses	51–152	5	pressure and suction	−40…+80
DELFOOD GRAIN 10 SD	Food hoses	51–152	10	pressure and suction	−40…+80
DELFOOD GRAIN 10 LF	Food hoses	80–152	10	pressure, layflat	−40…+80
DELFOOD HOT DRY 10 D	Food hoses	25–76	10	pressure	−40…+200
DELFOOD HOT DRY 10 SD	Food hoses	25–102	10	pressure and suction	−40…+200
DELPHARMA SIL D	Food hoses	19–63.5	5	pressure	−50…+200
DELPHARMA SIL SD	Food hoses	19–63.5	5	pressure and suction	−50…+200
DELPHARMA FEP-SIL 10 SD	Food hoses	19–76	10	pressure and suction	−60…+170
DELPHARMA FEP 16 SD	Food hoses	19–76	16	pressure and suction	−50…+170
DELPHARMA FEP 16 SD FC	Food hoses	19–76	16	pressure and suction	−50…+170
DELHD 10 CR	Vacuum truck hoses	80–305	10	pressure and suction	−40…+70
DELHD 5 CR	Vacuum truck hoses	51–150	5	pressure and suction	−30…+90
DELSC STREET SWEEPER	Vacuum truck hoses	102–305	—	suction	−40…+70
DELHD 10 D	Abrasive hoses	51–120	10	pressure	−40…+70
DELHD 10 SD	Abrasive hoses	51–203	10	pressure and suction	−40…+70
DELSAND 12 D	Abrasive hoses	13–102	12	pressure	−40…+70
DELCEM 10 PL	Abrasive hoses	25–127	10	pressure	−30…+90
DELPLAST 40 D	Abrasive hoses	25–102	40	pressure	−40…+70
DELPLAST 85 D	Abrasive hoses	51–152	85	pressure	−40…+70
DELSAND 18 HEAVY	Abrasive hoses	13–65	18	pressure	−40…+70
DELCEM 4 LF	Abrasive hoses	90–152	4	pressure, layflat	−40…+70
DELHD 10 SD GR	Abrasive hoses	51–102	10	pressure and suction	−40…+70
DELHD S	Abrasive hoses	76–254	—	suction	−40…+70
DELHD TUBE	Abrasive hoses	80–600	—	gravity discharge	−40…+70
DELHD S LITE	Abrasive hoses	51–254	—	suction	−30…+90
DELSC STREET SWEEPER LITE	Vacuum truck hoses	102–305	—	suction	−40…+70
DELDRILLING MUD 20 D	Abrasive hoses	76–305	20	pressure	−40…+100
DELDRILLING MUD 27 D	Abrasive hoses	76–152	27	pressure	−40…+100
DELDRILLING MUD 20 D X	Abrasive hoses	76–152	20	pressure	−30…+80
DELDRILLING MUD 20 SD	Abrasive hoses	76–254	20	pressure and suction	−40…+100
DELBULK 20 D	Abrasive hoses	76–152	20	pressure	−40…+70
DELBULK 40 D	Abrasive hoses	127–152	40	pressure	−40…+70
DELBULK 20 SD	Abrasive hoses	76–152	20	pressure and suction	−40…+70
DELBULK 40 SD	Abrasive hoses	76–152	40	pressure and suction	−40…+70
DELFLEX 10 D	Water hoses	6–60	10	pressure	−30…+80
DELFLEX 10 SD	Water hoses	19–305	10	pressure and suction	−30…+80
DELSTEAM 10 D 120 °C	Water hoses	10–60	10	pressure	−40…+120
DELSTEAM 3 D 120 °C	Water hoses	13–110	3	pressure	−40…+120
DELFLEX 10 SD CR	Water hoses	51–609	10	pressure and suction	−30…+80
DELFLEX SNOW 60 D	Water hoses	25–38	60	pressure	−40…+120
DELHOT CLEAN 10 D	Water hoses	6–13	10	pressure	−40…+120
DELSTEAM 5 SD GR 120 °C	Water hoses	13–102	5	pressure and suction	−40…+120
DELHOT GLASS 10 D	Water hoses	10–38	10	pressure	−40…+130
DELHOT GLASS 20 D	Water hoses	13–102	20	pressure	−40…+130
DELMARINE EXHAUST 3 SD	Water hoses	25–302	3	pressure and suction	−30…+120
DELMARINE SAN 10 SD	Water hoses	19–45	10	pressure and suction	−40…+120
DELCOOL 10 SD	Water hoses	25–152	10	pressure and suction	−40…+120
DELHOT 20 D LL	Water hoses	8–25	20	pressure	−40…+120
DELCOOL 5 SD FC	Water hoses	19–152	5	pressure and suction	−40…+120
DELCOOL 5 SD GR	Water hoses	13–102	5	pressure and suction	−40…+120
DELCOOLING SIL 3 D	Water hoses	6–150	3	pressure	−56…+180
DELCOOLING SIL HEATER LL	Water hoses	6–32	5.7	pressure	−56…+180
DELCOOLING SIL 5 D	Water hoses	12–102	5	pressure	−60…+250
DELCOOLING SIL 5 SD	Water hoses	15–102	5	pressure and suction	−60…+200
DELCOOLING SIL 5 SD GR	Water hoses	15–152	5	pressure and suction	−60…+200
DELRIG AQUA 20 D	Water hoses	51–152	20	pressure	−40…+120
DELRIG AQUA 35 SD	Water hoses	51–152	35	pressure and suction	−40…+120
DELFIRE-WATER 20 D	Water hoses	51–152	20	pressure	−40…+100
DELAIR 20 D	Air hoses	6–102	20	pressure	−30…+80
DELAIR 20 D YELLOW	Air hoses	13–102	20	pressure	−30…+80
DELAIR 40 HD	Air hoses	19–102	40	pressure	−30…+80
DELAIR 25 D	Air hoses	19–102	25	pressure	−30…+80
DELAIR HOT 40 D 160 °C	Air hoses	51–102	40	pressure	−30…+160
DELWELD 20 OXYGEN	Air hoses	6–25	20	pressure	−25…+80
DELWELD 20 ACETYLENE	Air hoses	6–25	20	pressure	−25…+80
DELWELD 20 TWIN	Air hoses	6–9	20	pressure	−25…+80
DELWELD 20 PROPANE	Air hoses	6–9	20	pressure	−25…+80
DELAIR VIBRO 10 D	Air hoses	19–25	10	pressure	−20…+70
DELVAC LITE	Air hoses	25–203	—	suction	−40…+90
DELVAC	Air hoses	30–203	—	suction	−30…+90
DELEXHAUST 170 °C	Air hoses	51–203	—	suction	−40…+170
DELEXHAUST 170 °C PLUS	Air hoses	76–152	—	suction	−40…+170
DELEXHAUST 250 °C	Air hoses	100–254	—	suction	−50…+250
DELEXHAUST 500 °C	Air hoses	102–254	—	suction	−85…+500
DELOIL 10 D	Oil and fuel hoses	19–102	10	pressure	−30…+80
DELOIL 10 SD	Oil and fuel hoses	19–254	10	pressure and suction	−30…+80

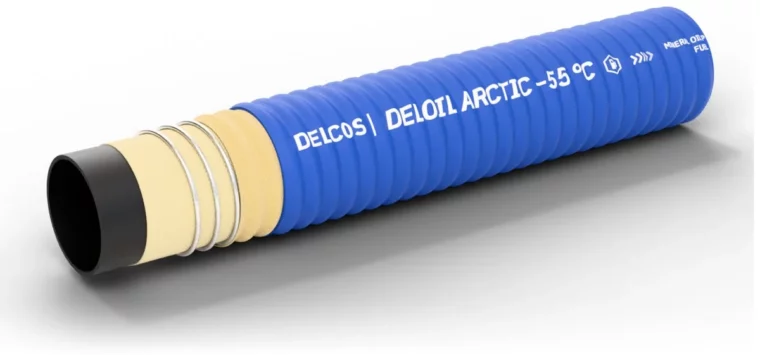

DELOIL ARCTIC −55 °C	Oil and fuel hoses	51–102	10	pressure and suction	−55…+90
DELOIL +180 °C 15 SD	Oil and fuel hoses	76–127	15	pressure and suction	−30…+180
DELOIL 10 D LL	Oil and fuel hoses	4–25	10	pressure	−25…+80
DELOIL 10 D LL AS	Oil and fuel hoses	4–25	10	pressure	−40…+100
DELOIL 20 D LL	Oil and fuel hoses	5–25	20	pressure	−25…+80
DELOIL 10 D LL BRAID	Oil and fuel hoses	3–25	10	pressure	−40…+90
DELOIL 15 LF	Oil and fuel hoses	76–203	15	pressure, layflat	−30…+80
DELOIL 16 D	Oil and fuel hoses	19–152	16	pressure	−30…+70
DELOIL 16 SD	Oil and fuel hoses	19–152	16	pressure and suction	−30…+70
DELOIL 18 D REEL	Oil and fuel hoses	19–51	18	pressure	−30…+80
DELOIL 10 SD GR	Oil and fuel hoses	19–102	10	pressure and suction	−30…+80
DELOIL 5 SD CR	Oil and fuel hoses	19–102	5	pressure and suction	−30…+100
DELOIL 5 SD FC	Oil and fuel hoses	19–102	5	pressure and suction	−30…+100
DELOIL 10 SD FC	Oil and fuel hoses	19–102	10	pressure and suction	−30…+100
DELOIL 17 SD FC	Oil and fuel hoses	19–152	17	pressure and suction	−30…+100
DELOIL TANKER 10 SD LITE	Oil and fuel hoses	51–102	10	pressure and suction	−30…+80
DELJET 20 D	Oil and fuel hoses	19–102	20	pressure	−30…+70
DELJET 20 SD	Oil and fuel hoses	19–102	20	pressure and suction	−30…+70
DELJET 20 SD PL	Oil and fuel hoses	19–102	20	pressure and suction	−30…+70
DELGAS LPG 25 TYPE D	Oil and fuel hoses	13–102	25	pressure	−30…+70
DELGAS LPG 25 TYPE SD	Oil and fuel hoses	13–102	25	pressure and suction	−30…+70
DELMARINE FUEL D LL	Oil and fuel hoses	6.8–19	3.4	pressure	−20…+100
DELMARINE FUEL 10 D	Oil and fuel hoses	19–51	10	pressure	−20…+100
DELMARINE FUEL 5 SD	Oil and fuel hoses	19–51	5	pressure and suction	−20…+100
DELOIL DOCK 20 SD	Oil and fuel hoses	76–152	20	pressure and suction	−20…+80
DELOIL 27 SD HW	Oil and fuel hoses	102–203	27	pressure and suction	−30…+100
DELOIL BUNKER 15 D	Oil and fuel hoses	51–302	15	pressure	−30…+100
DELOIL BUNKER 20 D	Oil and fuel hoses	76–152	20	pressure	−20…+80
DELOIL BUNKER 27 D	Oil and fuel hoses	76–152	27	pressure	−20…+80
DELOIL DOCK 15 SD	Oil and fuel hoses	51–302	15	pressure and suction	−30…+100
DELOIL 40 SD HW	Oil and fuel hoses	102–203	40	pressure and suction	−30…+100
DELCHEM EPDM 10 D	Chemical hoses	13–102	10	pressure	−40…+100
DELCHEM EPDM 16 SD	Chemical hoses	19–102	16	pressure and suction	−40…+100

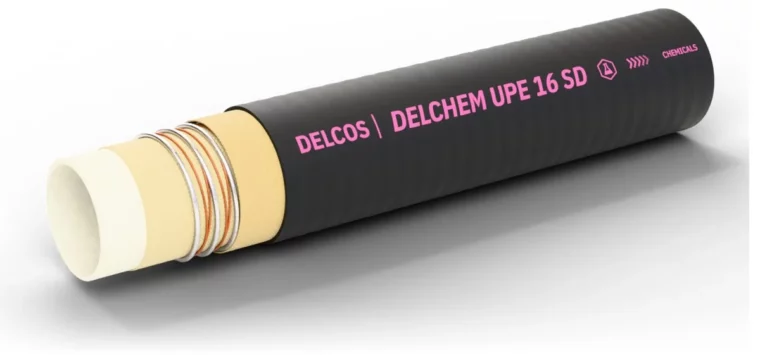

DELCHEM UPE 16 SD	Chemical hoses	19–102	16	pressure and suction	−20…+100
DELMULTI 10 SD	Chemical hoses	13–305	10	pressure and suction	−40…+120
DELMULTI 20 SD	Chemical hoses	25–203	20	pressure and suction	−40…+120
DELMULTI 30 D	Chemical hoses	13–51	30	pressure	−40…+120
DELCHEM EPDM 16 D	Chemical hoses	19–102	16	pressure	−40…+100
DELCHEM UREA 20 D	Chemical hoses	13–76	20	pressure	−40…+120
DELCHEM FEP 16 SD	Chemical hoses	13–76	16	pressure and suction	−50…+170
DELCHEM PTFE 16 SD	Chemical hoses	19–50	16	pressure and suction	−50…+170
DELCHEM FKM 10 D	Chemical hoses	6–51	10	pressure	−35…+100
DELCHEM FKM 10 SD	Chemical hoses	19–102	10	pressure and suction	−35…+100
DELCHEM NH3 25 D	Chemical hoses	19–76	25	pressure	−40…+120
DELFLAT	Layflat hoses	20–305	25	pressure, layflat	−20…+100
DELFLAT L	Layflat hoses	38–407	5	pressure, layflat	−10…+60
DELFLAT PU	Layflat hoses	25–356	20	pressure, layflat	−50…+75
DELFLAT HD	Layflat hoses	52–152	20	pressure, layflat	−50…+75
DELFLEX AGRO 10 LF	Layflat hoses	40–609	10	pressure, layflat	−30…+80
DELFLEX AGRO 16 LF	Layflat hoses	52–152	16	pressure, layflat	−20…+100
DELFLEX 20 LF	Layflat hoses	60–203	20	pressure, layflat	−30…+80
Heat protection sleeve +550 °C	Cable and hose protection	75–300	—	protection	−30…+550
Welding cable protection sleeve	Cable and hose protection	19–51	—	protection	−30…+80
PROTECTION 5HD	Cable and hose protection	13–51	5	protection	−30…+85

Did not find a suitable series?

Send us the medium, pressure, diameter and length — we will select the hose and couplings.

Send an email
