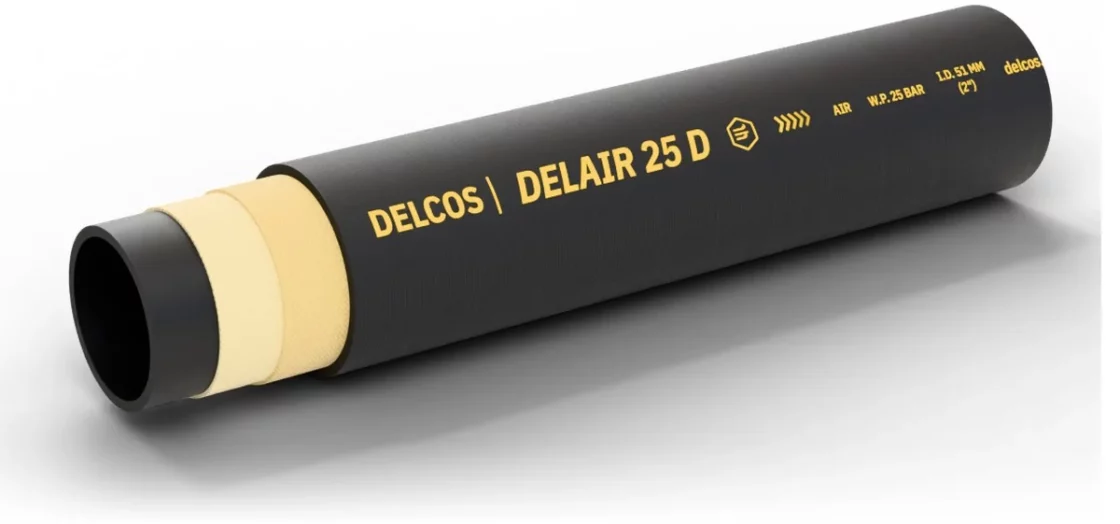

DELAIR 25 D hose with layers partly removed: inner tube, reinforcement and cover

DELAIR 25 D Heavy duty compressed air hose, 25 bar

Compressed air hose for heavy pneumatic tools in road and railway construction, tunnelling and mining, working pressure 25 bar. Inner diameter 19–102 mm, working pressure up to 25 bar, temperature from −30 to +80 °C.

Inner diameter: 19–102 mm
Working pressure: up to 25 bar
Mode: pressure only
Temperature: −30…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 25
Medium: Air
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+80
Tube material: SBR
Coil length, m: 40, 61

Construction

Inner tube: SBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: SBR/EPDM rubber, black, smooth, cloth impression, resistant to abrasion and weathering

DELAIR 25 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
19	605019032	32	25	75	0.74	40, 61
25	605025039	39	25	75	1	40, 61
32	605032048	48	25	75	1.43	40, 61
38	605038054	54	25	75	1.64	40, 61
51	605051069	69	25	75	2.41	40, 61
63.5	605063083	83	25	75	3.19	40, 61
76	605076096	96	25	75	3.84	40, 61
102	605102125	125	25	75	5.82	40, 61

Application and limits

Application: Compressed air hose for heavy pneumatic tools in road and railway construction, tunnelling and mining, working pressure 25 bar.
Features: Strong, abrasion resistant
Limits: Operating temperature from −30 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
