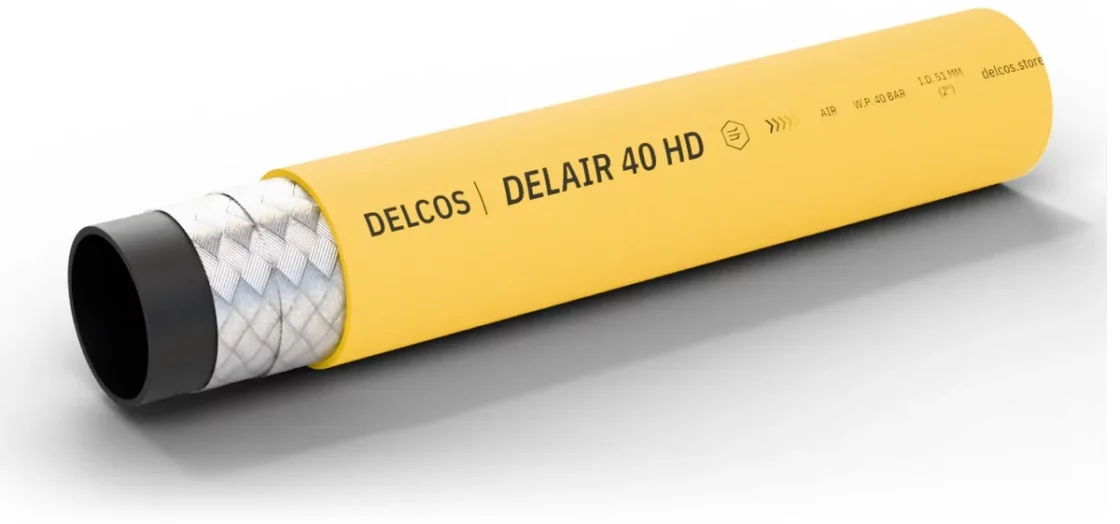

DELAIR 40 HD hose with layers partly removed: inner tube, reinforcement and cover

DELAIR 40 HD Compressed air hose with steel wire reinforcement

High pressure compressed air hose for heavy pneumatic tools in road and railway construction, tunnelling and mining. Inner diameter 19–102 mm, working pressure up to 40 bar, temperature from −30 to +80 °C.

Inner diameter: 19–102 mm
Working pressure: up to 40 bar
Mode: pressure only
Temperature: −30…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63, 76, 102
Working pressure, bar: 30, 40
Medium: Air
Mode: Pressure
Reinforcement: Steel wire
Temperature, °C: −30…+80
Tube material: SBR
Coil length, m: 61

Construction

Inner tube: SBR rubber, black, smooth
Reinforcement: High tensile steel wire
Cover: EPDM rubber, yellow, smooth, cloth impression, resistant to abrasion and weathering

DELAIR 40 HD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	602019028	28	40	160	95	0.54	61
25	602025034	34	40	160	125	0.69	61
32	602032042	42	40	160	160	1.07	61
38	602038048	48	40	160	190	1.27	61
51	602051064	64	40	160	255	1.99	61
63	602063077	77	30	120	315	2.43	61
76	602076090	90	30	120	380	2.9	61
102	602102122	122	30	120	510	4.1	61

Application and limits

Application: High pressure compressed air hose for heavy pneumatic tools in road and railway construction, tunnelling and mining.
Features: Steel wire reinforcement, yellow cover
Limits: Operating temperature from −30 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
