DELAIR 20 D
Heavy duty compressed air hose
ID 6–102 mm · up to 20 bar
DELAIR 20 D YELLOW Air and water hose for docks and oil rigs, yellow cover
Delivery hose for compressed air and water in docks and on oil rigs; yellow cover for easy identification. Inner diameter 13–102 mm, working pressure up to 20 bar, temperature from −30 to +80 °C.
- Inner diameter
- 13–102 mm
- Working pressure
- up to 20 bar
- Mode
- pressure only
- Temperature
- −30…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 13, 19, 25, 32, 38, 51, 76, 102
- Working pressure, bar
- 20
- Medium
- Air, water
- Mode
- Pressure
- Reinforcement
- Textile cord
- Temperature, °C
- −30…+80
- Tube material
- SBR
- Coil length, m
- 40, 61

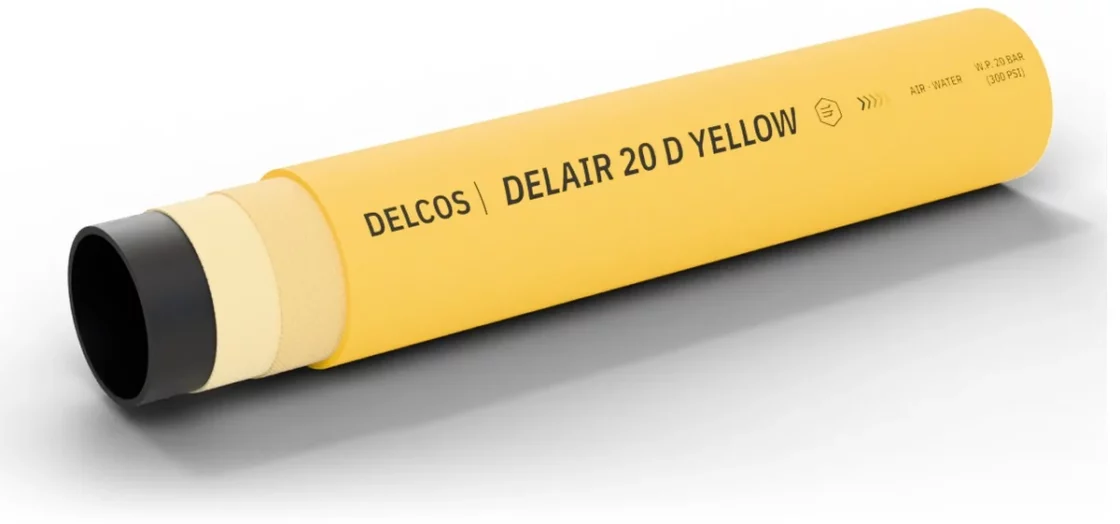

Construction
- Inner tube
- SBR rubber, black, smooth, antistatic
- Reinforcement
- High strength synthetic textile plies
- Cover
- SBR rubber, yellow, smooth, cloth impression, resistant to weathering, oils, grease and sea water
- Electrical properties
- Antistatic inner tube; copper wire on request
DELAIR 20 D YELLOW sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|
| 13 | 601013023 | 23 | 20 | 80 | 0.4 | 40, 61 |
| 19 | 601019030 | 30 | 20 | 80 | 0.6 | 40, 61 |
| 25 | 601025037 | 37 | 20 | 80 | 0.9 | 40, 61 |
| 32 | 601032044 | 44 | 20 | 80 | 1.2 | 40, 61 |
| 38 | 601038052 | 52 | 20 | 80 | 1.65 | 40, 61 |
| 51 | 601051064 | 64 | 20 | 80 | 2.1 | 40, 61 |
| 76 | 601076096 | 96 | 20 | 80 | 3.18 | 40, 61 |
| 102 | 601102124 | 124 | 20 | 80 | 4.63 | 40, 61 |
Application and limits
- Application
- Delivery hose for compressed air and water in docks and on oil rigs; yellow cover for easy identification.
- Features
- Cover resistant to oils and sea water, antistatic inner tube
- Limits
- Operating temperature from −30 to +80 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
- Copper wire for grounding on request.
- Also available with a blue or green cover.
