DELOIL 10 D
Delivery hose for oil products and fuel
ID 19–102 mm · up to 10 bar
Oil and fuel hoses
Rubber hoses for diesel, petrol, mineral oil products, crude oil, aviation fuel and LPG — for tank trucks and fuel distribution, aircraft ground refuelling, bunkering and dock service, offshore and onshore operations, oil rigs, and for leisure boats. Delivery hoses and suction and delivery hoses, ID 3–305 mm, up to 40 bar. Also an arctic tank truck hose for −55 °C and a hose for hot tar and asphalt up to +180 °C.
Series
Each series page shows the application, construction, limits and the full size table.
DELOIL 10 SD
Suction and discharge hose for oil products and fuel
ID 19–254 mm · up to 10 bar
DELOIL ARCTIC −55 °C
Arctic tank truck hose down to −55 °C
ID 51–102 mm · up to 10 bar
DELOIL +180 °C 15 SD
Hose for hot oils and tar up to +180 °C
ID 76–127 mm · up to 15 bar

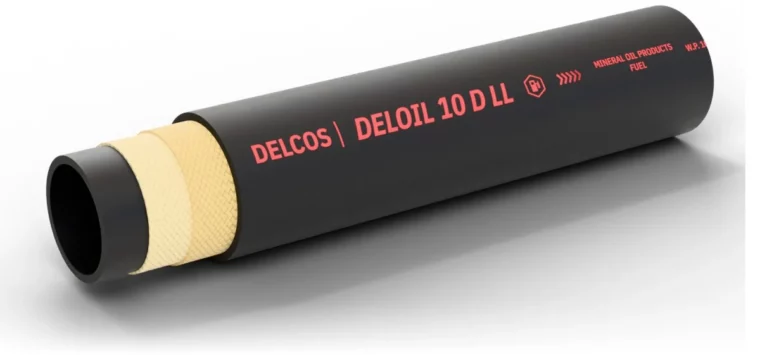

DELOIL 10 D LL
Fuel and oil hose in long coils
ID 4–25 mm · up to 10 bar
DELOIL 10 D LL AS
Antistatic fuel hose in long coils, down to −40 °C
ID 4–25 mm · up to 10 bar

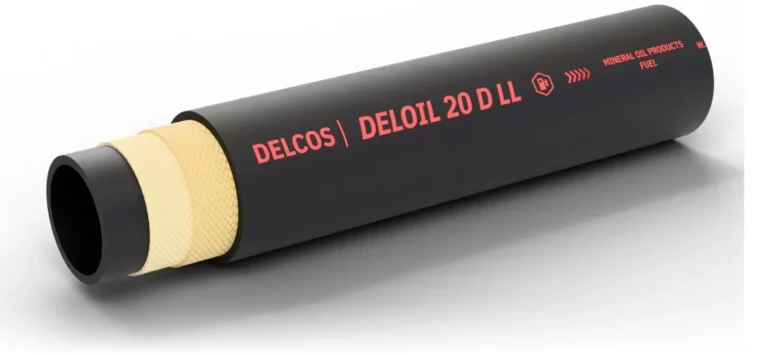

DELOIL 20 D LL
Fuel and oil hose in long coils, 20 bar
ID 5–25 mm · up to 20 bar

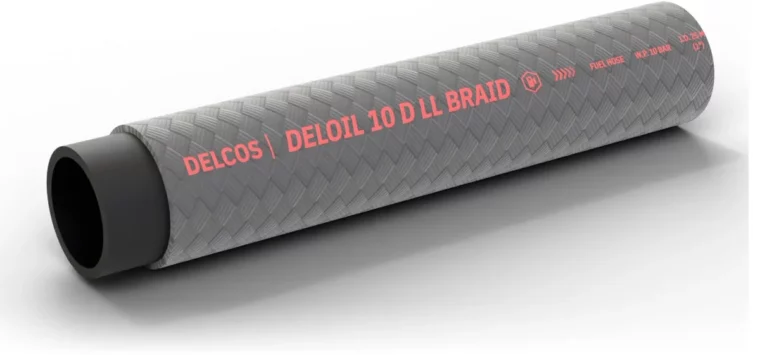

DELOIL 10 D LL BRAID
Small bore fuel and oil hose with textile braid
ID 3–25 mm · up to 10 bar
DELOIL 15 LF
Layflat hose for fuels and oils
ID 76–203 mm · up to 15 bar
DELOIL 16 D
Tank truck delivery hose for fuels, 16 bar
ID 19–152 mm · up to 16 bar
DELOIL 16 SD
Tank truck suction and delivery hose for fuels, 16 bar
ID 19–152 mm · up to 16 bar
DELOIL 18 D REEL
Fuel hose for hose reels, 18 bar
ID 19–51 mm · up to 18 bar

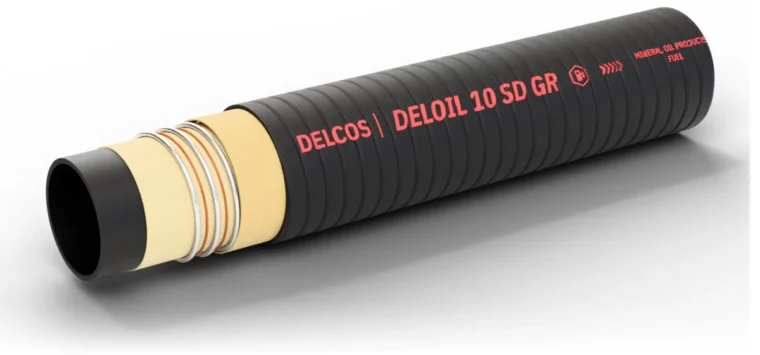

DELOIL 10 SD GR
Flexible fuel suction and delivery hose, helix grooved cover
ID 19–102 mm · up to 10 bar
DELOIL 5 SD CR
Corrugated fuel suction and delivery hose
ID 19–102 mm · up to 5 bar
DELOIL 5 SD FC
Extra flexible fuel hose, flat corrugated, 5 bar
ID 19–102 mm · up to 5 bar

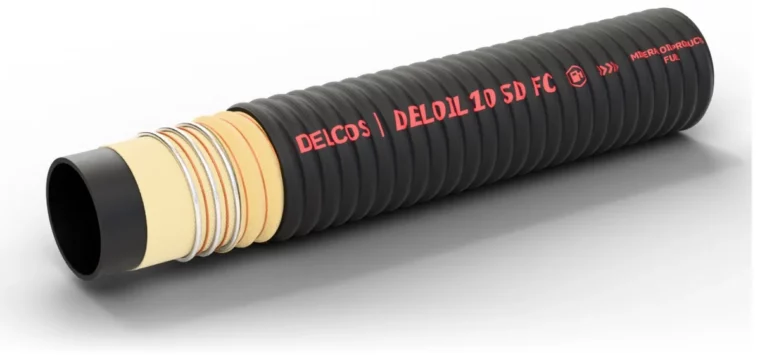

DELOIL 10 SD FC
Extra flexible fuel hose, flat corrugated, 10 bar
ID 19–102 mm · up to 10 bar
DELOIL 17 SD FC
Extra flexible fuel hose, flat corrugated, up to 17 bar
ID 19–152 mm · up to 17 bar
DELOIL TANKER 10 SD LITE
Light suction and delivery hose for road tankers
ID 51–102 mm · up to 10 bar
DELJET 20 D
Conductive aircraft refuelling hose
ID 19–102 mm · up to 20 bar
DELJET 20 SD
Aircraft refuelling suction and delivery hose, steel helix
ID 19–102 mm · up to 20 bar

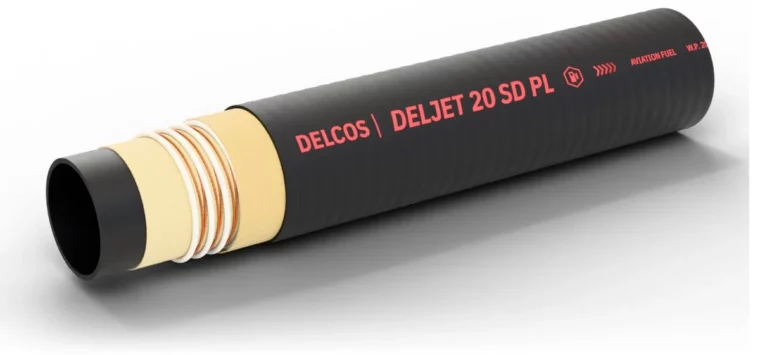

DELJET 20 SD PL
Crush resistant aircraft refuelling suction and delivery hose
ID 19–102 mm · up to 20 bar
DELGAS LPG 25 TYPE D
LPG delivery hose, 25 bar
ID 13–102 mm · up to 25 bar
DELGAS LPG 25 TYPE SD
LPG suction and delivery hose, 25 bar
ID 13–102 mm · up to 25 bar

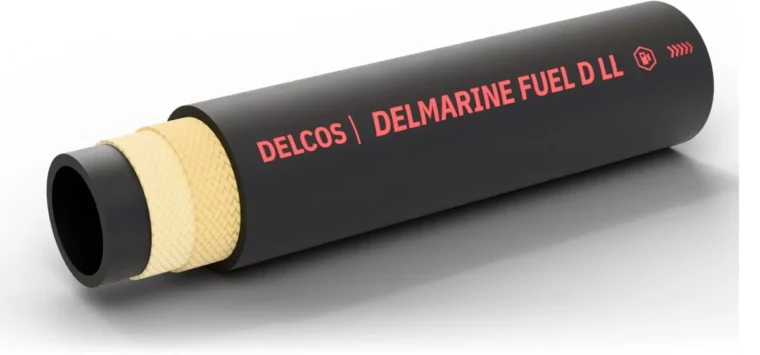

DELMARINE FUEL D LL
Marine fuel hose for leisure boats, long coils
ID 6.8–19 mm · up to 3.4 bar

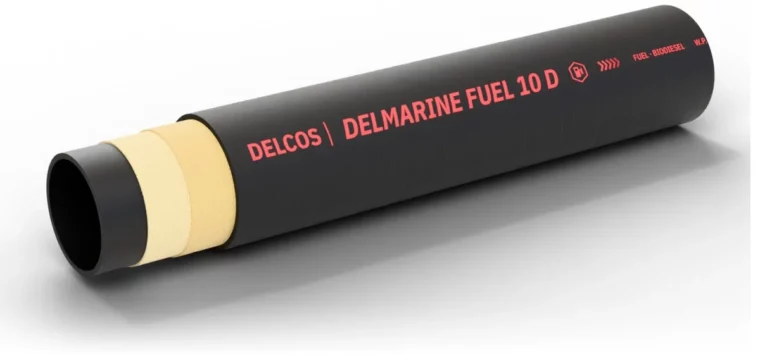

DELMARINE FUEL 10 D
Marine fuel delivery hose for leisure boats
ID 19–51 mm · up to 10 bar
DELMARINE FUEL 5 SD
Marine fuel suction and delivery hose for leisure boats
ID 19–51 mm · up to 5 bar
DELDRILLING MUD 20 D
Drilling mud delivery hose, 20 bar
ID 76–305 mm · up to 20 bar
DELDRILLING MUD 27 D
Drilling mud delivery hose, 27 bar
ID 76–152 mm · up to 27 bar
DELDRILLING MUD 20 D X
Drilling mud delivery hose, high abrasion resistance
ID 76–152 mm · up to 20 bar
DELDRILLING MUD 20 SD
Drilling mud suction and delivery hose, 20 bar
ID 76–254 mm · up to 20 bar

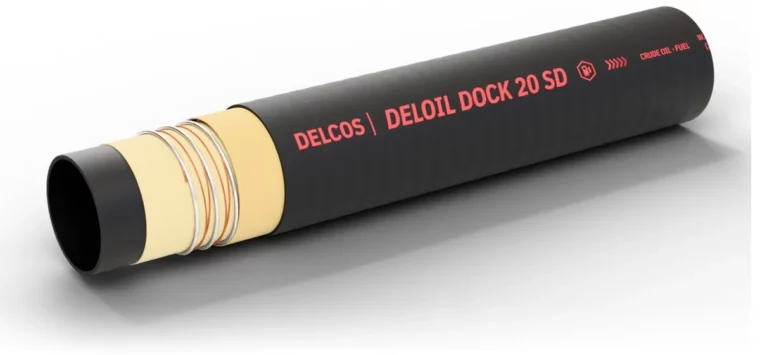

DELOIL DOCK 20 SD
Suction and delivery hose for crude oil, 20 bar
ID 76–152 mm · up to 20 bar

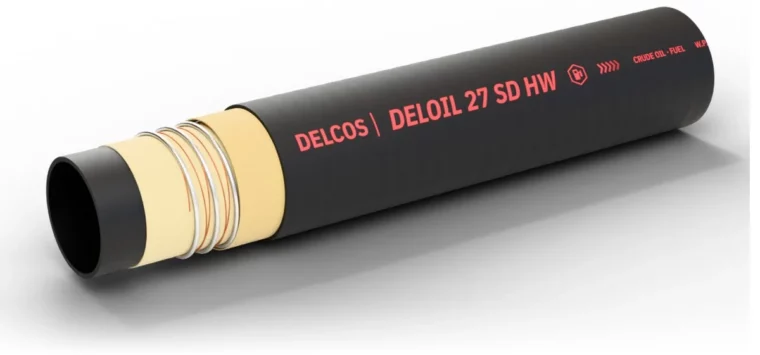

DELOIL 27 SD HW
Heavy duty suction and delivery hose for crude oil, 27 bar
ID 102–203 mm · up to 27 bar
DELOIL BUNKER 15 D
Bunkering hose for oil products, 15 bar
ID 51–302 mm · up to 15 bar

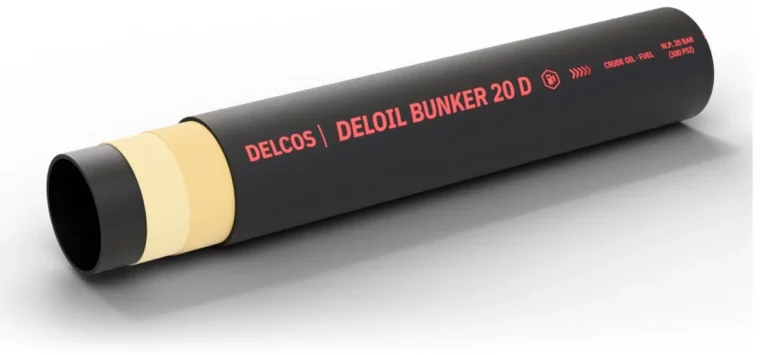

DELOIL BUNKER 20 D
Bunkering hose for oil products, 20 bar
ID 76–152 mm · up to 20 bar
DELOIL BUNKER 27 D
Bunkering hose for oil products, 27 bar
ID 76–152 mm · up to 27 bar

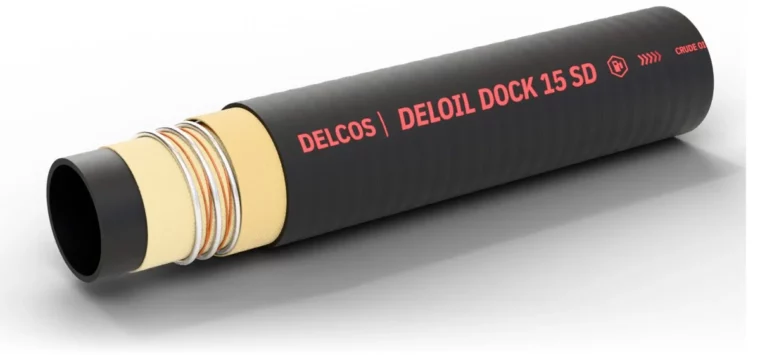

DELOIL DOCK 15 SD
Dock suction and delivery hose for oil products, 15 bar
ID 51–302 mm · up to 15 bar

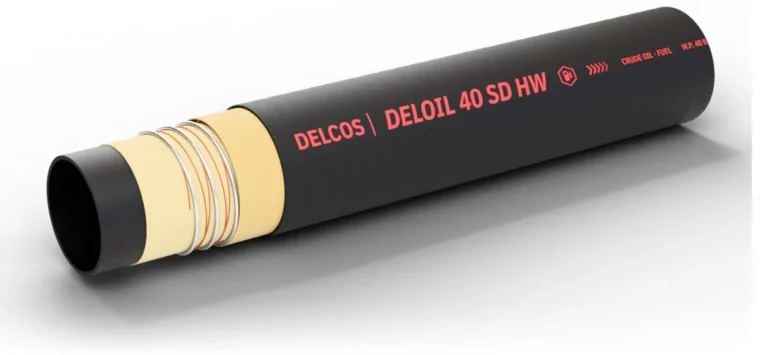

DELOIL 40 SD HW
Heavy duty suction and delivery hose for crude oil, 40 bar
ID 102–203 mm · up to 40 bar
Series comparison
Click a column heading to sort.
| DELOIL 10 D | 19–102 | 10 | pressure | −30…+80 |
|---|---|---|---|---|
| DELOIL 10 SD | 19–254 | 10 | pressure and suction | −30…+80 |
| DELOIL ARCTIC −55 °C | 51–102 | 10 | pressure and suction | −55…+90 |
| DELOIL +180 °C 15 SD | 76–127 | 15 | pressure and suction | −30…+180 |
| DELOIL 10 D LL | 4–25 | 10 | pressure | −25…+80 |
| DELOIL 10 D LL AS | 4–25 | 10 | pressure | −40…+100 |
| DELOIL 20 D LL | 5–25 | 20 | pressure | −25…+80 |
| DELOIL 10 D LL BRAID | 3–25 | 10 | pressure | −40…+90 |
| DELOIL 15 LF | 76–203 | 15 | pressure, layflat | −30…+80 |
| DELOIL 16 D | 19–152 | 16 | pressure | −30…+70 |
| DELOIL 16 SD | 19–152 | 16 | pressure and suction | −30…+70 |
| DELOIL 18 D REEL | 19–51 | 18 | pressure | −30…+80 |
| DELOIL 10 SD GR | 19–102 | 10 | pressure and suction | −30…+80 |
| DELOIL 5 SD CR | 19–102 | 5 | pressure and suction | −30…+100 |
| DELOIL 5 SD FC | 19–102 | 5 | pressure and suction | −30…+100 |
| DELOIL 10 SD FC | 19–102 | 10 | pressure and suction | −30…+100 |
| DELOIL 17 SD FC | 19–152 | 17 | pressure and suction | −30…+100 |
| DELOIL TANKER 10 SD LITE | 51–102 | 10 | pressure and suction | −30…+80 |
| DELJET 20 D | 19–102 | 20 | pressure | −30…+70 |
| DELJET 20 SD | 19–102 | 20 | pressure and suction | −30…+70 |
| DELJET 20 SD PL | 19–102 | 20 | pressure and suction | −30…+70 |
| DELGAS LPG 25 TYPE D | 13–102 | 25 | pressure | −30…+70 |
| DELGAS LPG 25 TYPE SD | 13–102 | 25 | pressure and suction | −30…+70 |
| DELMARINE FUEL D LL | 6.8–19 | 3.4 | pressure | −20…+100 |
| DELMARINE FUEL 10 D | 19–51 | 10 | pressure | −20…+100 |
| DELMARINE FUEL 5 SD | 19–51 | 5 | pressure and suction | −20…+100 |
| DELDRILLING MUD 20 D | 76–305 | 20 | pressure | −40…+100 |
| DELDRILLING MUD 27 D | 76–152 | 27 | pressure | −40…+100 |
| DELDRILLING MUD 20 D X | 76–152 | 20 | pressure | −30…+80 |
| DELDRILLING MUD 20 SD | 76–254 | 20 | pressure and suction | −40…+100 |
| DELOIL DOCK 20 SD | 76–152 | 20 | pressure and suction | −20…+80 |
| DELOIL 27 SD HW | 102–203 | 27 | pressure and suction | −30…+100 |
| DELOIL BUNKER 15 D | 51–302 | 15 | pressure | −30…+100 |
| DELOIL BUNKER 20 D | 76–152 | 20 | pressure | −20…+80 |
| DELOIL BUNKER 27 D | 76–152 | 27 | pressure | −20…+80 |
| DELOIL DOCK 15 SD | 51–302 | 15 | pressure and suction | −30…+100 |
| DELOIL 40 SD HW | 102–203 | 40 | pressure and suction | −30…+100 |
Suction and delivery or delivery only
DELOIL 10 SD has a steel helix and is vacuum resistant: it works on the suction side of a pump and for delivery as well. DELOIL 10 D has textile cord reinforcement without a helix and works under pressure only. DELOIL 10 SD and DELOIL 10 D carry fuels and petroleum products with up to 50% aromatics, at a working pressure of 10 bar and −30…+80 °C. The same choice between a delivery hose (D) and a suction and delivery hose (SD) exists in DELOIL 16, DELJET 20, DELGAS LPG 25, DELMARINE FUEL and DELDRILLING MUD.
See also: How to choose a hose for diesel transfer.
Which hose for which task
- Road tankers and fuel distribution — DELOIL 16 D, DELOIL 16 SD, DELOIL TANKER 10 SD LITE. DELOIL 16 D for delivery and DELOIL 16 SD for suction and delivery: ID 19–152 mm, 16 bar, flame resistant antistatic cover; a version with a conductive inner tube is available for ID 19–102 mm. DELOIL TANKER 10 SD LITE is a very light and flexible suction and delivery hose: ID 51–102 mm, 10 bar.
- Small bores in long coils — DELOIL 10 D LL, DELOIL 10 D LL AS, DELOIL 20 D LL, DELOIL 10 D LL BRAID. Delivery hoses for mineral oils, diesel and petrol, ID up to 25 mm, in coils of 50 and 100 m: DELOIL 10 D LL (10 bar), DELOIL 10 D LL AS with an antistatic inner tube and cover (10 bar, −40…+100 °C), DELOIL 20 D LL (20 bar, biodiesel up to 100%) and DELOIL 10 D LL BRAID with a textile braid, from ID 3 mm, for engines.
- Very flexible suction and delivery hoses — DELOIL 10 SD GR, DELOIL 5 SD CR, DELOIL 5 SD FC, DELOIL 10 SD FC, DELOIL 17 SD FC. Hoses for mineral oils, diesel and petrol with a helix grooved cover (DELOIL 10 SD GR, 10 bar), a corrugated cover (DELOIL 5 SD CR, 5 bar) or a flat corrugated cover (DELOIL 5 SD FC, DELOIL 10 SD FC and DELOIL 17 SD FC: 5, 10 and up to 17 bar); antistatic cover, copper wire for grounding. ID 19–102 mm, DELOIL 17 SD FC up to 152 mm.
- Aircraft ground refuelling — DELJET 20 D, DELJET 20 SD, DELJET 20 SD PL. Hoses for aviation fuel with a conductive inner tube and cover: DELJET 20 D for delivery, DELJET 20 SD with a steel helix and the crush resistant DELJET 20 SD PL with a plastic helix for suction and delivery. ID 19–102 mm, 20 bar.
- Liquefied petroleum gas (LPG) — DELGAS LPG 25 TYPE D, DELGAS LPG 25 TYPE SD. A delivery hose and a suction and delivery hose with a steel helix: conductive inner tube and cover, flame resistant pin pricked cover. ID 13–102 mm, 25 bar.
- Hose reels and layflat lines — DELOIL 18 D REEL, DELOIL 15 LF. DELOIL 18 D REEL is a delivery hose designed for hose reels: ID 19–51 mm, 18 bar. DELOIL 15 LF is a layflat delivery hose that lays flat when empty and is not suitable for suction: ID 76–203 mm, 15 bar.
- Marine engines on leisure boats up to 24 m — DELMARINE FUEL D LL, DELMARINE FUEL 10 D, DELMARINE FUEL 5 SD. Hoses for diesel, biodiesel and petrol with a self-extinguishing cover: DELMARINE FUEL D LL in long coils (ID 6.8–19 mm, up to 3.4 bar), DELMARINE FUEL 10 D for delivery (10 bar) and DELMARINE FUEL 5 SD for suction and delivery (5 bar), ID 19–51 mm.
- Bunkering and dock service — DELOIL BUNKER 15 D, DELOIL BUNKER 20 D, DELOIL BUNKER 27 D, DELOIL DOCK 15 SD. Transfer of crude oil and fuel blends: the delivery hoses DELOIL BUNKER 15 D (ID 51–302 mm), DELOIL BUNKER 20 D and 27 D (ID 76–152 mm) for 15, 20 and 27 bar, and the suction and delivery hose DELOIL DOCK 15 SD (ID 51–302 mm, 15 bar), also suitable for pumping sea water.
- Crude oil offshore and onshore — DELOIL DOCK 20 SD, DELOIL 27 SD HW, DELOIL 40 SD HW. Suction and delivery hoses for crude oil and fuel blends: DELOIL DOCK 20 SD (ID 76–152 mm, 20 bar) and the heavy duty DELOIL 27 SD HW and DELOIL 40 SD HW (ID 102–203 mm, 27 and 40 bar).
- Oil rig services — DELDRILLING MUD 20 D, DELDRILLING MUD 27 D, DELDRILLING MUD 20 D X, DELDRILLING MUD 20 SD. Hoses for drilling muds and crude oil: delivery hoses for 20 and 27 bar, DELDRILLING MUD 20 D X with an X-NBR inner tube for high abrasion resistance, and DELDRILLING MUD 20 SD for suction and delivery. ID 76–152 mm; DELDRILLING MUD 20 D up to 305 mm, DELDRILLING MUD 20 SD up to 254 mm. These hoses are also listed under abrasive hoses.
DELOIL 27 SD HW, DELOIL 40 SD HW and the DELOIL BUNKER, DELOIL DOCK and DELDRILLING MUD hoses have a flame retardant cover that resists sea water, oils and ozone.
Static electricity
DELOIL 10 SD and DELOIL 10 D have a copper wire for grounding; the cover of DELOIL 10 SD is antistatic. In the other series the electrical properties vary — see the construction of each series: the DELJET and DELGAS LPG hoses have a conductive inner tube and cover (R ≤ 10⁶ Ω); DELOIL 10 D LL AS an antistatic inner tube and cover; DELOIL TANKER 10 SD LITE an antistatic inner tube and a copper wire for grounding; DELOIL 16 D, DELOIL 16 SD, DELOIL 27 SD HW, DELOIL 40 SD HW and the DELOIL BUNKER, DELOIL DOCK and DELDRILLING MUD hoses two crossed copper wires for grounding. We can check the electrical continuity of an assembled hose: see non-destructive testing of hose assemblies.
Choosing the size
Match the hose ID to the connection. For inch connections: 1" = 25 mm, 1½" = 38 mm, 2" = 51 mm, 3" = 76 mm, 4" = 102 mm. DELOIL 10 SD and DELOIL 10 D are available in all of these sizes.
Special conditions
- DELOIL ARCTIC −55 °C — tank truck hose for mineral oil products and fuels at extremely low temperatures; retains flexibility at low temperature. Textile cord and steel helix, blue flat corrugated cover. ID 51–102 mm, 10 bar, −55…+90 °C.
- DELOIL +180 °C 15 SD — suction and delivery hose for hot mineral oils, tar and asphalt: FKM inner tube, steel helix, antistatic and flame resistant cover, copper wire for grounding. ID 76–127 mm, 15 bar, −30…+180 °C; the maximum temperature depends on the medium.
Couplings and assembly
For tank trucks and depots, see tank truck and fuel couplings: MK/VK, MEKA and KS safety clamps DIN 2817. We assemble hoses with couplings: see hose crimping and assembly.
See also: Tank truck hoses and couplings: what the line is made of.
Supply
The hoses are supplied in coils — the coil lengths are in the size table of each series — or cut to length. Delivery across Bulgaria and the EU: see delivery.
We will select a hose for your task
Send us the medium, pressure, diameter and length.
