DELOIL 17 SD FC Extra flexible fuel hose, flat corrugated, up to 17 bar
Extremely flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics. Inner diameter 19–152 mm, working pressure up to 17 bar, temperature from −30 to +100 °C.
- Inner diameter
- 19–152 mm
- Working pressure
- up to 17 bar
- Mode
- pressure and suction
- Temperature
- −30…+100 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5, 76, 90, 102, 152
- Working pressure, bar
- 10, 15, 17
- Medium
- Fuel, mineral oil products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+100
- Tube material
- NBR
- Coil length, m
- 40

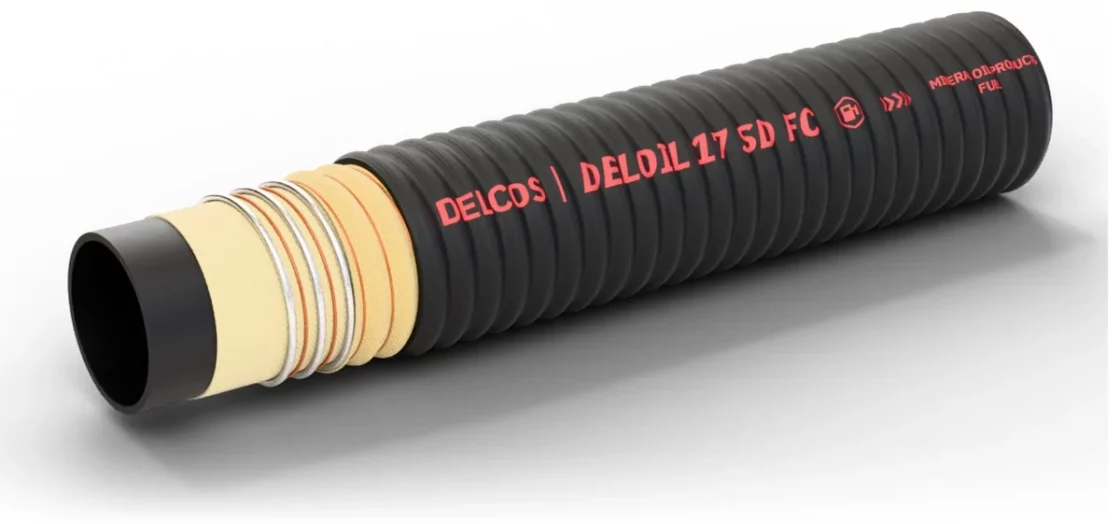

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Chloroprene rubber (CR), black, flat corrugated, cloth impression, antistatic, flame resistant, resistant to abrasion, weathering and oils
- Electrical properties
- Antistatic cover; copper wire for grounding
DELOIL 17 SD FC sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 19 | 710019000 | 17 | 68 | 0.7 | 25 | 0.67 | 40 |
| 25 | 710025000 | 17 | 68 | 0.7 | 30 | 0.84 | 40 |
| 32 | 710032000 | 17 | 68 | 0.7 | 38 | 0.98 | 40 |
| 38 | 710038000 | 17 | 68 | 0.7 | 45 | 1.12 | 40 |
| 51 | 710051000 | 17 | 68 | 0.7 | 60 | 1.48 | 40 |
| 63.5 | 710063000 | 15 | 60 | 0.7 | 74 | 2.2 | 40 |
| 76 | 710076000 | 15 | 60 | 0.7 | 88 | 2.31 | 40 |
| 90 | 710090000 | 15 | 60 | 0.7 | 110 | 3.3 | 40 |
| 102 | 710102000 | 15 | 60 | 0.7 | 130 | 3.96 | 40 |
| 152 | 710152000 | 10 | 40 | 0.7 | 200 | 5.7 | 40 |
Application and limits
- Application
- Extremely flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics.
- Features
- Very flexible, flame resistant cover
- Limits
- Operating temperature from −30 to +100 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
