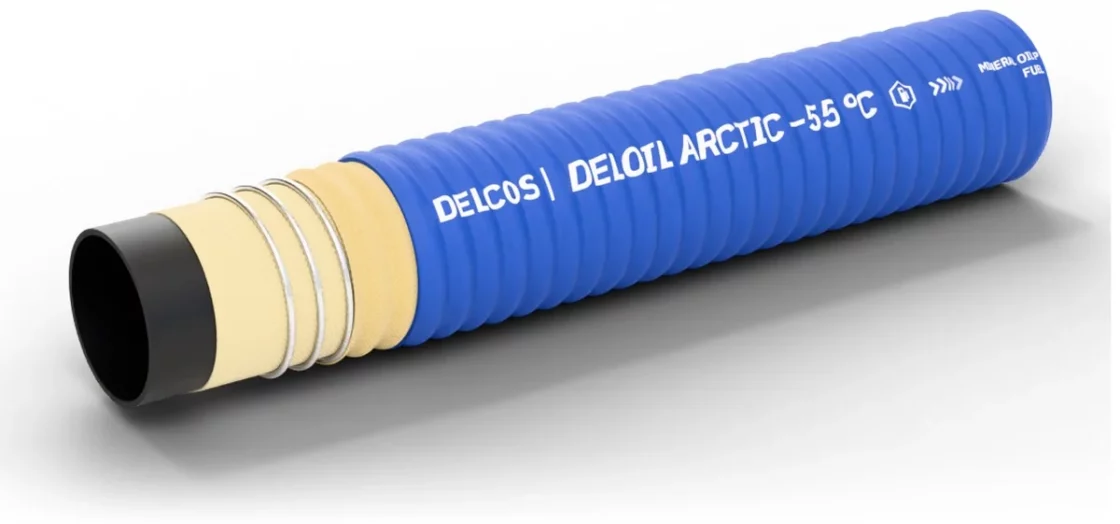

DELOIL ARCTIC −55 °C hose with layers partly removed: inner tube, reinforcement and cover

DELOIL ARCTIC −55 °C Arctic tank truck hose down to −55 °C

Tank truck hose for mineral oil products and fuels at extremely low temperatures, down to −55 °C. Inner diameter 51–102 mm, working pressure up to 10 bar, temperature from −55 to +90 °C.

Inner diameter: 51–102 mm
Working pressure: up to 10 bar
Mode: pressure and suction
Temperature: −55…+90 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 51, 76, 102
Working pressure, bar: 10
Medium: Fuel, mineral oil products
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −55…+90
Tube material: Synthetic rubber
Coil length, m: 20, 40

Construction

Inner tube: Blend of synthetic elastomer compound, black, smooth, oil resistant
Reinforcement: High tensile textile cord, steel helix
Cover: Blend of synthetic elastomer compound, blue, flat corrugated with cloth impression, oil, abrasion, weather and ozone resistant

DELOIL ARCTIC −55 °C sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Wall thickness, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
51	784051064	64	6.5 ± 0.6	10	40	150	1.56	20, 40
76	784076090	90	7 ± 0.6	10	40	190	2.77	20, 40
102	784102118	118	8 ± 0.6	10	40	255	3.89	20, 40

Application and limits

Application: Tank truck hose for mineral oil products and fuels at extremely low temperatures, down to −55 °C.
Features: Retains flexibility at low temperature
Limits: Operating temperature from −55 to +90 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
