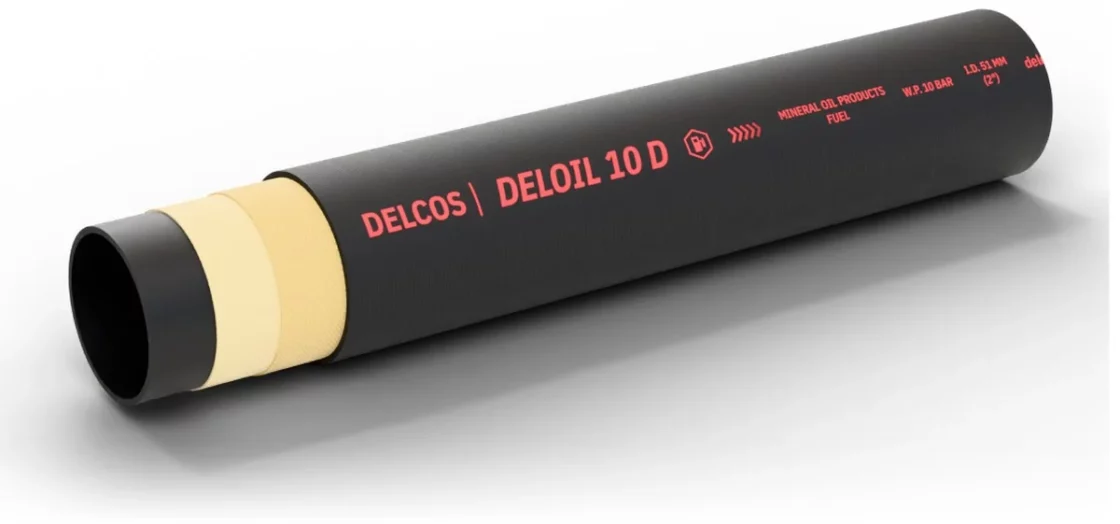

DELOIL 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 10 D Delivery hose for oil products and fuel

Delivery hose for fuels and petroleum products with up to 50 % aromatics. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −30 to +80 °C.

Inner diameter: 19–102 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −30…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 28, 30, 32, 35, 38, 40, 42, 45, 51, 60, 63.5, 76, 102
Working pressure, bar: 10
Medium: Fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+80
Tube material: NBR
Coil length, m: 40, 61

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: SBR/NBR/PVC rubber, black, smooth, cloth impression, resistant to ozone, weathering, oils and fuels
Electrical properties: Copper wire for grounding

DELOIL 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
19	781019029	29	10	30	0.55	40, 61
25	781025035	35	10	30	0.7	40, 61
28	781028038	38	10	30	0.76	40, 61
30	781030040	40	10	30	0.8	40, 61
32	781032042	42	10	30	0.85	40, 61
35	781035045	45	10	30	0.92	40, 61
38	781038048	48	10	30	0.96	40, 61
40	781040051	51	10	30	1.05	40, 61
42	781042053	53	10	30	1.15	40, 61
45	781045056	56	10	30	1.2	40, 61
51	781051062	62	10	30	1.35	40, 61
60	781060072	72	10	30	1.7	40, 61
63.5	781063075	75	10	30	1.8	40, 61
76	781076091	91	10	30	2.56	40, 61
102	781102118	118	10	30	3.6	40, 61

Application and limits

Application: Delivery hose for fuels and petroleum products with up to 50 % aromatics.
Features: Copper wire for grounding
Limits: Operating temperature from −30 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Delivery only: for suction use the SD version.
