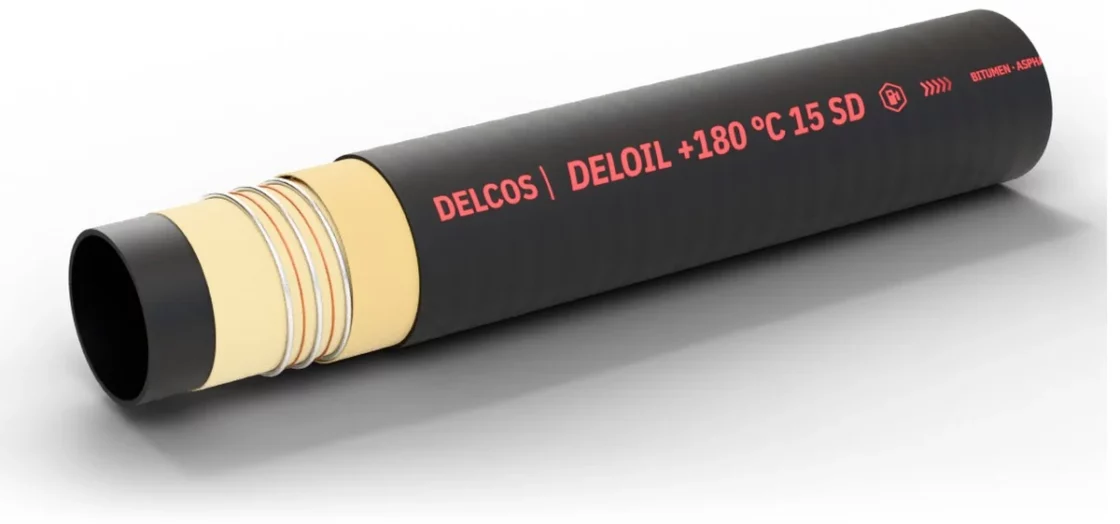

DELOIL +180 °C 15 SD hose with layers partly removed: inner tube, reinforcement and cover

DELOIL +180 °C 15 SD Hose for hot oils and tar up to +180 °C

Suction and delivery hose for hot mineral oils and tar; FKM inner tube, flame resistant cover. Inner diameter 76–127 mm, working pressure up to 15 bar, temperature from −30 to +180 °C.

Inner diameter: 76–127 mm
Working pressure: up to 15 bar
Mode: pressure and suction
Temperature: −30…+180 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 76, 90, 102, 127
Working pressure, bar: 15
Medium: Asphalt, bitumen, mineral oil products
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −30…+180
Tube material: FKM
Coil length, m: 40

Construction

Inner tube: FKM rubber, black, smooth
Reinforcement: High strength synthetic textile plies, steel helix
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, antistatic, flame resistant, resistant to abrasion, weathering and oils
Electrical properties: Antistatic cover; copper wire for grounding

DELOIL +180 °C 15 SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
76	785076095	95	15	45	0.7	450	3.3	40
90	785090109	109	15	45	0.7	540	4	40
102	785102122	122	15	45	0.7	610	4.5	40
127	785127147	147	15	45	0.7	760	6.8	40

Application and limits

Application: Suction and delivery hose for hot mineral oils and tar; FKM inner tube, flame resistant cover.
Features: Flame resistant cover, copper wire for grounding
Limits: Operating temperature from −30 to +180 °C.
The maximum temperature depends on the conveyed medium.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
