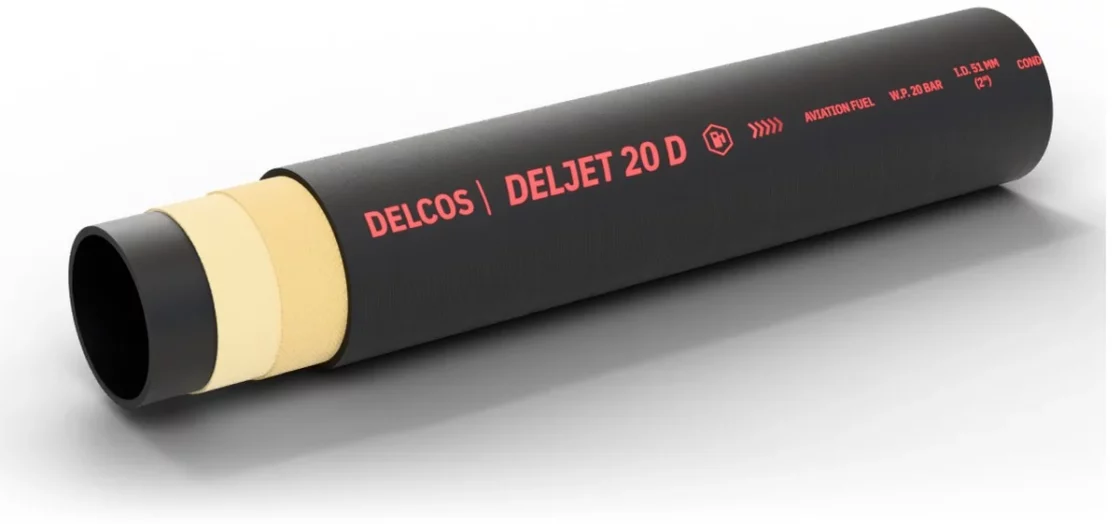

DELJET 20 D hose with layers partly removed: inner tube, reinforcement and cover

DELJET 20 D Conductive aircraft refuelling hose

Delivery hose for aircraft ground refuelling; fuels with up to 50 % aromatics. Conductive inner tube and cover. Inner diameter 19–102 mm, working pressure up to 20 bar, temperature from −30 to +70 °C.

Inner diameter: 19–102 mm
Working pressure: up to 20 bar
Mode: pressure only
Temperature: −30…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 20
Medium: Aviation fuel
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+70
Tube material: NBR
Coil length, m: 40, 61

Construction

Inner tube: NBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to ozone, weathering and chemicals
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); conductive cover (R ≤ 10⁶ Ω)

DELJET 20 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	723019029	29	20	80	113	0.52	40, 61
25	723025038	38	20	80	150	0.84	40, 61
32	723032045	45	20	80	200	1	40, 61
38	723038051	51	20	80	230	1.16	40, 61
51	723051065	65	20	80	305	1.7	40, 61
63.5	723063079	79	20	80	390	2.07	40, 61
76	723076092	92	20	80	460	2.56	40, 61
102	723102120	120	20	80	610	3.74	40, 61

Application and limits

Application: Delivery hose for aircraft ground refuelling; fuels with up to 50 % aromatics. Conductive inner tube and cover.
Features: Flame resistant cover, conductive inner tube
Limits: Operating temperature from −30 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Also available with two copper bonding wires, and as a low temperature version down to −50 °C.
