DELOIL BUNKER 15 D Bunkering hose for oil products, 15 bar
Delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics. Inner diameter 51–302 mm, working pressure up to 15 bar, temperature from −30 to +100 °C.
- Inner diameter
- 51–302 mm
- Working pressure
- up to 15 bar
- Mode
- pressure only
- Temperature
- −30…+100 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 76, 102, 127, 152, 203, 254, 302
- Working pressure, bar
- 15
- Medium
- Crude oil, fuel, mineral oil products
- Mode
- Pressure
- Reinforcement
- Textile cord
- Temperature, °C
- −30…+100
- Tube material
- NBR
- Coil length, m
- 12, 20, 40, 60

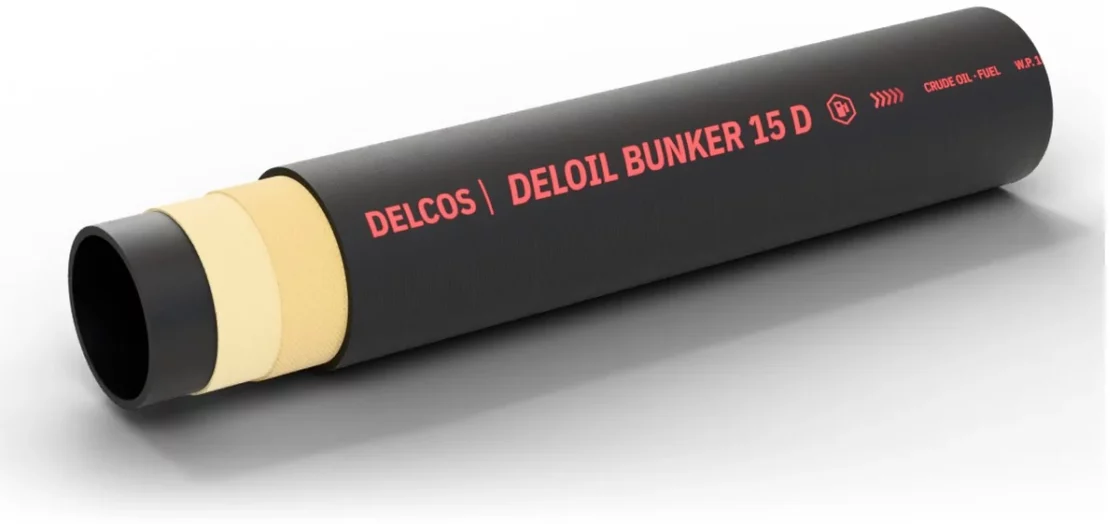

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies
- Cover
- Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, oils, grease and sea water
- Electrical properties
- Two crossed copper wires for grounding
DELOIL BUNKER 15 D sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|
| 51 | 714051066 | 66 | 15 | 60 | 2 | 60 |
| 76 | 714076094 | 94 | 15 | 60 | 4.05 | 60 |
| 102 | 714102118 | 118 | 15 | 60 | 3.8 | 60 |
| 127 | 714127147 | 147 | 15 | 60 | 7.05 | 60 |
| 152 | 714152176 | 176 | 15 | 60 | 8.2 | 60 |
| 203 | 714203230 | 230 | 15 | 60 | 9.7 | 40 |
| 254 | 714254284 | 284 | 15 | 60 | 16.9 | 20 |
| 302 | 714302340 | 340 | 15 | 60 | 18.15 | 12 |
Application and limits
- Application
- Delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics.
- Features
- Two crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
- Limits
- Operating temperature from −30 to +100 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
