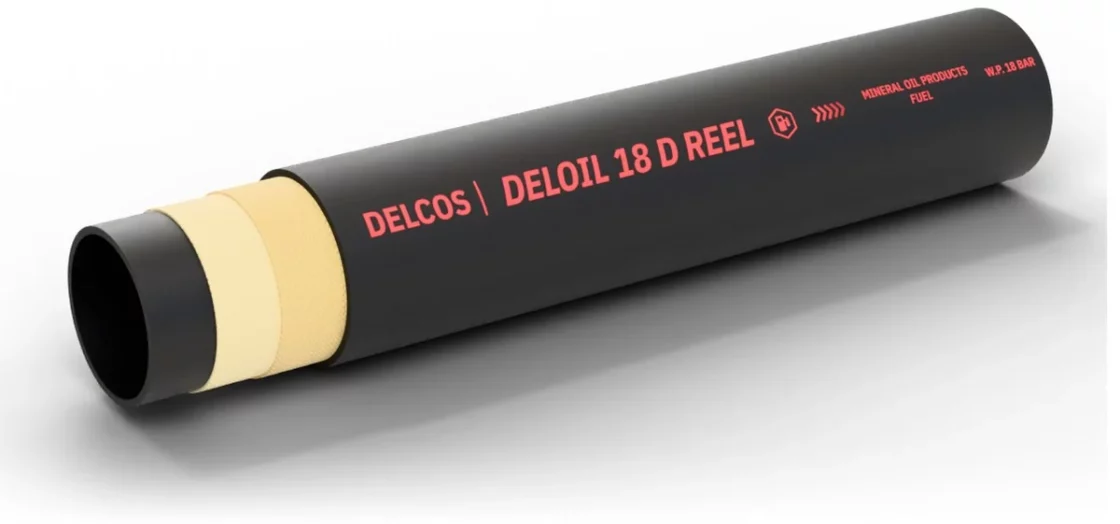

DELOIL 18 D REEL hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 18 D REEL Fuel hose for hose reels, 18 bar

Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics, designed for hose reels. Inner diameter 19–51 mm, working pressure up to 18 bar, temperature from −30 to +80 °C.

Inner diameter: 19–51 mm
Working pressure: up to 18 bar
Mode: pressure only
Temperature: −30…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 40, 45, 50, 51
Working pressure, bar: 18
Medium: Fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+80
Tube material: NBR
Coil length, m: 40, 50, 61

Construction

Inner tube: NBR rubber, black, smooth, hardness 80 ± 5 Shore A
Reinforcement: High strength synthetic textile plies
Cover: NBR rubber, black, smooth, hardness 80 ± 5 Shore A
Electrical properties: Copper wire for grounding

DELOIL 18 D REEL sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	795019032	32	18	54	175	0.7	40, 50, 61
25	795025038	38	18	54	255	0.85	40, 50, 61
32	795032044	44	18	54	330	1	40, 50, 61
38	795038052	52	18	54	380	1.32	40, 50, 61
40	795040054	54	18	54	405	1.38	40, 50, 61
45	795045059	59	18	54	455	1.51	40, 50, 61
50	795050063	63	18	54	510	1.6	40, 50, 61
51	795051064	64	18	54	510	1.63	40, 50, 61

Application and limits

Application: Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics, designed for hose reels.
Features: Copper wire for grounding
Limits: Operating temperature from −30 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
