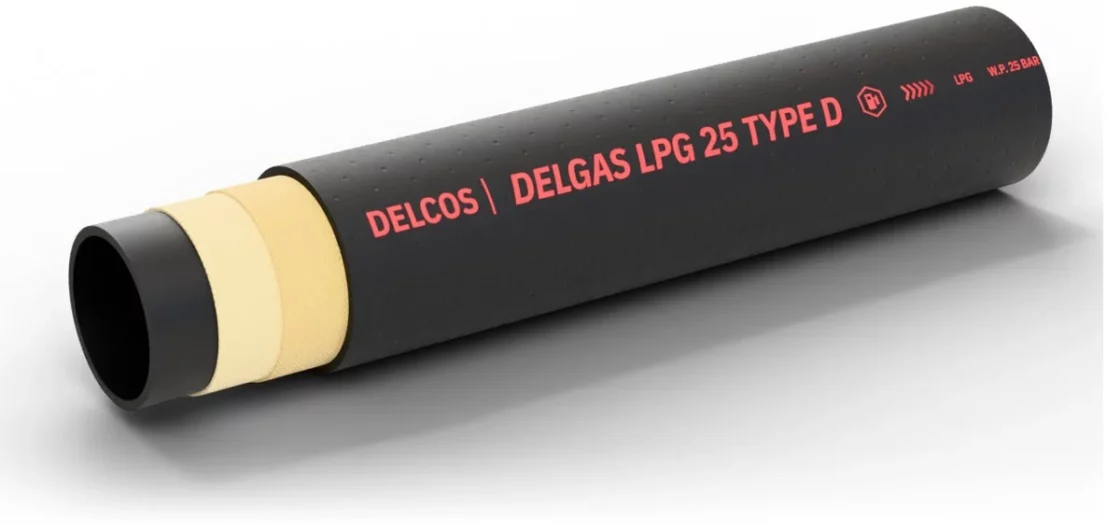

DELGAS LPG 25 TYPE D hose with layers partly removed: inner tube, reinforcement and cover

DELGAS LPG 25 TYPE D LPG delivery hose, 25 bar

Delivery hose for liquefied petroleum gas (LPG); conductive inner tube, flame resistant pin pricked cover. Inner diameter 13–102 mm, working pressure up to 25 bar, temperature from −30 to +70 °C.

Inner diameter: 13–102 mm
Working pressure: up to 25 bar
Mode: pressure only
Temperature: −30…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 16, 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 25
Medium: LPG
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+70
Tube material: NBR
Coil length, m: 40, 45, 50, 61

Construction

Inner tube: NBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, pin pricked, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to abrasion, weathering and oils
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); conductive cover (R ≤ 10⁶ Ω)

DELGAS LPG 25 TYPE D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
13	727013023	23	25	100	100	0.39	40
16	727016026	26	25	100	120	0.47	40
19	727019031	31	25	100	160	0.63	40
25	727025038	38	25	100	200	0.84	40, 45, 50, 61
32	727032045	45	25	100	250	1.05	40, 45, 50, 61
38	727038052	52	25	100	320	1.2	40, 45, 50, 61
51	727051067	67	25	100	400	1.83	40, 45, 50, 61
63.5	727063081	81	25	100	550	2.5	40, 61
76	727076094	94	25	100	650	3.02	40, 61
102	727102120	120	25	100	800	3.86	40, 61

Application and limits

Application: Delivery hose for liquefied petroleum gas (LPG); conductive inner tube, flame resistant pin pricked cover.
Features: Flame resistant cover, conductive inner tube
Limits: Operating temperature from −30 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
