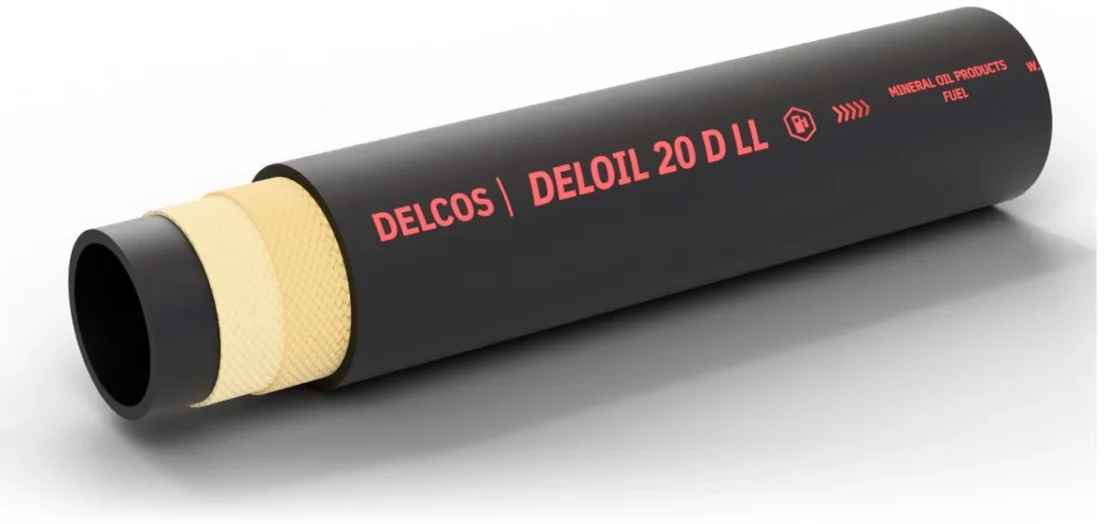

DELOIL 20 D LL hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 20 D LL Fuel and oil hose in long coils, 20 bar

Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; compatible with diesel B7 and biodiesel up to 100 %. Inner diameter 5–25 mm, working pressure up to 20 bar, temperature from −25 to +80 °C.

Inner diameter: 5–25 mm
Working pressure: up to 20 bar
Mode: pressure only
Temperature: −25…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 5, 6, 8, 10, 13, 16, 19, 25
Working pressure, bar: 20
Medium: Biodiesel, fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −25…+80
Tube material: NBR
Coil length, m: 50, 100

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: NBR/PVC rubber, black, smooth, resistant to ozone, weathering, oils and fuels

DELOIL 20 D LL sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
5	786005013	13	20	60	40	0.09	100
6	786006014	14	20	60	50	0.15	100
8	786008015	15	20	60	60	0.17	100
8	786008017	17	20	60	65	0.18	100
10	786010017	17	20	60	75	0.2	100
10	786010019	19	20	60	80	0.22	100
13	786013021	21	20	60	95	0.25	50
13	786013023	23	20	60	105	0.27	50
16	786016026	26	20	60	120	0.35	50
19	786019029	29	20	60	140	0.4	50
19	786019030	30	20	60	145	0.42	50
25	786025036	36	20	60	200	0.64	50

Application and limits

Application: Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; compatible with diesel B7 and biodiesel up to 100 %.
Features: Supplied in long coils
Limits: Operating temperature from −25 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
