DELOIL 10 D
Delivery hose for oil products and fuel
ID 19–102 mm · up to 10 bar
DELOIL 10 SD GR Flexible fuel suction and delivery hose, helix grooved cover
Very flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −30 to +80 °C.
- Inner diameter
- 19–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −30…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 30, 32, 38, 40, 45, 51, 60, 63.5, 76, 102
- Working pressure, bar
- 10
- Medium
- Fuel, mineral oil products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+80
- Tube material
- NBR
- Coil length, m
- 40

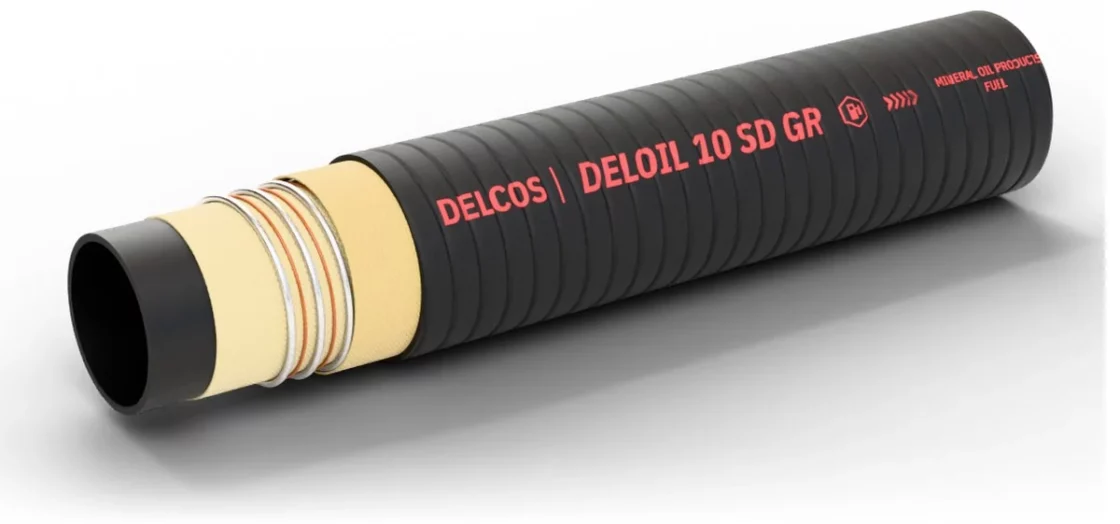

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- SBR/NBR/PVC rubber, black, helix grooved, cloth impression, antistatic, resistant to abrasion, weathering and oils
- Electrical properties
- Antistatic cover; copper wire for grounding
DELOIL 10 SD GR sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 19 | 796019000 | 10 | 30 | 0.9 | 57 | 0.6 | 40 |
| 25 | 796025000 | 10 | 30 | 0.9 | 75 | 0.78 | 40 |
| 30 | 796030000 | 10 | 30 | 0.9 | 90 | 0.92 | 40 |
| 32 | 796032000 | 10 | 30 | 0.9 | 96 | 1 | 40 |
| 38 | 796038000 | 10 | 30 | 0.9 | 114 | 1.24 | 40 |
| 40 | 796040000 | 10 | 30 | 0.9 | 120 | 1.28 | 40 |
| 45 | 796045000 | 10 | 30 | 0.9 | 135 | 1.47 | 40 |
| 51 | 796051000 | 10 | 30 | 0.9 | 153 | 1.57 | 40 |
| 60 | 796060000 | 10 | 30 | 0.9 | 270 | 1.7 | 40 |
| 63.5 | 796063000 | 10 | 30 | 0.7 | 285 | 1.8 | 40 |
| 76 | 796076000 | 10 | 30 | 0.7 | 340 | 3 | 40 |
| 102 | 796102000 | 10 | 30 | 0.7 | 450 | 4.2 | 40 |
Application and limits
- Application
- Very flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics.
- Features
- Very flexible, copper wire for grounding, vacuum resistant
- Limits
- Operating temperature from −30 to +80 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
