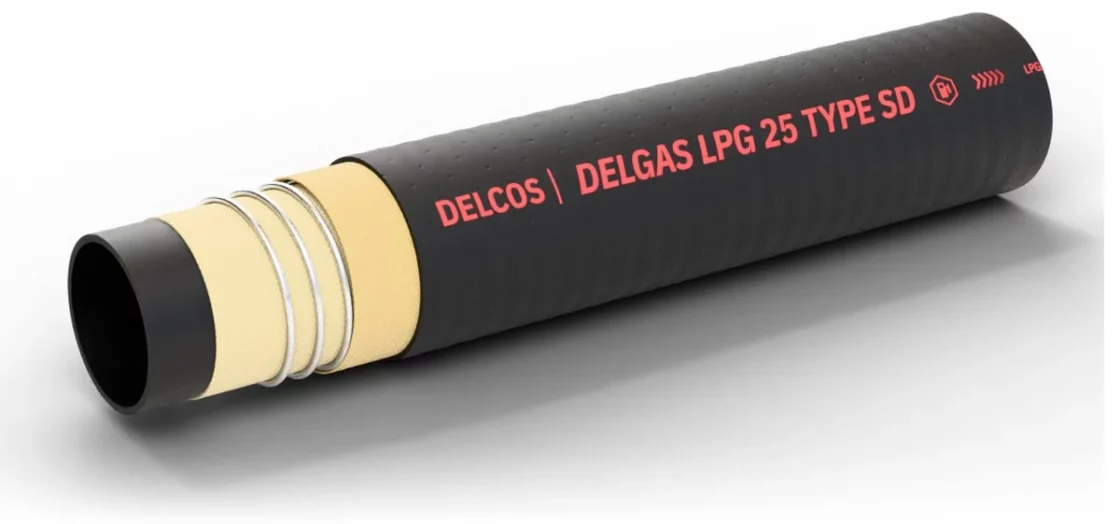

DELGAS LPG 25 TYPE SD hose with layers partly removed: inner tube, reinforcement and cover

DELGAS LPG 25 TYPE SD LPG suction and delivery hose, 25 bar

Suction and delivery hose for liquefied petroleum gas (LPG); conductive inner tube, flame resistant pin pricked cover. Inner diameter 13–102 mm, working pressure up to 25 bar, temperature from −30 to +70 °C.

Inner diameter: 13–102 mm
Working pressure: up to 25 bar
Mode: pressure and suction
Temperature: −30…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 16, 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 25
Medium: LPG
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −30…+70
Tube material: NBR
Coil length, m: 40, 45, 50, 61

Construction

Inner tube: NBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies, steel helix
Cover: Chloroprene rubber (CR), black, smooth, pin pricked, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to abrasion, weathering and oils
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); conductive cover (R ≤ 10⁶ Ω)

DELGAS LPG 25 TYPE SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
13	728013023	23	25	100	0.9	55	0.44	40
16	728016026	26	25	100	0.9	75	0.52	40
19	728019031	31	25	100	0.9	100	0.68	40
25	728025038	38	25	100	0.9	140	0.9	40, 45, 50, 61
32	728032045	45	25	100	0.9	190	1.18	40, 45, 50, 61
38	728038052	52	25	100	0.9	200	1.5	40, 45, 50, 61
51	728051067	67	25	100	0.9	280	2.2	40, 45, 50, 61
63.5	728063081	81	25	100	0.7	380	2.9	40, 61
76	728076094	94	25	100	0.7	460	3.58	40, 61
102	728102120	120	25	100	0.7	625	4.56	40, 61

Application and limits

Application: Suction and delivery hose for liquefied petroleum gas (LPG); conductive inner tube, flame resistant pin pricked cover.
Features: Flame resistant cover, conductive inner tube, vacuum resistant
Limits: Operating temperature from −30 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
