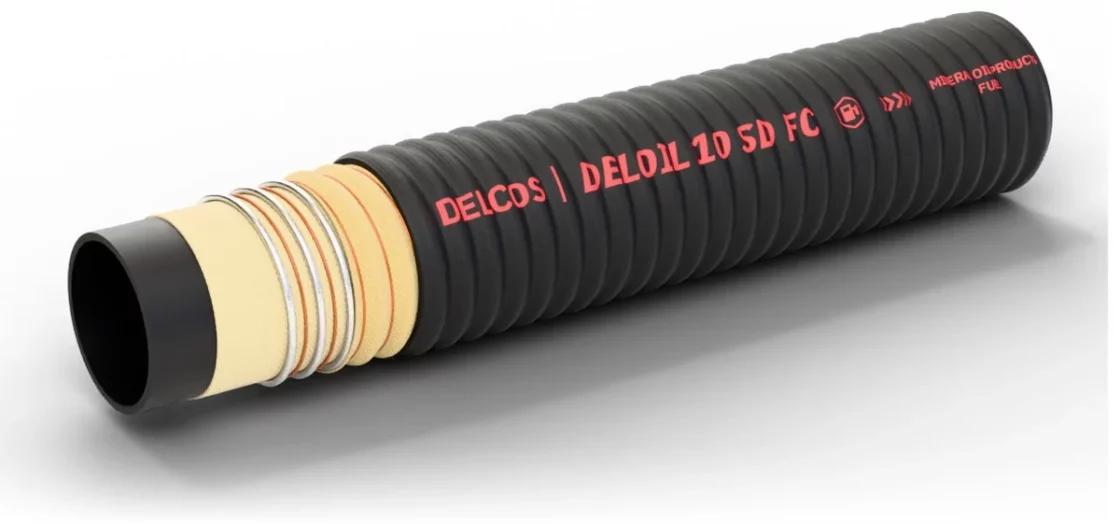

DELOIL 10 SD FC hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 10 SD FC Extra flexible fuel hose, flat corrugated, 10 bar

Extremely flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −30 to +100 °C.

Inner diameter: 19–102 mm
Working pressure: up to 10 bar
Mode: pressure and suction
Temperature: −30…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 22, 25, 28, 32, 35, 38, 42, 45, 50, 51, 63.5, 76, 80, 90, 102
Working pressure, bar: 10
Medium: Fuel, mineral oil products
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −30…+100
Tube material: NBR
Coil length, m: 40

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies, two steel helices
Cover: Chloroprene rubber (CR), black, flat corrugated, cloth impression, antistatic, flame resistant, resistant to abrasion, weathering and oils
Electrical properties: Antistatic cover; copper wire for grounding

DELOIL 10 SD FC sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	799019000	10	40	0.7	20	0.4	40
22	799022000	10	40	0.7	25	0.46	40
25	799025000	10	40	0.7	30	0.7	40
28	799028000	10	40	0.7	40	0.75	40
32	799032000	10	40	0.7	40	0.82	40
35	799035000	10	40	0.7	40	0.96	40
38	799038000	10	40	0.7	45	1	40
42	799042000	10	40	0.7	45	1.13	40
45	799045000	10	40	0.7	55	1.22	40
50	799050000	10	40	0.7	60	1.3	40
51	799051000	10	40	0.7	60	1.34	40
63.5	799063000	10	40	0.7	85	2	40
76	799076000	10	40	0.7	90	2.1	40
80	799080000	10	40	0.7	100	2.7	40
90	799090000	10	40	0.7	100	3	40
102	799102000	10	40	0.7	120	3.6	40

Application and limits

Application: Extremely flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics.
Features: Very flexible, flame resistant cover
Limits: Operating temperature from −30 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
