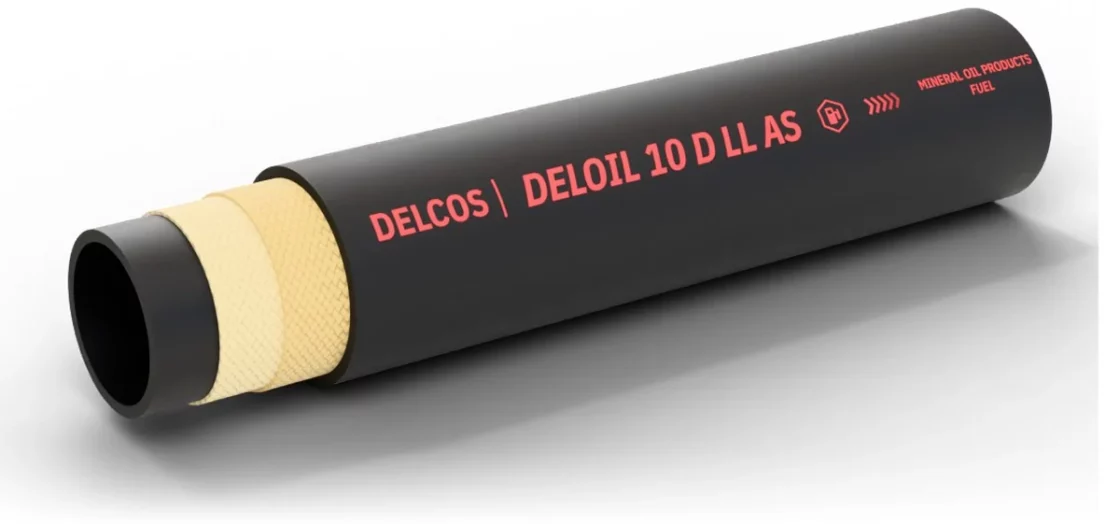

DELOIL 10 D LL AS hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 10 D LL AS Antistatic fuel hose in long coils, down to −40 °C

Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; very good resistance to E10 petrol; compatible with diesel B7 and biodiesel blends up to 30 %. Inner diameter 4–25 mm, working pressure up to 10 bar, temperature from −40 to +100 °C.

Inner diameter: 4–25 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 4, 5, 6, 7, 8, 10, 13, 15, 19, 25
Working pressure, bar: 10
Medium: Biodiesel, fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+100
Tube material: NBR
Coil length, m: 50, 100

Construction

Inner tube: NBR rubber, black, smooth, antistatic (R ≤ 1 MΩ)
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, antistatic (R ≤ 1 MΩ), resistant to ozone, weathering, oils and fuels
Electrical properties: Antistatic inner tube; antistatic cover

DELOIL 10 D LL AS sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
4	783004010	10	10	30	40	0.1	100
5	783005012	12	10	30	40	0.12	100
6	783006013	13	10	30	50	0.14	100
7	783007013	13	10	30	60	0.13	100
8	783008015	15	10	30	65	0.17	100
10	783010017	17	10	30	80	0.2	100
13	783013020	20	10	30	105	0.24	50
15	783015023	23	10	30	120	0.32	50
19	783019027	27	10	30	150	0.37	50
25	783025035	35	10	30	200	0.61	50

Application and limits

Application: Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; very good resistance to E10 petrol; compatible with diesel B7 and biodiesel blends up to 30 %.
Features: Supplied in long coils, antistatic inner tube and cover
Limits: Operating temperature from −40 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
