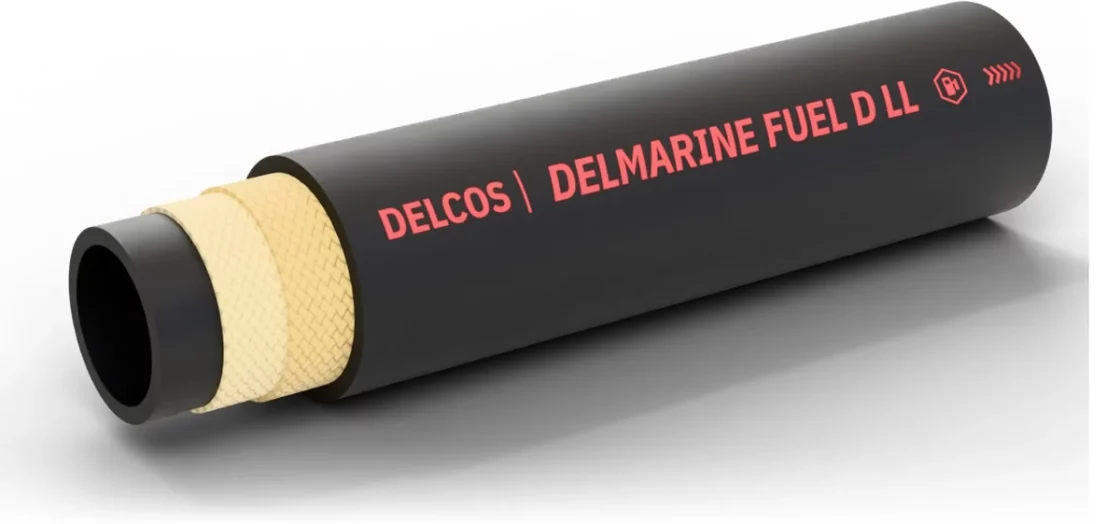

DELMARINE FUEL D LL hose with layers partly removed: inner tube, reinforcement and cover

DELMARINE FUEL D LL Marine fuel hose for leisure boats, long coils

Fuel line for diesel, biodiesel and petrol to marine engines on leisure boats up to 24 m; supplied in long coils. Inner diameter 6.8–19 mm, working pressure up to 3.4 bar, temperature from −20 to +100 °C.

Inner diameter: 6.8–19 mm
Working pressure: up to 3.4 bar
Mode: pressure only
Temperature: −20…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 6.8, 8, 10, 12, 16, 19
Working pressure, bar: 2.5, 3.4
Medium: Biodiesel, fuel
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −20…+100
Tube material: NBR
Coil length, m: 50, 100

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, self-extinguishing, resistant to weathering, fuels and heat

DELMARINE FUEL D LL sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
6.8	680006016	16	3.4	14	0.26	100
8	680008018	18	3.4	14	0.28	100
10	680010021	21	3.4	14	0.37	100
12	680012022	22	2.5	10	0.47	100
16	680016027	27	2.5	10	0.55	50
19	680019030	30	2.5	10	0.65	50

Application and limits

Application: Fuel line for diesel, biodiesel and petrol to marine engines on leisure boats up to 24 m; supplied in long coils.
Features: Self-extinguishing cover, supplied in long coils
Limits: Operating temperature from −20 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
For leisure boats up to 24 m long.
