DELOIL DOCK 15 SD Dock suction and delivery hose for oil products, 15 bar
Suction and delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics; also suitable for pumping sea water. Inner diameter 51–302 mm, working pressure up to 15 bar, temperature from −30 to +100 °C.
- Inner diameter
- 51–302 mm
- Working pressure
- up to 15 bar
- Mode
- pressure and suction
- Temperature
- −30…+100 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 63.5, 76, 102, 127, 152, 203, 254, 302
- Working pressure, bar
- 15
- Medium
- Crude oil, fuel, mineral oil products, sea water
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+100
- Tube material
- NBR
- Coil length, m
- 12, 20, 40, 60

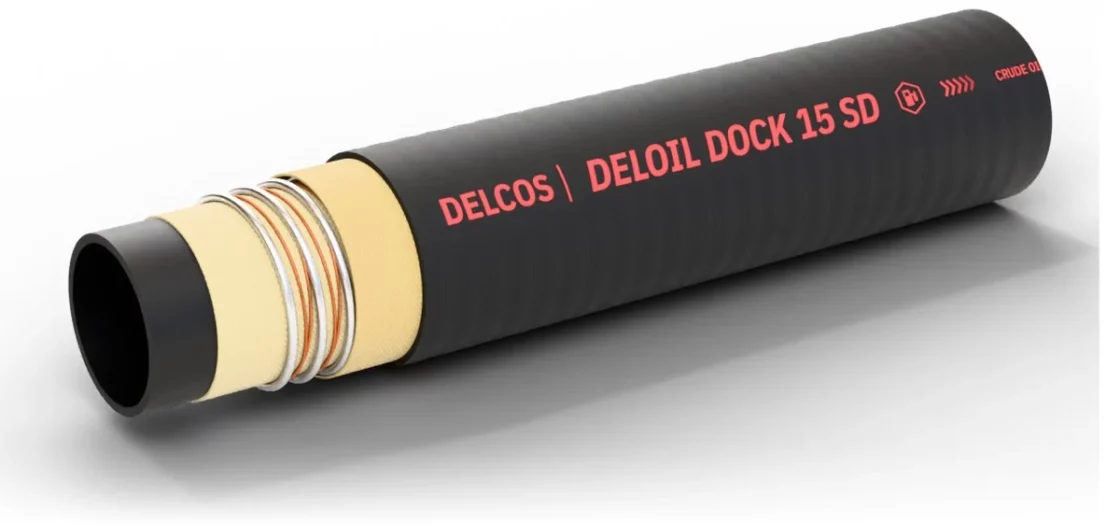

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, oils, grease and sea water
- Electrical properties
- Two crossed copper wires for grounding
DELOIL DOCK 15 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 51 | 717051071 | 71 | 15 | 60 | 0.9 | 230 | 2.75 | 60 |
| 63.5 | 717063084 | 84 | 15 | 60 | 0.9 | 315 | 3.3 | 60 |
| 76 | 717076097 | 97 | 15 | 60 | 0.9 | 380 | 4 | 60 |
| 102 | 717102123 | 123 | 15 | 60 | 0.9 | 510 | 5.3 | 60 |
| 127 | 717127157 | 157 | 15 | 60 | 0.9 | 635 | 7.35 | 60 |
| 152 | 717152175 | 175 | 15 | 60 | 0.7 | 760 | 8.7 | 60 |
| 203 | 717203230 | 230 | 15 | 60 | 0.7 | 1220 | 15.2 | 40 |
| 254 | 717254290 | 290 | 15 | 60 | 0.7 | 1524 | 22.1 | 20 |
| 302 | 717302350 | 350 | 15 | 60 | 0.7 | 1812 | 35 | 12 |
Application and limits
- Application
- Suction and delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics; also suitable for pumping sea water.
- Features
- Two crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
- Limits
- Operating temperature from −30 to +100 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
