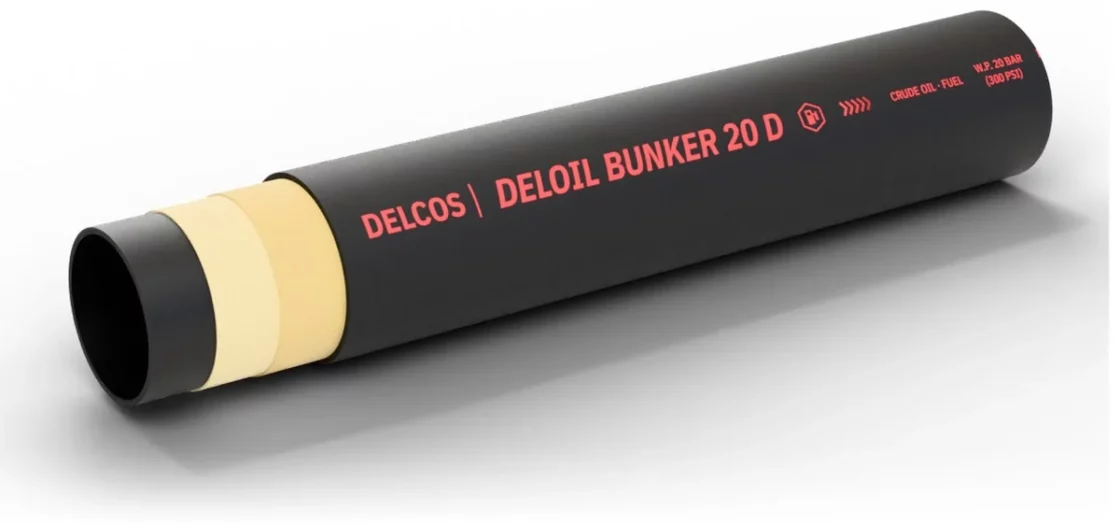

DELOIL BUNKER 20 D hose with layers partly removed: inner tube, reinforcement and cover

DELOIL BUNKER 20 D Bunkering hose for oil products, 20 bar

Delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics, working pressure 20 bar. Inner diameter 76–152 mm, working pressure up to 20 bar, temperature from −20 to +80 °C.

Inner diameter: 76–152 mm
Working pressure: up to 20 bar
Mode: pressure only
Temperature: −20…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 76, 102, 127, 152
Working pressure, bar: 20
Medium: Crude oil, fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −20…+80
Tube material: NBR
Coil length, m: 60

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, antistatic, resistant to ozone, oils, grease and sea water
Electrical properties: Antistatic cover; two crossed copper wires for grounding

DELOIL BUNKER 20 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
76	715076092	92	20	80	3.6	60
102	715102118	118	20	80	4.77	60
127	715127145	145	20	80	7.4	60
152	715152178	178	20	80	8.98	60

Application and limits

Application: Delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics, working pressure 20 bar.
Features: Antistatic cover, two crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
Limits: Operating temperature from −20 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
