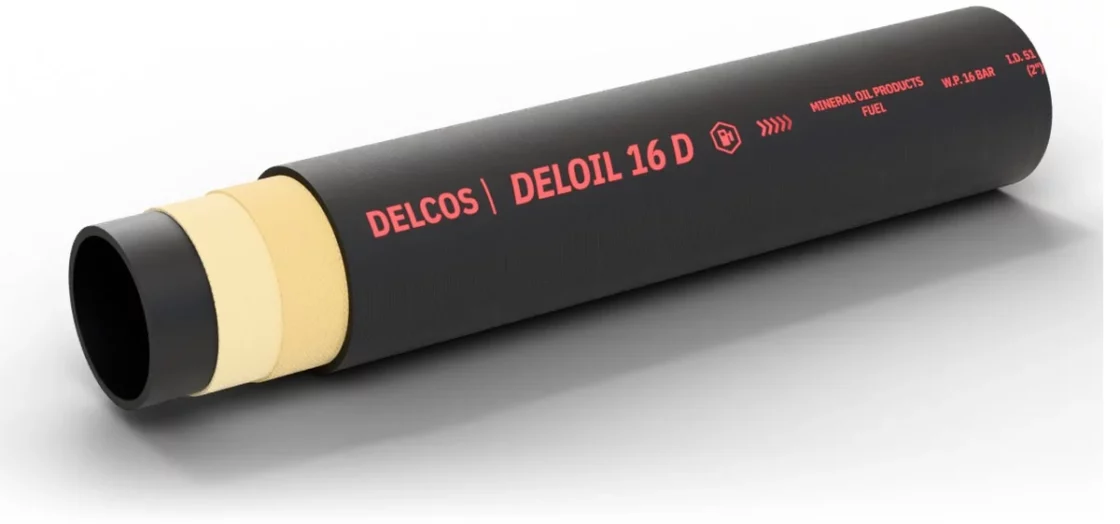

DELOIL 16 D hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 16 D Tank truck delivery hose for fuels, 16 bar

Delivery hose for fuels and petroleum products with up to 50 % aromatics, for road tankers and fuel distribution. Inner diameter 19–152 mm, working pressure up to 16 bar, temperature from −30 to +70 °C.

Inner diameter: 19–152 mm
Working pressure: up to 16 bar
Mode: pressure only
Temperature: −30…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102, 127, 152
Working pressure, bar: 16
Medium: Fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+70
Tube material: NBR
Coil length, m: 40, 61

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, antistatic, flame resistant, resistant to ozone, weathering and chemicals
Electrical properties: Antistatic cover; two crossed copper wires for grounding

DELOIL 16 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	791019031	31	16	48	125	0.63	40, 61
25	791025037	37	16	48	150	0.73	40, 61
32	791032044	44	16	48	175	0.94	40, 61
38	791038051	51	16	48	225	1.19	40, 61
51	791051067	67	16	48	275	2	40, 61
63.5	791063079	79	16	48	300	2.24	40, 61
76	791076092	92	16	48	350	2.73	40, 61
102	791102118	118	16	48	450	3.7	40, 61
127	791127145	145	16	48	635	4.82	40, 61
152	791152172	172	16	48	750	6.14	40, 61

Application and limits

Application: Delivery hose for fuels and petroleum products with up to 50 % aromatics, for road tankers and fuel distribution.
Features: Flame resistant cover, two crossed copper wires for grounding
Limits: Operating temperature from −30 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
A version with a conductive inner tube is available for ID 19–102 mm.
