DELMARINE FUEL 5 SD Marine fuel suction and delivery hose for leisure boats
Suction and delivery hose for diesel, biodiesel and petrol for marine engines on leisure boats up to 24 m. Inner diameter 19–51 mm, working pressure up to 5 bar, temperature from −20 to +100 °C.
- Inner diameter
- 19–51 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −20…+100 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 20, 25, 30, 32, 38, 51
- Working pressure, bar
- 5
- Medium
- Biodiesel, fuel
- Mode
- Pressure and suction
- Reinforcement
- Textile cord
- Temperature, °C
- −20…+100
- Tube material
- NBR
- Coil length, m
- 40, 61

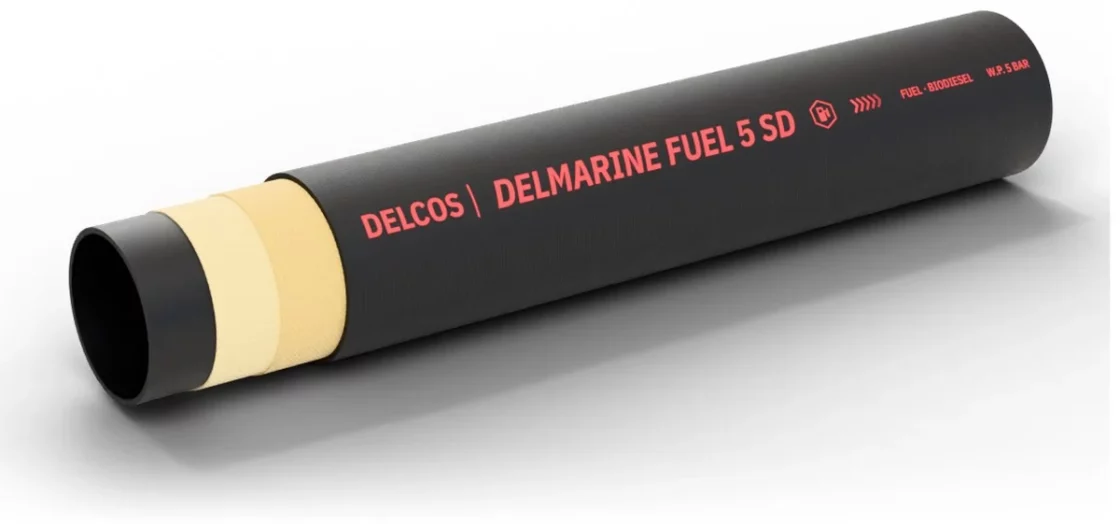

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies
- Cover
- Chloroprene rubber (CR), black, smooth, cloth impression, self-extinguishing, resistant to weathering, fuels and heat
- Electrical properties
- Copper wire for grounding
DELMARINE FUEL 5 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 19 | 682019029 | 29 | 5 | 15 | 0.9 | 70 | 0.64 | 40 |
| 20 | 682020030 | 30 | 5 | 15 | 0.9 | 75 | 0.68 | 40, 61 |
| 25 | 682025035 | 35 | 5 | 15 | 0.9 | 95 | 0.8 | 40, 61 |
| 30 | 682030040 | 40 | 5 | 15 | 0.9 | 115 | 0.96 | 40, 61 |
| 32 | 682032042 | 42 | 5 | 15 | 0.9 | 125 | 0.98 | 40, 61 |
| 38 | 682038048 | 48 | 5 | 15 | 0.9 | 150 | 1.14 | 40, 61 |
| 51 | 682051061 | 61 | 5 | 15 | 0.9 | 210 | 1.5 | 40, 61 |
Application and limits
- Application
- Suction and delivery hose for diesel, biodiesel and petrol for marine engines on leisure boats up to 24 m.
- Features
- Self-extinguishing cover, copper wire for grounding
- Limits
- Operating temperature from −20 to +100 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
- For leisure boats up to 24 m long.
