DELOIL DOCK 20 SD Suction and delivery hose for crude oil, 20 bar
Suction and delivery hose for crude oil and fuel blends with up to 50 % aromatics in offshore and onshore operations. Inner diameter 76–152 mm, working pressure up to 20 bar, temperature from −20 to +80 °C.
- Inner diameter
- 76–152 mm
- Working pressure
- up to 20 bar
- Mode
- pressure and suction
- Temperature
- −20…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 76, 102, 127, 152
- Working pressure, bar
- 20
- Medium
- Crude oil, fuel, mineral oil products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −20…+80
- Tube material
- NBR
- Coil length, m
- 60

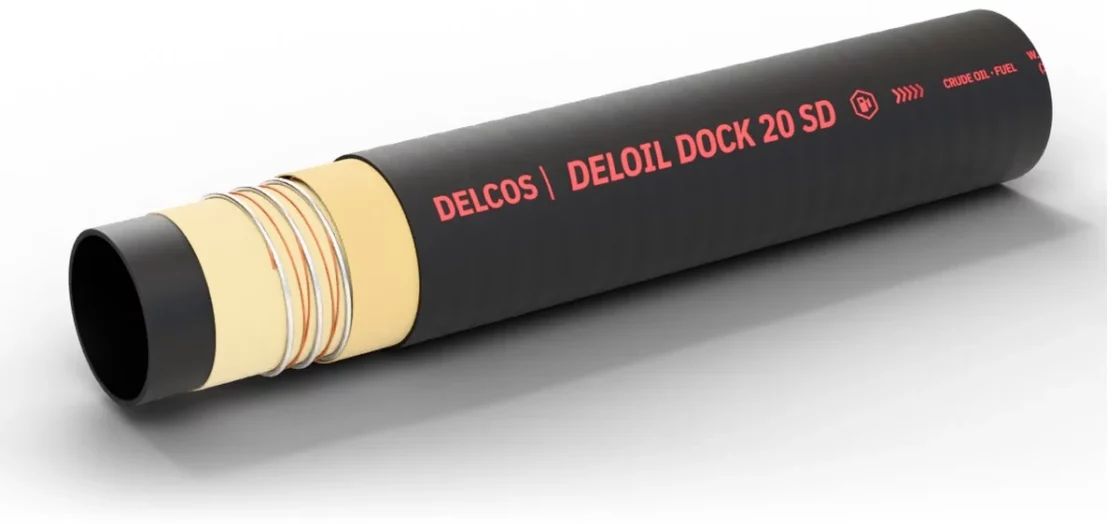

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Chloroprene rubber (CR), black, smooth, cloth impression, antistatic, resistant to ozone, oils, grease and sea water
- Electrical properties
- Antistatic cover; two crossed copper wires for grounding
DELOIL DOCK 20 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 76 | 712076095 | 95 | 20 | 80 | 0.9 | 470 | 3.9 | 60 |
| 102 | 712102122 | 122 | 20 | 80 | 0.9 | 630 | 4.9 | 60 |
| 127 | 712127151 | 151 | 20 | 80 | 0.9 | 760 | 7.2 | 60 |
| 152 | 712152181 | 181 | 20 | 80 | 0.7 | 1050 | 10.9 | 60 |
Application and limits
- Application
- Suction and delivery hose for crude oil and fuel blends with up to 50 % aromatics in offshore and onshore operations.
- Features
- Antistatic cover, two crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
- Limits
- Operating temperature from −20 to +80 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
