DELOIL 27 SD HW Heavy duty suction and delivery hose for crude oil, 27 bar
Suction and delivery hose for crude oil and fuel blends with up to 50 % aromatics in offshore and onshore operations, working pressure 27 bar. Inner diameter 102–203 mm, working pressure up to 27 bar, temperature from −30 to +100 °C.
- Inner diameter
- 102–203 mm
- Working pressure
- up to 27 bar
- Mode
- pressure and suction
- Temperature
- −30…+100 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 102, 127, 152, 203
- Working pressure, bar
- 27
- Medium
- Crude oil, fuel, mineral oil products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+100
- Tube material
- NBR
- Coil length, m
- 40, 60

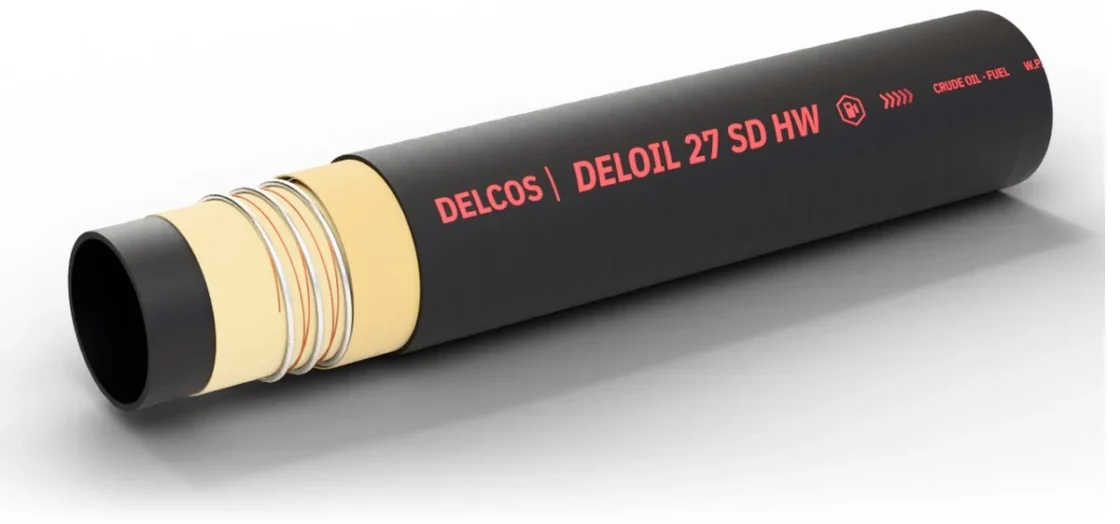

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, oils, grease and sea water
- Electrical properties
- Two crossed copper wires for grounding
DELOIL 27 SD HW sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 102 | 713102132 | 132 | 27 | 108 | 0.9 | 650 | 7.5 | 60 |
| 127 | 713127158 | 158 | 27 | 108 | 0.9 | 780 | 9.7 | 60 |
| 152 | 713152182 | 182 | 27 | 108 | 0.7 | 1215 | 14.35 | 60 |
| 203 | 713203235 | 235 | 27 | 81 | 0.7 | 1650 | 21.37 | 40 |
Application and limits
- Application
- Suction and delivery hose for crude oil and fuel blends with up to 50 % aromatics in offshore and onshore operations, working pressure 27 bar.
- Features
- Two crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
- Limits
- Operating temperature from −30 to +100 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
