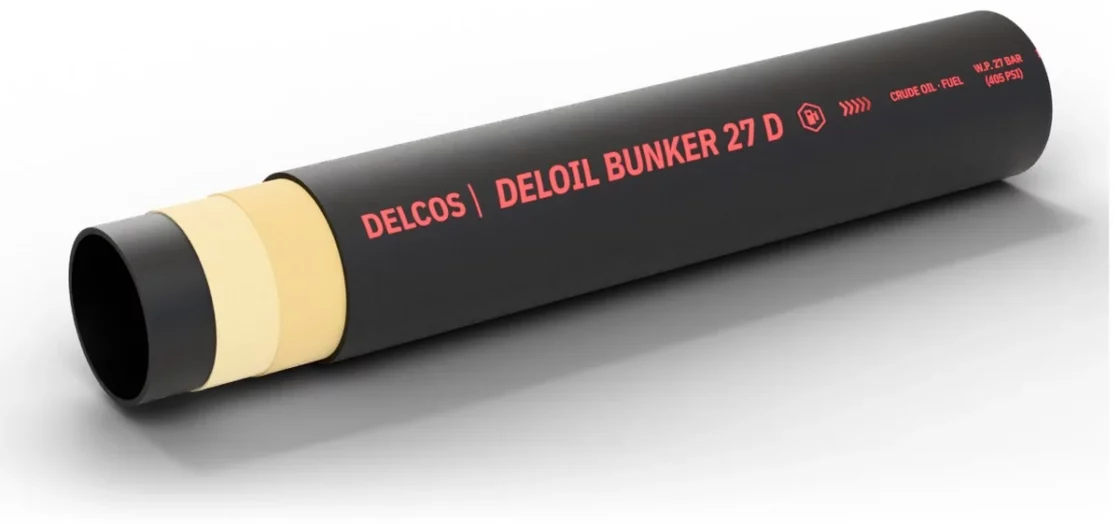

DELOIL BUNKER 27 D hose with layers partly removed: inner tube, reinforcement and cover

DELOIL BUNKER 27 D Bunkering hose for oil products, 27 bar

Delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics, working pressure 27 bar. Inner diameter 76–152 mm, working pressure up to 27 bar, temperature from −20 to +80 °C.

Inner diameter: 76–152 mm
Working pressure: up to 27 bar
Mode: pressure only
Temperature: −20…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 76, 102, 127, 152
Working pressure, bar: 27
Medium: Crude oil, fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −20…+80
Tube material: NBR
Coil length, m: 60

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, antistatic, resistant to ozone, oils, grease and sea water
Electrical properties: Antistatic cover; two crossed copper wires for grounding

DELOIL BUNKER 27 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
76	716076092	92	27	108	3.65	60
102	716102126	126	27	108	6.2	60
127	716127151	151	27	108	7.85	60
152	716152182	182	27	108	10.37	60

Application and limits

Application: Delivery hose for bunkering and dock service: transfer of crude oil and fuel blends with up to 50 % aromatics, working pressure 27 bar.
Features: Antistatic cover, two crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
Limits: Operating temperature from −20 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
