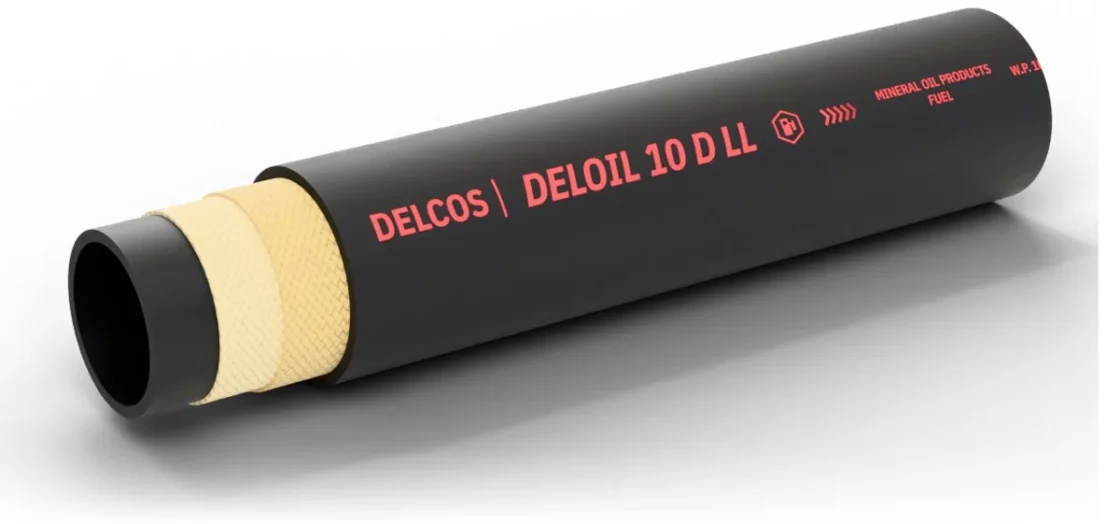

DELOIL 10 D LL hose with layers partly removed: inner tube, reinforcement and cover

DELOIL 10 D LL Fuel and oil hose in long coils

Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; compatible with diesel B7 and biodiesel blends up to 30 %. Inner diameter 4–25 mm, working pressure up to 10 bar, temperature from −25 to +80 °C.

Inner diameter: 4–25 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −25…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 4, 5, 6, 7, 8, 10, 13, 15, 19, 25
Working pressure, bar: 10
Medium: Biodiesel, fuel, mineral oil products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −25…+80
Tube material: NBR
Coil length, m: 50, 100

Construction

Inner tube: NBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: NBR/PVC rubber, black, smooth, resistant to ozone, weathering, oils and fuels

DELOIL 10 D LL sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
4	782004010	10	10	30	40	0.1	100
5	782005012	12	10	30	40	0.12	100
6	782006013	13	10	30	50	0.13	100
7	782007014	14	10	30	60	0.14	100
8	782008015	15	10	30	65	0.17	100
10	782010017	17	10	30	80	0.2	100
13	782013020	20	10	30	105	0.24	50
15	782015023	23	10	30	120	0.32	50
19	782019027	27	10	30	150	0.39	50
25	782025035	35	10	30	200	0.63	50

Application and limits

Application: Delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; compatible with diesel B7 and biodiesel blends up to 30 %.
Features: Supplied in long coils
Limits: Operating temperature from −25 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
