DELOIL 5 SD CR Corrugated fuel suction and delivery hose
Extremely flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics. Inner diameter 19–102 mm, working pressure up to 5 bar, temperature from −30 to +100 °C.
- Inner diameter
- 19–102 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −30…+100 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 22, 25, 28, 32, 35, 38, 42, 45, 50, 51, 63.5, 76, 80, 90, 102
- Working pressure, bar
- 5
- Medium
- Fuel, mineral oil products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+100
- Tube material
- NBR
- Coil length, m
- 40

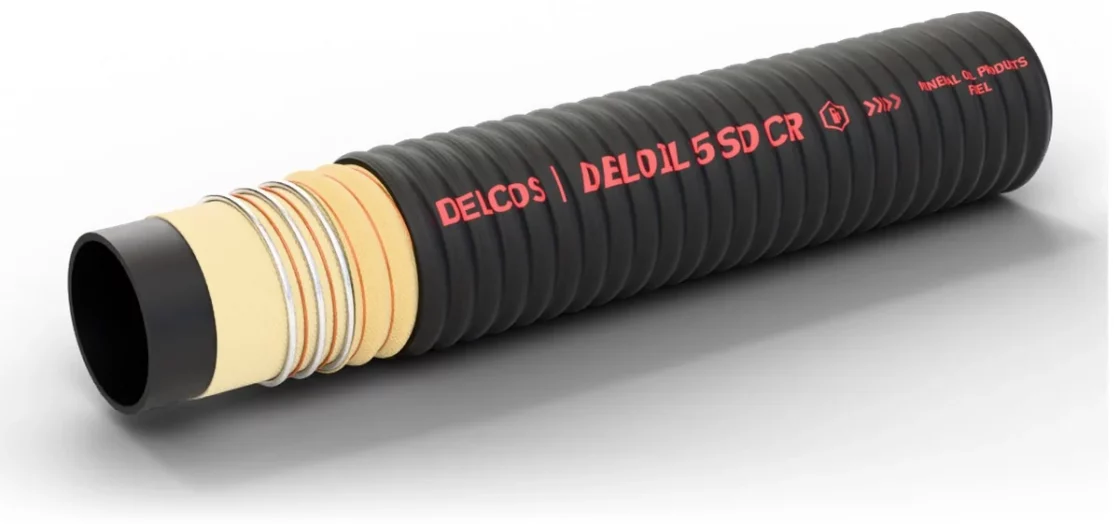

Construction
- Inner tube
- NBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Chloroprene rubber (CR), black, corrugated, cloth impression, antistatic, flame resistant, resistant to abrasion, weathering and oils
- Electrical properties
- Antistatic cover; copper wire for grounding
DELOIL 5 SD CR sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 19 | 797019000 | 5 | 15 | 0.5 | 50 | 0.4 | 40 |
| 22 | 797022000 | 5 | 15 | 0.5 | 60 | 0.46 | 40 |
| 25 | 797025000 | 5 | 15 | 0.5 | 65 | 0.5 | 40 |
| 28 | 797028000 | 5 | 15 | 0.5 | 75 | 0.55 | 40 |
| 32 | 797032000 | 5 | 15 | 0.5 | 80 | 0.62 | 40 |
| 35 | 797035000 | 5 | 15 | 0.5 | 90 | 0.67 | 40 |
| 38 | 797038000 | 5 | 15 | 0.5 | 100 | 0.71 | 40 |
| 42 | 797042000 | 5 | 15 | 0.5 | 115 | 0.77 | 40 |
| 45 | 797045000 | 5 | 15 | 0.5 | 125 | 0.82 | 40 |
| 50 | 797050000 | 5 | 15 | 0.5 | 145 | 1 | 40 |
| 51 | 797051000 | 5 | 15 | 0.5 | 145 | 1 | 40 |
| 63.5 | 797063000 | 5 | 15 | 0.5 | 180 | 1.24 | 40 |
| 76 | 797076000 | 5 | 15 | 0.5 | 230 | 1.68 | 40 |
| 80 | 797080000 | 5 | 15 | 0.5 | 245 | 1.8 | 40 |
| 90 | 797090000 | 5 | 15 | 0.5 | 300 | 2.2 | 40 |
| 102 | 797102000 | 5 | 15 | 0.5 | 330 | 2.5 | 40 |
Application and limits
- Application
- Extremely flexible suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics.
- Features
- Very flexible, flame resistant cover
- Limits
- Operating temperature from −30 to +100 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
