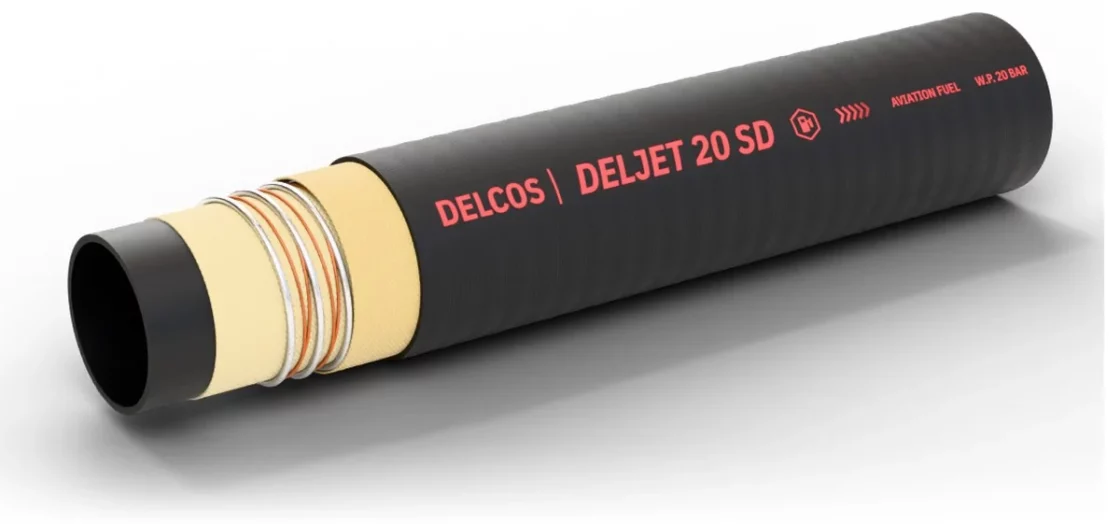

DELJET 20 SD hose with layers partly removed: inner tube, reinforcement and cover

DELJET 20 SD Aircraft refuelling suction and delivery hose, steel helix

Suction and delivery hose for aircraft ground refuelling; fuels with up to 50 % aromatics. Inner diameter 19–102 mm, working pressure up to 20 bar, temperature from −30 to +70 °C.

Inner diameter: 19–102 mm
Working pressure: up to 20 bar
Mode: pressure and suction
Temperature: −30…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 20
Medium: Aviation fuel
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −30…+70
Tube material: NBR
Coil length, m: 40, 61

Construction

Inner tube: NBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies, steel helix
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to ozone, weathering and chemicals
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); conductive cover (R ≤ 10⁶ Ω); two crossed copper wires for grounding

DELJET 20 SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	724019031	31	20	80	0.9	85	0.69	40, 61
25	724025039	39	20	80	0.9	115	0.97	40, 61
32	724032046	46	20	80	0.9	150	1.22	40, 61
38	724038053	53	20	80	0.9	180	1.59	40, 61
51	724051067	67	20	80	0.9	250	2.32	40, 61
63.5	724063081	81	20	80	0.7	325	2.86	40, 61
76	724076095	95	20	80	0.7	400	3.7	40, 61
102	724102123	123	20	80	0.7	550	5.17	40, 61

Application and limits

Application: Suction and delivery hose for aircraft ground refuelling; fuels with up to 50 % aromatics.
Features: Flame resistant cover, two crossed copper wires for grounding, conductive inner tube
Limits: Operating temperature from −30 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
