DELOIL TANKER 10 SD LITE Light suction and delivery hose for road tankers
Very light and flexible, highly abrasion resistant suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; designed for the road tankers of fuel distribution companies. Inner diameter 51–102 mm, working pressure up to 10 bar, temperature from −30 to +80 °C.
- Inner diameter
- 51–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −30…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 63.5, 76, 80, 102
- Working pressure, bar
- 10
- Medium
- Fuel, mineral oil products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, plastic helix
- Temperature, °C
- −30…+80
- Tube material
- NBR
- Coil length, m
- 40

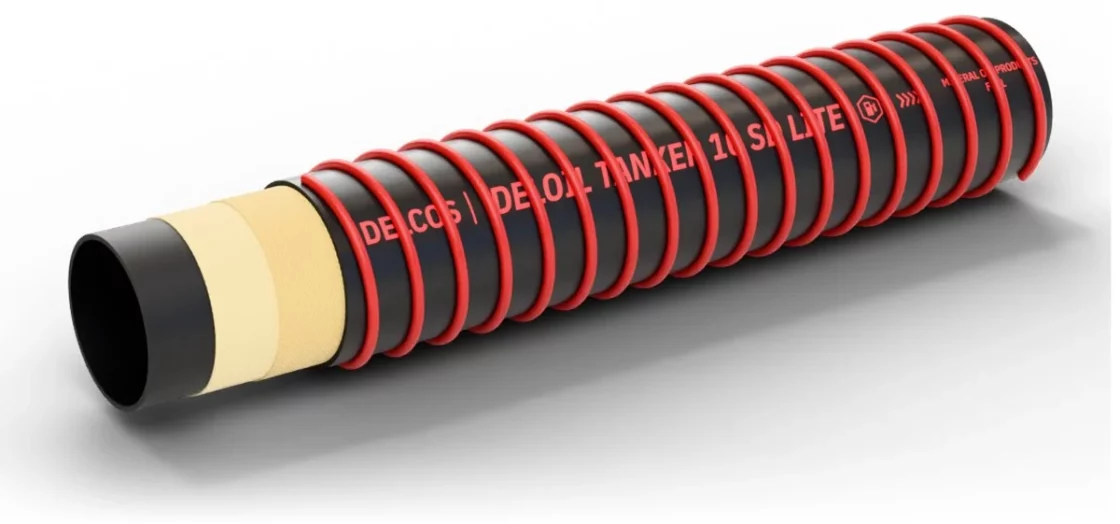

Construction
- Inner tube
- NBR rubber, black, smooth, antistatic
- Reinforcement
- High strength synthetic textile plies
- Cover
- NBR/PVC rubber, black, smooth, glossy, resistant to abrasion, ozone, weathering and oils, red thermoplastic helix on the cover
- Electrical properties
- Antistatic inner tube; copper wire for grounding
DELOIL TANKER 10 SD LITE sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Wall thickness, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 51 | 711051060 | 4.5 | 10 | 30 | 0.7 | 110 | 1.55 | 40 |
| 63.5 | 711063073 | 5 | 10 | 30 | 0.7 | 138 | 1.97 | 40 |
| 76 | 711076086 | 5 | 10 | 30 | 0.7 | 170 | 2.25 | 40 |
| 80 | 711080092 | 6 | 10 | 30 | 0.7 | 175 | 2.4 | 40 |
| 102 | 711102116 | 7 | 10 | 30 | 0.7 | 230 | 3 | 40 |
Application and limits
- Application
- Very light and flexible, highly abrasion resistant suction and delivery hose for mineral oils, diesel and petrol with up to 50 % aromatics; designed for the road tankers of fuel distribution companies.
- Features
- Light weight, very flexible, abrasion resistant
- Limits
- Operating temperature from −30 to +80 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
