DELCHEM FEP 16 SD FEP lined chemical suction and delivery hose, 16 bar
Suction and delivery hose with a FEP inner tube for chemicals, hydrocarbons and food products, up to +170 °C. Inner diameter 13–76 mm, working pressure up to 16 bar, temperature from −50 to +170 °C.
- Inner diameter
- 13–76 mm
- Working pressure
- up to 16 bar
- Mode
- pressure and suction
- Temperature
- −50…+170 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 13, 19, 25, 32, 38, 51, 63.5, 76
- Working pressure, bar
- 16
- Medium
- Chemicals, food products, hydrocarbons
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −50…+170
- Tube material
- FEP
- Coil length, m
- 20

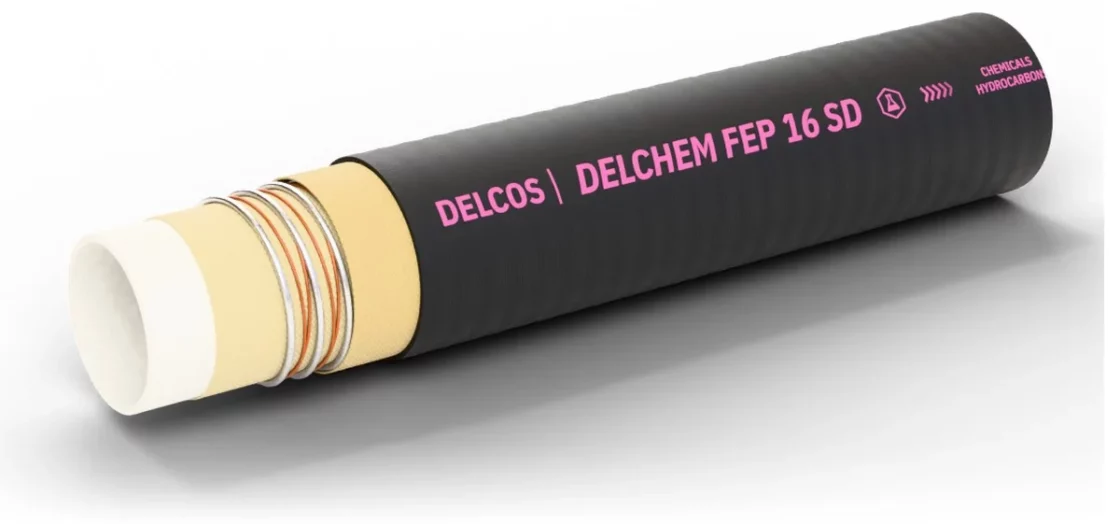

Construction
- Inner tube
- FEP fluoropolymer, white, glossy, non-conductive
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, black, smooth, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to ozone, weathering and chemicals
- Electrical properties
- Conductive cover (R ≤ 10⁶ Ω); two crossed copper wires for grounding
DELCHEM FEP 16 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 13 | 829013025 | 25 | 16 | 64 | 0.9 | 84 | 0.32 | 20 |
| 19 | 829019031 | 31 | 16 | 64 | 0.9 | 125 | 0.47 | 20 |
| 25 | 829025037 | 37 | 16 | 64 | 0.9 | 150 | 0.58 | 20 |
| 32 | 829032044 | 44 | 16 | 64 | 0.9 | 175 | 0.92 | 20 |
| 38 | 829038051 | 51 | 16 | 64 | 0.9 | 225 | 1.2 | 20 |
| 51 | 829051067 | 67 | 16 | 64 | 0.9 | 275 | 2.12 | 20 |
| 63.5 | 829063080 | 80 | 16 | 64 | 0.9 | 300 | 2.51 | 20 |
| 76 | 829076092 | 92 | 16 | 64 | 0.9 | 350 | 3.08 | 20 |
Application and limits
- Application
- Suction and delivery hose with a FEP inner tube for chemicals, hydrocarbons and food products, up to +170 °C.
- Features
- Flame resistant cover, two crossed copper wires for grounding
- Limits
- Operating temperature from −50 to +170 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
