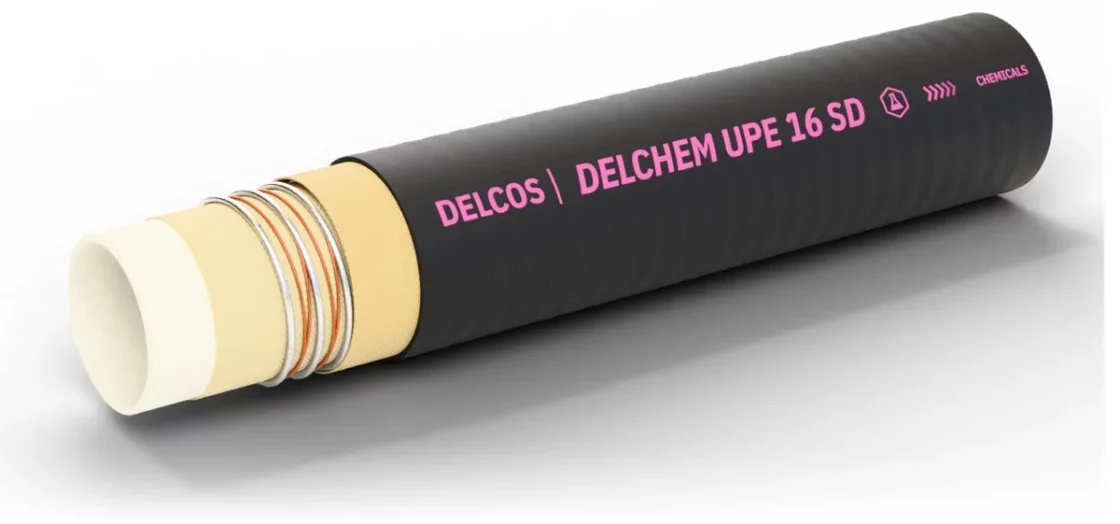

DELCHEM UPE 16 SD hose with layers partly removed: inner tube, reinforcement and cover

DELCHEM UPE 16 SD Chemical suction and delivery hose, UPE

Suction and delivery hose with a translucent UPE inner tube for chemicals, oils and fuels, including bunkering. Inner diameter 19–102 mm, working pressure up to 16 bar, temperature from −20 to +100 °C.

Inner diameter: 19–102 mm
Working pressure: up to 16 bar
Mode: pressure and suction
Temperature: −20…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 12, 16
Medium: Chemicals, fuel, mineral oil products
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −20…+100
Tube material: UPE (UHMW-PE)
Coil length, m: 40, 61

Construction

Inner tube: UHMW polyethylene (UPE), translucent, non-conductive
Reinforcement: High strength synthetic textile plies, steel helix
Cover: EPDM rubber, black, smooth, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to ozone, weathering and chemicals
Electrical properties: Conductive cover (R ≤ 10⁶ Ω); two crossed copper wires for grounding

DELCHEM UPE 16 SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	830019031	31	16	64	0.9	125	0.71	40, 61
25	830025037	37	16	64	0.9	150	0.87	40, 61
32	830032044	44	16	64	0.9	175	1.07	40, 61
38	830038051	51	16	64	0.9	225	1.35	40, 61
51	830051067	67	16	64	0.9	275	2.29	40, 61
63.5	830063080	80	16	64	0.9	300	2.51	40, 61
76	830076092	92	16	64	0.9	350	3.08	40, 61
102	830102118	118	12	48	0.8	450	4.51	40, 61

Application and limits

Application: Suction and delivery hose with a translucent UPE inner tube for chemicals, oils and fuels, including bunkering.
Features: Flame resistant cover, two crossed copper wires for grounding
Limits: Operating temperature from −20 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Also available with a black conductive inner tube, or with a white-and-black inner tube for chemicals, hydrocarbons and food products.
