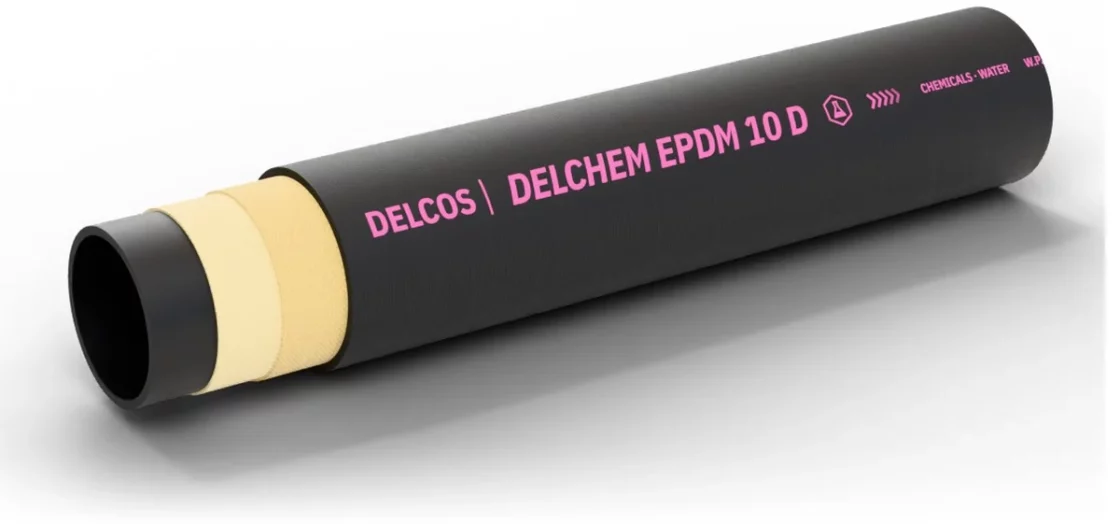

DELCHEM EPDM 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELCHEM EPDM 10 D Chemical delivery hose, EPDM

EPDM delivery hose for chemicals, industrial water and water treatment plants. Inner diameter 13–102 mm, working pressure up to 10 bar, temperature from −40 to +100 °C.

Inner diameter: 13–102 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 19, 20, 25, 30, 32, 35, 38, 40, 51, 60, 80, 102
Working pressure, bar: 10
Medium: Chemicals, water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+100
Tube material: EPDM
Coil length, m: 40, 61

Construction

Inner tube: EPDM rubber, black, smooth, antistatic
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, antistatic, resistant to ozone, weathering and chemicals
Electrical properties: Antistatic inner tube; antistatic cover

DELCHEM EPDM 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	821013023	23	10	30	0.38	40
19	821019029	29	10	30	0.44	40, 61
20	821020030	30	10	30	0.46	40, 61
25	821025035	35	10	30	0.55	40, 61
30	821030042	42	10	30	0.85	40, 61
32	821032044	44	10	30	0.88	40, 61
35	821035047	47	10	30	1.05	40, 61
38	821038052	52	10	30	1.21	40, 61
40	821040055	55	10	30	1.41	40, 61
51	821051066	66	10	30	1.81	40, 61
60	821060076	76	10	30	2.08	40, 61
80	821080096	96	10	30	2.77	40, 61
102	821102118	118	10	30	3.6	40, 61

Application and limits

Application: EPDM delivery hose for chemicals, industrial water and water treatment plants.
Features: Antistatic inner tube and cover, up to +100 °C
Limits: Operating temperature from −40 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Delivery only: for suction use the SD version.
