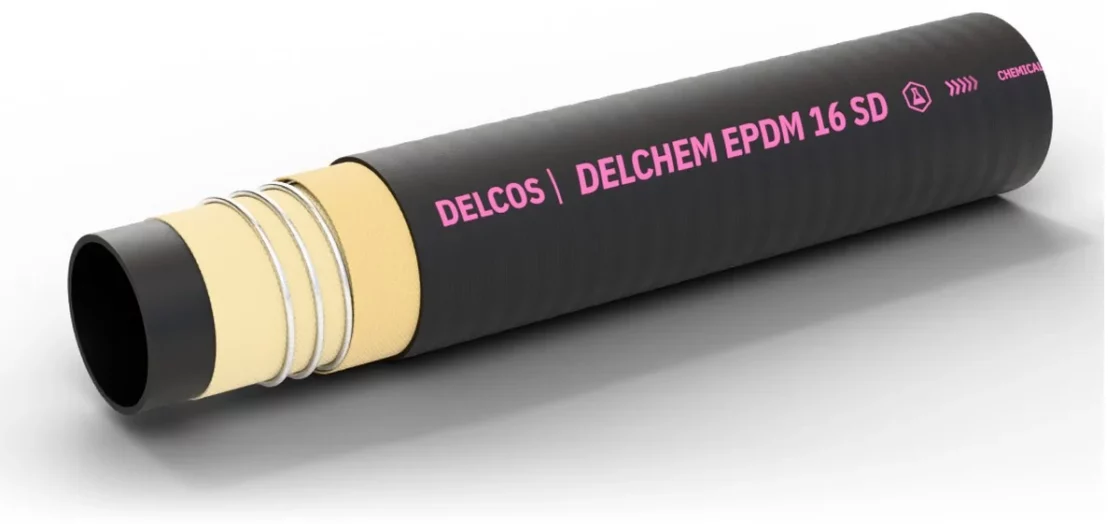

DELCHEM EPDM 16 SD hose with layers partly removed: inner tube, reinforcement and cover

DELCHEM EPDM 16 SD Conductive chemical suction and delivery hose, EPDM, 16 bar

EPDM suction and delivery hose for aggressive chemicals; conductive inner tube and flame resistant cover. Inner diameter 19–102 mm, working pressure up to 16 bar, temperature from −40 to +100 °C.

Inner diameter: 19–102 mm
Working pressure: up to 16 bar
Mode: pressure and suction
Temperature: −40…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 12, 16
Medium: Acids, chemicals
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −40…+100
Tube material: EPDM
Coil length, m: 40, 61

Construction

Inner tube: EPDM rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies, steel helix
Cover: EPDM rubber, black, smooth, cloth impression, antistatic (R ≤ 10⁹ Ω), flame resistant, resistant to ozone, weathering and chemicals
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover (R ≤ 10⁹ Ω)

DELCHEM EPDM 16 SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	820019031	31	16	64	0.9	125	0.7	40, 61
25	820025037	37	16	64	0.9	150	0.92	40, 61
32	820032044	44	16	64	0.9	175	1.09	40, 61
38	820038051	51	16	64	0.9	225	1.35	40, 61
51	820051067	67	16	64	0.9	275	1.84	40, 61
63.5	820063080	80	16	64	0.9	300	2.54	40, 61
76	820076092	92	16	64	0.9	350	3.2	40, 61
102	820102118	118	12	48	0.8	450	4.43	40, 61

Application and limits

Application: EPDM suction and delivery hose for aggressive chemicals; conductive inner tube and flame resistant cover.
Features: Conductive inner tube, flame resistant cover
Limits: Operating temperature from −40 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
