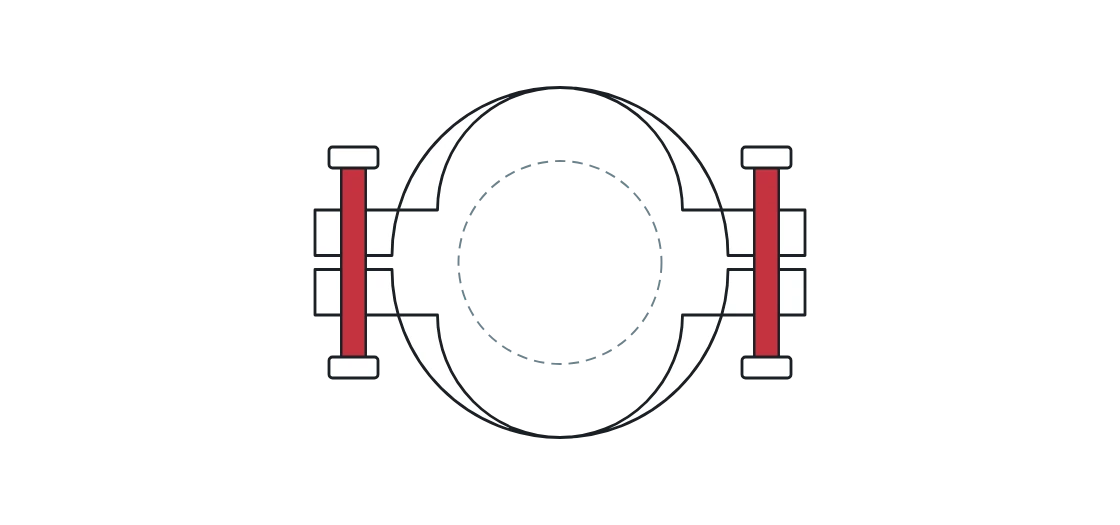

Drawing: KS safety clamp DIN 2817, stainless steel 316

KS safety clamp DIN 2817, stainless steel 316 Two-piece safety clamp with four bolts

Two-piece KS safety clamp to DIN 2817 with four bolts — holds the hose securely on the hose tail in fuel and industrial hose assemblies. DN 13–100.

Inner diameter: 13–100 mm
System: DIN 2817
Material: Stainless steel 316
Connection: Coupling part

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 19, 25, 32, 38, 50, 63, 65, 75, 100
Coupling system: DIN 2817
Body material: Stainless steel 316
Connection: Coupling part

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

Hose ID, mm	Article	Hose wall, mm	Hose OD, mm	Weight, kg
13	KS.013 5 SS	5	22–24	—
19	KS.019 6 SS	6	30–33	—
25	KS.025 6 SS	6	36–39	0.34
32	KS.032 6 SS	6	43–46	0.375
38	KS.038 6,5 SS	6.5	50–53	0.471
50	KS.050 8 SS	8	63–67	0.686
50	KS.0506 SS	6	61–63	—
63	KS.063 6 SS	6	73–77	—
63	KS.063 8 SS	8	78–82	1.12
65	KS.065 7 SS	7	78–82	—
75	KS.075 6,5 SS	6.5	86–90	—
75	KS.075 8 SS	8	88–93	1.24
100	KS.100 8 SS	8	114–119	3.082

Application and limits

Application: Two-piece KS safety clamp to DIN 2817 with four bolts — holds the hose securely on the hose tail in fuel and industrial hose assemblies.
Features: Four bolts — even clamping, for hose assemblies to DIN 2817
Limits: Working pressure and temperature depend on the size, body material and seal — please check when ordering.
