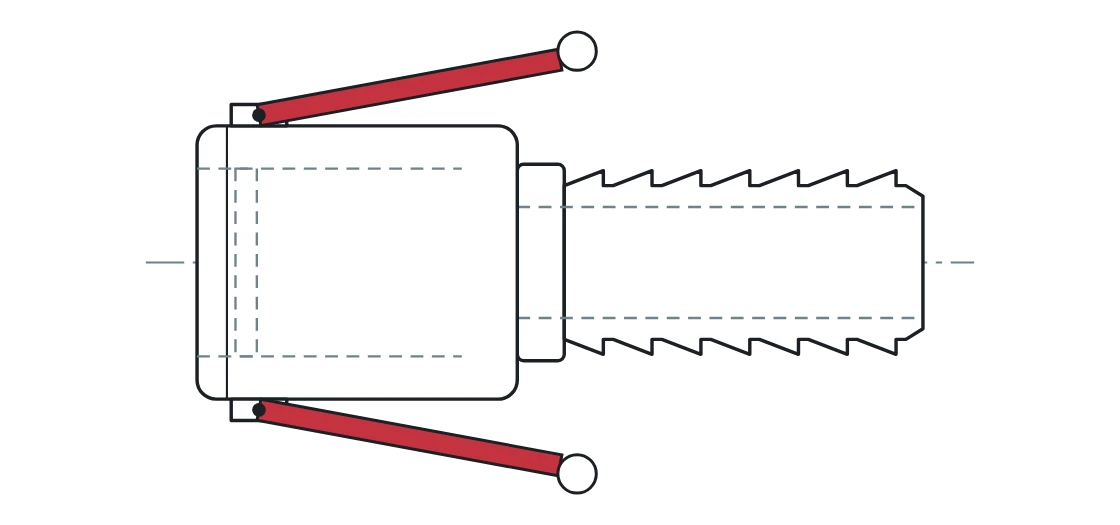

Drawing: Camlock type C, stainless steel

Camlock type C, stainless steel Camlock coupling: female coupler with cam arms × hose tail

Camlock type C — female coupler with cam arms and hose tail. Connects and disconnects without tools: the cam arms press the male adapter against the seal. A female coupler connects to a male adapter of the same size. DN 13–203.

Inner diameter: 13–203 mm
System: Camlock
Material: Stainless steel AISI 316
Connection: Hose tail

Request a quote

Seals for this coupling are in Seals and gaskets.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 19, 25, 32, 38, 51, 65, 76, 102, 127, 152, 203
Coupling system: Camlock
Body material: Stainless steel AISI 316
Connection: Hose tail

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

Size, inch	DN, mm	Article	Pack, pcs	Weight, kg
1/2"	13	SSC.013	16	0.134
3/4"	19	SSC.019	12	0.188
1"	25	SSC.025	12	0.26
1 1/4"	32	SSC.032	10	0.457
1 1/2"	38	SSC.038	10	0.5
2"	51	SSC.051	10	0.727
2 1/2"	65	SSC.065	8	0.944
3"	76	SSC.076	8	1.295
4"	102	SSC.102	8	2.025
5"	127	SSC.127	6	2.752
6"	152	SSC.152	4	4.695
8"	203	SSC.203	4	—

Application and limits

Application: Camlock type C — female coupler with cam arms and hose tail. Connects and disconnects without tools: the cam arms press the male adapter against the seal. A female coupler connects to a male adapter of the same size.
Features: Connects and disconnects without tools, AISI 316 stainless steel body — for chemicals, food and aggressive media, female B, C, D and cap DC connect to male A, E, F and plug DP
Limits: Working pressure and temperature depend on the size, body material and seal — please check when ordering.
Do not connect parts of different sizes.
