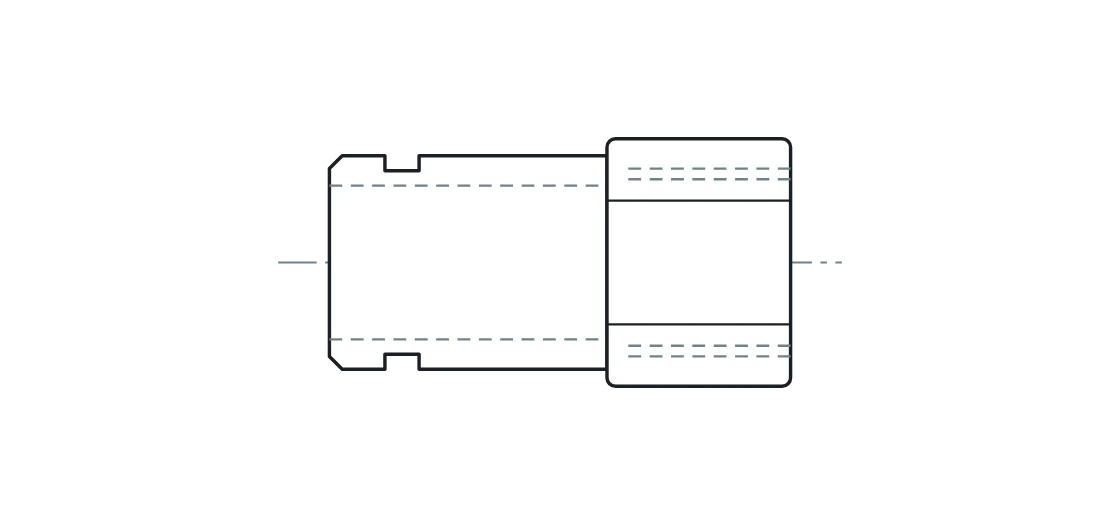

Drawing: Camlock type A, stainless steel

Camlock type A, stainless steel Camlock coupling: male adapter × female BSP thread

Camlock type A — male adapter with female BSP thread. Connects and disconnects without tools: the cam arms press the male adapter against the seal. A female coupler connects to a male adapter of the same size. DN 13–203.

Inner diameter: 13–203 mm
System: Camlock
Material: Stainless steel AISI 316
Connection: Female BSP thread

Request a quote

Seals for this coupling are in Seals and gaskets.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 19, 25, 32, 38, 51, 65, 76, 102, 127, 152, 203
Coupling system: Camlock
Body material: Stainless steel AISI 316
Connection: Female BSP thread

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

Size, inch	DN, mm	Article	Thread	Pack, pcs	Weight, kg
1/2"	13	SSA.013	G 1/2"	16	0.07
3/4"	19	SSA.019	G 3/4"	12	0.092
1"	25	SSA.025	G 1"	12	0.143
1 1/4"	32	SSA.032	G 11/4"	10	0.203
1 1/2"	38	SSA.038	G 11/2"	10	0.305
2"	51	SSA.051	G 2"	10	0.393
2 1/2"	65	SSA.065	G 21/2"	8	0.713
3"	76	SSA.076	G 3"	8	0.28
4"	102	SSA.102	G 4"	8	1.08
5"	127	SSA.127	G 5"	6	1.594
6"	152	SSA.152	G 6"	4	2.725
8"	203	SSA.203	G 8"	4	—

Application and limits

Application: Camlock type A — male adapter with female BSP thread. Connects and disconnects without tools: the cam arms press the male adapter against the seal. A female coupler connects to a male adapter of the same size.
Features: Connects and disconnects without tools, AISI 316 stainless steel body — for chemicals, food and aggressive media, female B, C, D and cap DC connect to male A, E, F and plug DP
Limits: Working pressure and temperature depend on the size, body material and seal — please check when ordering.
Do not connect parts of different sizes.
