DELFOOD HOT DRY 10 SD Hot air suction and delivery hose for bulk tankers
Suction and delivery hose for hot dry air from the compressors of road tankers: up to +200 °C, peaks up to +240 °C. Inner diameter 25–102 mm, working pressure up to 10 bar, temperature from −40 to +200 °C.
- Inner diameter
- 25–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −40…+200 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 25, 38, 42, 51, 63.5, 76, 90, 102
- Working pressure, bar
- 10
- Medium
- Hot air
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+200
- Tube material
- EPM
- Coil length, m
- 40, 61

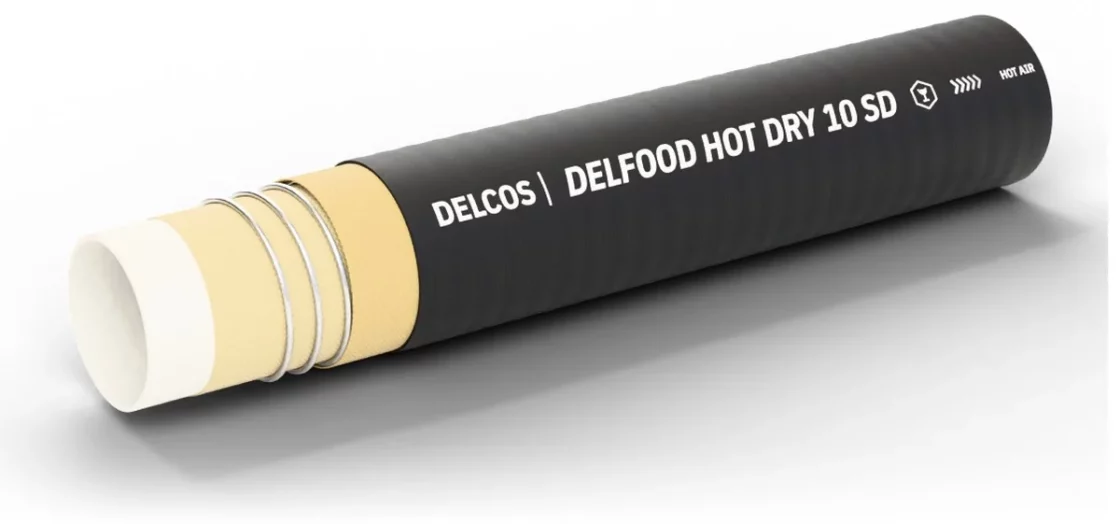

Construction
- Inner tube
- EPM rubber, white, smooth, odourless and tasteless, non-toxic
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, black, smooth, cloth impression, resistant to abrasion, ozone and weathering
DELFOOD HOT DRY 10 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 25 | 764025036 | 36 | 10 | 30 | 0.9 | 115 | 0.69 | 40, 61 |
| 38 | 764038049 | 49 | 10 | 30 | 0.9 | 180 | 1.12 | 40, 61 |
| 42 | 764042053 | 53 | 10 | 30 | 0.9 | 200 | 1.25 | 40 |
| 51 | 764051063 | 63 | 10 | 30 | 0.9 | 245 | 1.57 | 40, 61 |
| 63.5 | 764063076 | 76 | 10 | 30 | 0.9 | 340 | 1.9 | 40, 61 |
| 76 | 764076090 | 90 | 10 | 30 | 0.9 | 410 | 2.68 | 40, 61 |
| 90 | 764090104 | 104 | 10 | 30 | 0.9 | 500 | 3.05 | 40 |
| 102 | 764102116 | 116 | 10 | 30 | 0.9 | 580 | 3.43 | 40, 61 |
Application and limits
- Application
- Suction and delivery hose for hot dry air from the compressors of road tankers: up to +200 °C, peaks up to +240 °C.
- Features
- Up to +200 °C, vacuum resistant
- Limits
- Operating temperature from −40 to +200 °C.
- Short-term peaks up to +240 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
