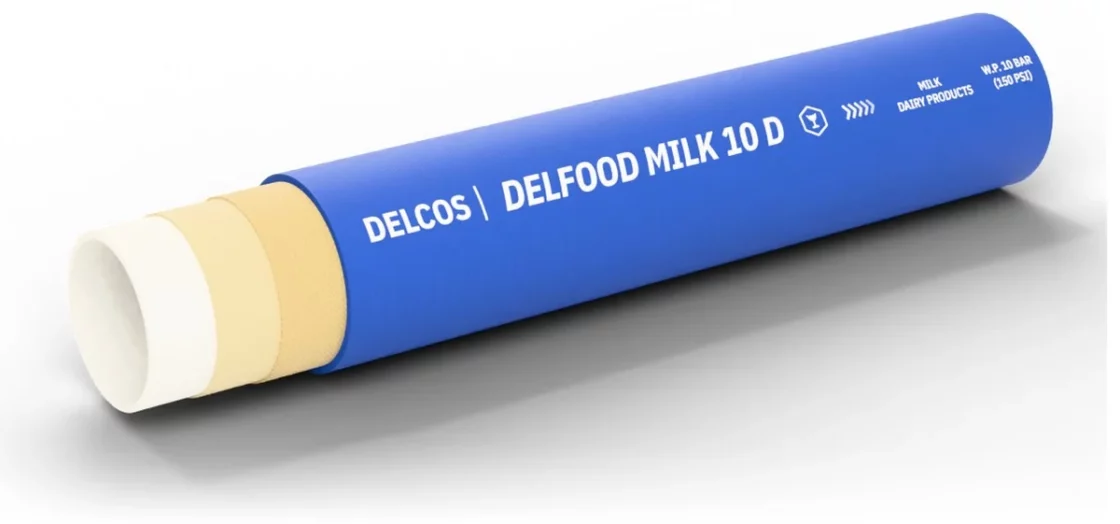

DELFOOD MILK 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELFOOD MILK 10 D Food delivery hose for milk and fatty foods

Delivery hose for milk, dairy products, olive oil and other fatty foods; white food quality inner tube. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −40 to +80 °C.

Inner diameter: 19–102 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 30, 32, 38, 40, 51, 60, 63.5, 65, 70, 76, 80, 90, 102
Working pressure, bar: 10
Medium: Dairy products, edible oils, fatty foods, milk
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+80
Tube material: NBR
Coil length, m: 40, 61

Construction

Inner tube: NBR rubber, white, smooth, food quality, odourless and tasteless
Reinforcement: High strength synthetic textile plies
Cover: NBR rubber, blue, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELFOOD MILK 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
19	731019029	29	10	30	0.54	40, 61
25	731025035	35	10	30	0.75	40, 61
30	731030042	42	10	30	1	40
32	731032044	44	10	30	1.06	40, 61
38	731038050	50	10	30	1.26	40, 61
40	731040052	52	10	30	1.32	40
51	731051064	64	10	30	1.78	40, 61
60	731060073	73	10	30	2.06	40
63.5	731063077	77	10	30	2.17	40, 61
65	731065079	79	10	30	2.3	40
70	731070084	84	10	30	2.42	40
76	731076090	90	10	30	2.77	40, 61
80	731080094	94	10	30	2.81	40, 61
90	731090104	104	10	30	3.1	40
102	731102116	116	10	30	3.64	40, 61

Application and limits

Application: Delivery hose for milk, dairy products, olive oil and other fatty foods; white food quality inner tube.
Features: Odourless and tasteless inner tube, steam sterilisable
Limits: Operating temperature from −40 to +80 °C.
Sterilisation at up to 110 °C for max. 30 min.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Delivery only: for suction use the SD version.
