DELBREW 10 D Beer and beverage delivery hose
Delivery hose for beer, wine, spirits up to 96 % alcohol and soft drinks; butyl (BIIR) inner tube. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −40 to +120 °C.
- Inner diameter
- 19–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure only
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5, 65, 76, 102
- Working pressure, bar
- 10
- Medium
- Beer, soft drinks, spirits, wine
- Mode
- Pressure
- Reinforcement
- Textile cord
- Temperature, °C
- −40…+120
- Tube material
- BIIR (butyl rubber)
- Coil length, m
- 40, 61

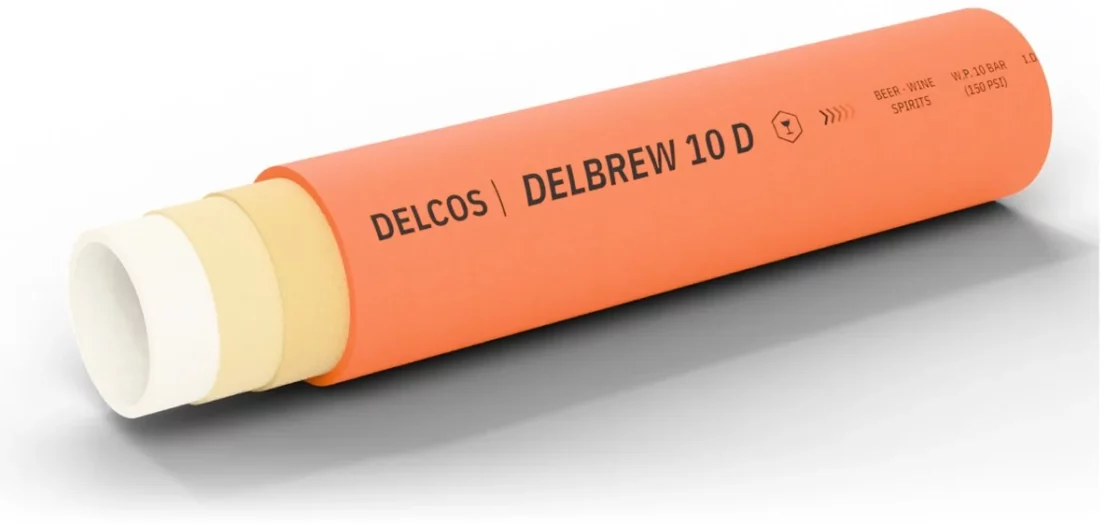

Construction
- Inner tube
- Butyl rubber (BIIR), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies
- Cover
- EPDM rubber, orange, smooth, cloth impression, resistant to abrasion, ozone and weathering
DELBREW 10 D sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|
| 19 | 740019032 | 32 | 10 | 30 | 0.74 | 40, 61 |
| 25 | 740025037 | 37 | 10 | 30 | 0.78 | 40, 61 |
| 32 | 740032048 | 48 | 10 | 30 | 1.27 | 40, 61 |
| 38 | 740038056 | 56 | 10 | 30 | 1.74 | 40, 61 |
| 51 | 740051071 | 71 | 10 | 30 | 2.65 | 40, 61 |
| 63.5 | 740063085 | 85 | 10 | 30 | 3.52 | 40, 61 |
| 65 | 740065087 | 87 | 10 | 30 | 3.7 | 40, 61 |
| 76 | 740076101 | 101 | 10 | 30 | 4.67 | 40, 61 |
| 102 | 740102132 | 132 | 10 | 30 | 7.57 | 40, 61 |
Application and limits
- Application
- Delivery hose for beer, wine, spirits up to 96 % alcohol and soft drinks; butyl (BIIR) inner tube.
- Features
- Odourless and tasteless inner tube, steam sterilisable
- Limits
- Operating temperature from −40 to +120 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
