DELFOOD 10 HD Delivery hose for grain, flour and other dry foods
Delivery hose for dry and abrasive foods: grain, rice, sugar, flour and animal feed. White food quality natural rubber inner tube. Inner diameter 51–102 mm, working pressure up to 10 bar, temperature from −40 to +80 °C.
- Inner diameter
- 51–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure only
- Temperature
- −40…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 60, 70, 76, 80, 90, 102
- Working pressure, bar
- 10
- Medium
- Animal feed, flour, grain, rice, sugar
- Mode
- Pressure
- Reinforcement
- Textile cord
- Temperature, °C
- −40…+80
- Tube material
- Natural rubber
- Coil length, m
- 40, 61

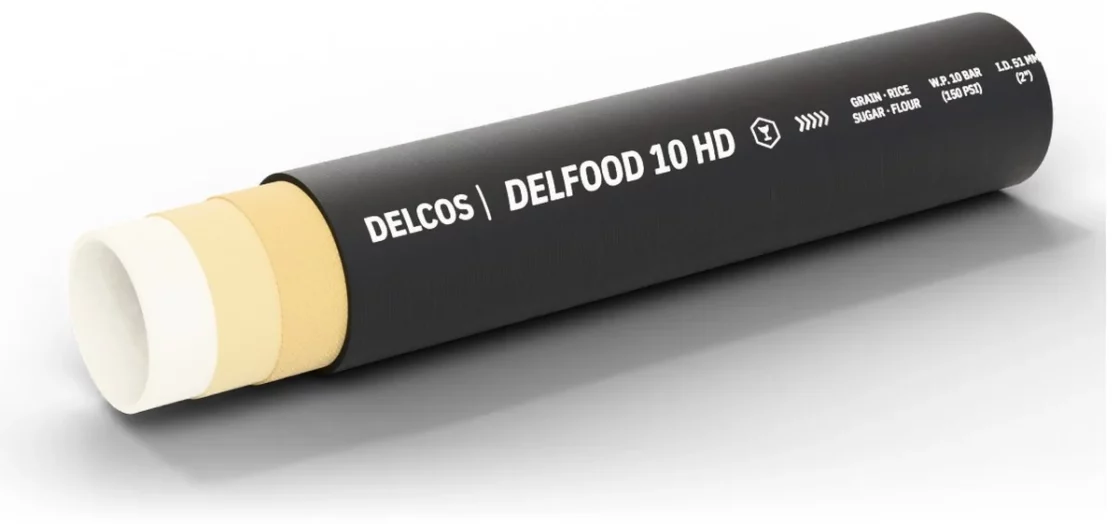

Construction
- Inner tube
- Natural rubber (NR), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies
- Cover
- EPDM rubber, black, smooth, cloth impression, antistatic (R ≤ 10⁹ Ω), resistant to ozone, weathering and chemicals
- Electrical properties
- Antistatic cover (R ≤ 10⁹ Ω); two copper wires for grounding
DELFOOD 10 HD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|
| 51 | 733051065 | 65 | 10 | 30 | 1.6 | 40, 61 |
| 60 | 733060074 | 74 | 10 | 30 | 1.72 | 40 |
| 70 | 733070084 | 84 | 10 | 30 | 2 | 40 |
| 76 | 733076090 | 90 | 10 | 30 | 2.2 | 40, 61 |
| 80 | 733080094 | 94 | 10 | 30 | 2.35 | 40 |
| 90 | 733090104 | 104 | 10 | 30 | 2.7 | 40 |
| 102 | 733102118 | 118 | 10 | 30 | 2.95 | 40, 61 |
Application and limits
- Application
- Delivery hose for dry and abrasive foods: grain, rice, sugar, flour and animal feed. White food quality natural rubber inner tube.
- Features
- Abrasion resistant, two copper wires for grounding
- Limits
- Operating temperature from −40 to +80 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
