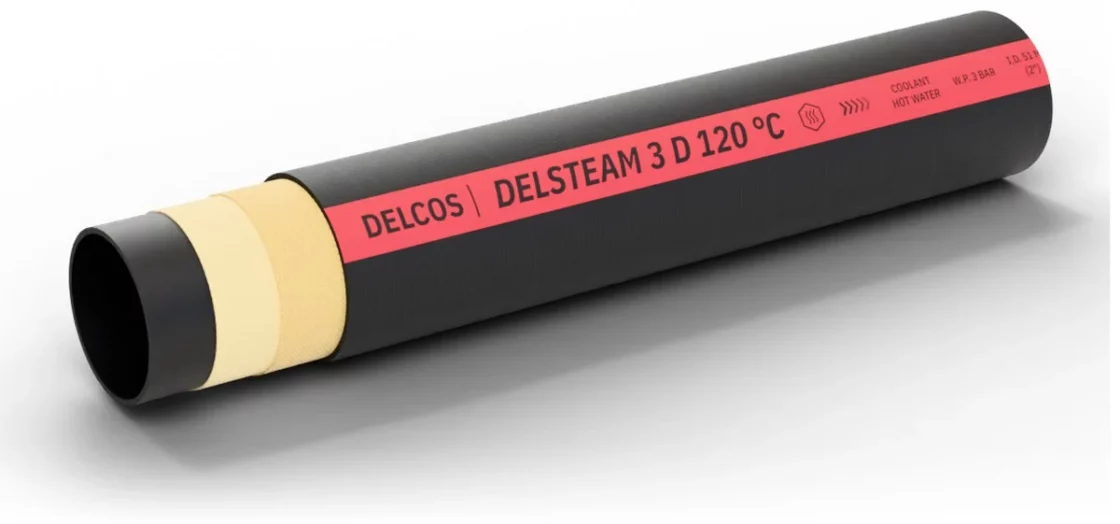

DELSTEAM 3 D 120 °C hose with layers partly removed: inner tube, reinforcement and cover

DELSTEAM 3 D 120 °C EPDM radiator hose

Radiator hose for hot water and coolants in engine cooling and heating systems. Inner diameter 13–110 mm, working pressure up to 3 bar, temperature from −40 to +120 °C.

Inner diameter: 13–110 mm
Working pressure: up to 3 bar
Mode: pressure only
Temperature: −40…+120 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38, 40, 42, 45, 48, 51, 55, 60, 65, 70, 76, 80, 90, 102, 110
Working pressure, bar: 3
Medium: Coolant, hot water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+120
Tube material: EPDM
Coil length, m: 1, 40, 61

Construction

Inner tube: EPDM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELSTEAM 3 D 120 °C sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	634013019	19	3	10	0.2	1, 40
16	634016022	22	3	10	0.25	1, 40
18	634018024	24	3	10	0.28	1, 40
20	634020026	26	3	10	0.3	1, 40, 61
22	634022028	28	3	10	0.32	1, 40, 61
25	634025032	32	3	10	0.42	1, 40, 61
28	634028036	36	3	10	0.47	1, 40, 61
30	634030038	38	3	10	0.53	1, 40, 61
32	634032040	40	3	10	0.57	1, 40, 61
35	634035043	43	3	10	0.61	1, 40, 61
38	634038047	47	3	10	0.75	1, 40, 61
40	634040049	49	3	10	0.86	1, 40, 61
42	634042051	51	3	10	0.9	1, 40, 61
45	634045054	54	3	10	0.92	1, 40, 61
48	634048058	58	3	10	1.04	1, 40, 61
51	634051061	61	3	10	1.1	1, 40, 61
55	634055065	65	3	10	1.18	1, 40, 61
60	634060070	70	3	10	1.28	1, 40, 61
65	634065075	75	3	10	1.37	1, 40, 61
70	634070080	80	3	10	1.47	1, 40, 61
76	634076086	86	3	10	1.59	1, 40, 61
80	634080092	92	3	10	1.9	1, 40, 61
90	634090102	102	3	10	2.15	1, 40, 61
102	634102113	113	3	10	2.35	1, 40, 61
110	634110123	123	3	10	2.5	1, 40, 61

Application and limits

Application: Radiator hose for hot water and coolants in engine cooling and heating systems.
Features: Wide size range from 13 mm, up to +120 °C
Limits: Operating temperature from −40 to +120 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
For ID 18–110 mm also available rated 4 bar.
