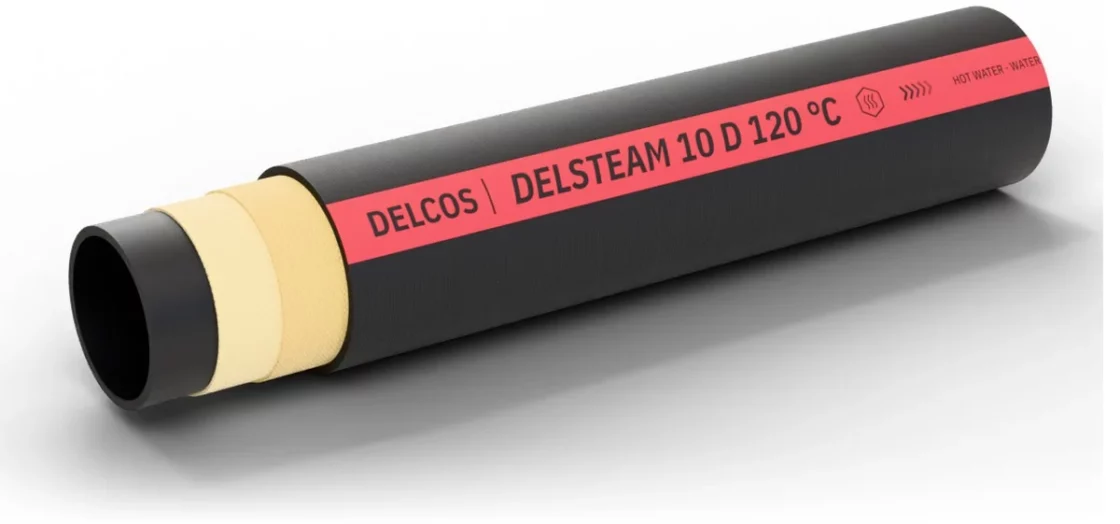

DELSTEAM 10 D 120 °C hose with layers partly removed: inner tube, reinforcement and cover

DELSTEAM 10 D 120 °C Hot water and cleaning hose up to +120 °C

Delivery hose for hot water mixed with unsaturated steam; well suited to low pressure washers. Inner diameter 10–60 mm, working pressure up to 10 bar, temperature from −40 to +120 °C.

Inner diameter: 10–60 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+120 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 10, 12, 13, 15, 16, 18, 19, 20, 25, 30, 32, 35, 38, 40, 42, 45, 51, 60
Working pressure, bar: 10
Medium: Hot water, water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+120
Tube material: EPDM
Coil length, m: 40, 61

Construction

Inner tube: EPDM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELSTEAM 10 D 120 °C sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
10	635010020	20	10	30	0.29	40
12	635012022	22	10	30	0.33	40
13	635013023	23	10	30	0.35	40
15	635015025	25	10	30	0.39	40
16	635016026	26	10	30	0.42	40
18	635018028	28	10	30	0.45	40
19	635019029	29	10	30	0.47	40, 61
20	635020030	30	10	30	0.49	40, 61
25	635025035	35	10	30	0.59	40, 61
30	635030041	41	10	30	0.85	40, 61
32	635032042	42	10	30	0.88	40, 61
32	635032044	44	10	30	0.9	40, 61
35	635035047	47	10	30	0.97	40, 61
38	635038050	50	10	30	1.22	40, 61
40	635040054	54	10	30	1.33	40, 61
42	635042054	54	10	30	1.41	40, 61
45	635045061	61	10	30	1.67	40, 61
51	635051067	67	10	30	1.85	40, 61
60	635060075	75	10	30	3.07	40, 61
60	635060082	82	10	30	3.54	40, 61

Application and limits

Application: Delivery hose for hot water mixed with unsaturated steam; well suited to low pressure washers.
Features: Up to +120 °C
Limits: Operating temperature from −40 to +120 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
