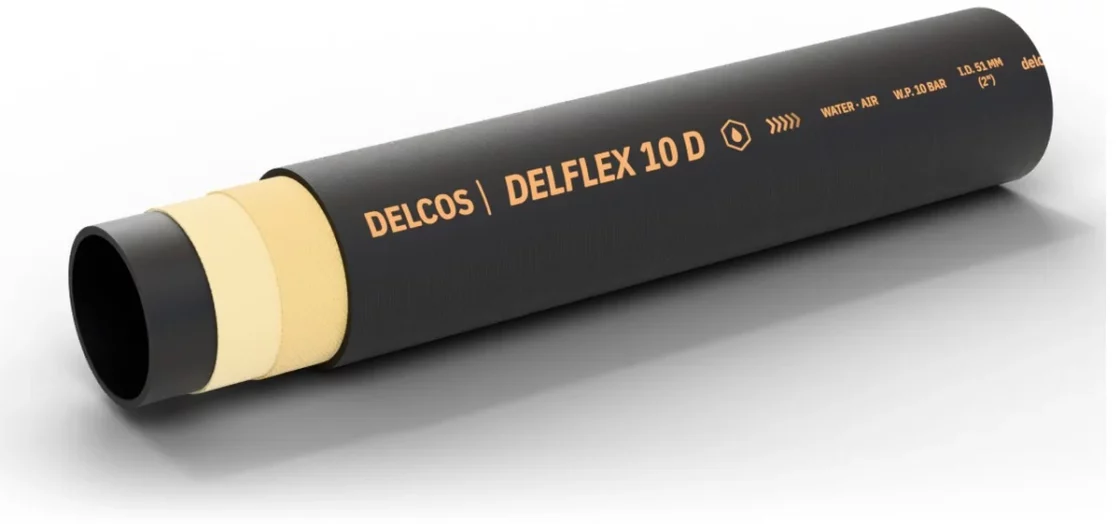

DELFLEX 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELFLEX 10 D Water delivery hose

Delivery hose for water, air and non-corrosive inert fluids in general industrial use. Strong yet flexible construction. Inner diameter 6–60 mm, working pressure up to 10 bar, temperature from −30 to +80 °C.

Inner diameter: 6–60 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −30…+80 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 6, 8, 10, 12, 13, 15, 16, 19, 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 51, 60
Working pressure, bar: 10
Medium: Air, water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+80
Tube material: SBR
Coil length, m: 40, 61

Construction

Inner tube: SBR rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: SBR rubber, black, smooth, cloth impression, resistant to abrasion and weathering

DELFLEX 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
6	631006012	12	10	30	40	0.16	≤ 100
8	631008015	15	10	30	65	0.18	≤ 100
10	631010017	17	10	30	80	0.21	≤ 100
12	631012018	18	10	30	95	0.2	≤ 50
13	631013019	19	10	30	105	0.22	≤ 50
15	631015021	21	10	30	120	0.25	≤ 50
16	631016023	23	10	30	130	0.31	≤ 50
19	631019026	26	10	30	150	0.36	≤ 50
20	631020030	30	10	30	—	0.42	40
22	631022030	30	10	30	—	0.42	40
25	631025035	35	10	30	—	0.64	40, 61
28	631028038	38	10	30	—	0.66	40, 61
30	631030041	41	10	30	—	0.98	40, 61
32	631032044	44	10	30	—	1.02	40, 61
35	631035047	47	10	30	—	1.1	40, 61
38	631038050	50	10	30	—	1.18	40, 61
40	631040054	54	10	30	—	1.48	40, 61
45	631045059	59	10	30	—	1.62	40, 61
51	631051065	65	10	30	—	1.67	40, 61
60	631060074	74	10	30	—	3.28	40, 61
60	631060082	82	10	30	—	3.45	40, 61

Application and limits

Application: Delivery hose for water, air and non-corrosive inert fluids in general industrial use. Strong yet flexible construction.
Features: Strong, very flexible
Limits: Operating temperature from −30 to +80 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
ID 6–19 mm are supplied in long coils.
Delivery only: for suction use the SD version.
