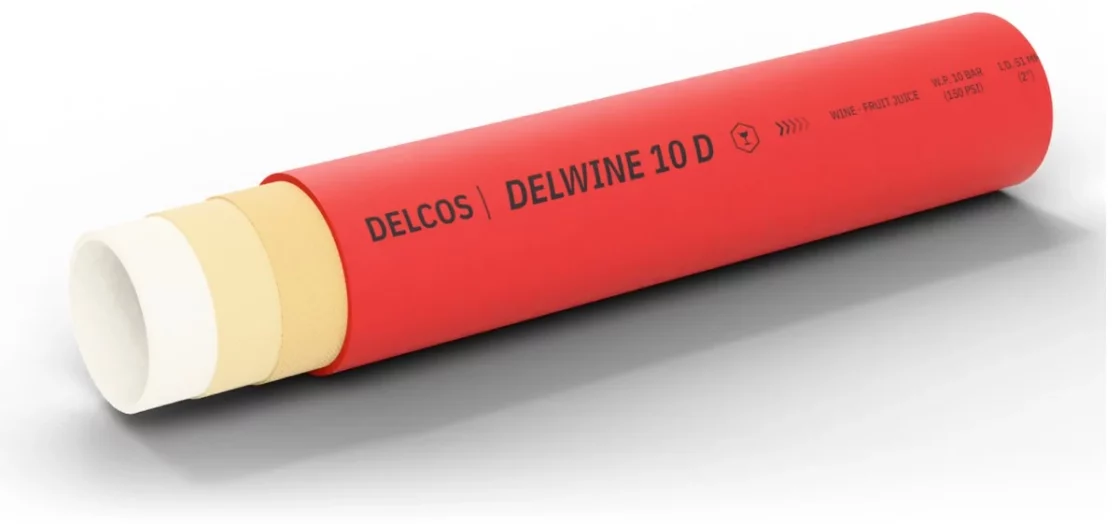

DELWINE 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELWINE 10 D Wine and juice delivery hose

Delivery hose for wine, fruit juice and soft drinks with up to 50 % alcohol; EPDM inner tube for non-fatty foods. Inner diameter 13–102 mm, working pressure up to 10 bar, temperature from −40 to +120 °C.

Inner diameter: 13–102 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+120 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 19, 25, 30, 32, 38, 40, 51, 63.5, 65, 76, 102
Working pressure, bar: 10
Medium: Fruit juice, soft drinks, wine
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+120
Tube material: EPDM
Coil length, m: 40, 61

Construction

Inner tube: EPDM rubber, white, smooth, food quality, odourless and tasteless
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, red, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELWINE 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	745013023	23	10	30	0.41	40
19	745019029	29	10	30	0.5	40, 61
25	745025035	35	10	30	0.72	40, 61
30	745030041	41	10	30	0.9	40
32	745032043	43	10	30	0.87	40, 61
38	745038051	51	10	30	1.17	40, 61
40	745040053	53	10	30	1.32	40, 61
51	745051065	65	10	30	1.66	40, 61
63.5	745063078	78	10	30	2.2	40, 61
65	745065079	79	10	30	2.5	40
76	745076092	92	10	30	2.7	40, 61
102	745102118	118	10	30	3.51	40, 61

Application and limits

Application: Delivery hose for wine, fruit juice and soft drinks with up to 50 % alcohol; EPDM inner tube for non-fatty foods.
Features: Odourless and tasteless inner tube, steam sterilisable
Limits: Operating temperature from −40 to +120 °C.
Sterilisation at up to 110 °C for max. 30 min.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Not for fatty foods.
