DELFOOD GRAIN 5 SD FC Flexible suction and delivery hose for grain and dry foods
Flexible suction and delivery hose for dry and abrasive foods: grain, rice, sugar, flour and animal feed. Inner diameter 51–152 mm, working pressure up to 5 bar, temperature from −40 to +80 °C.
- Inner diameter
- 51–152 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −40…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 63.5, 70, 76, 90, 102, 152
- Working pressure, bar
- 5
- Medium
- Animal feed, flour, grain, rice, sugar
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+80
- Tube material
- Natural rubber
- Coil length, m
- 40, 61

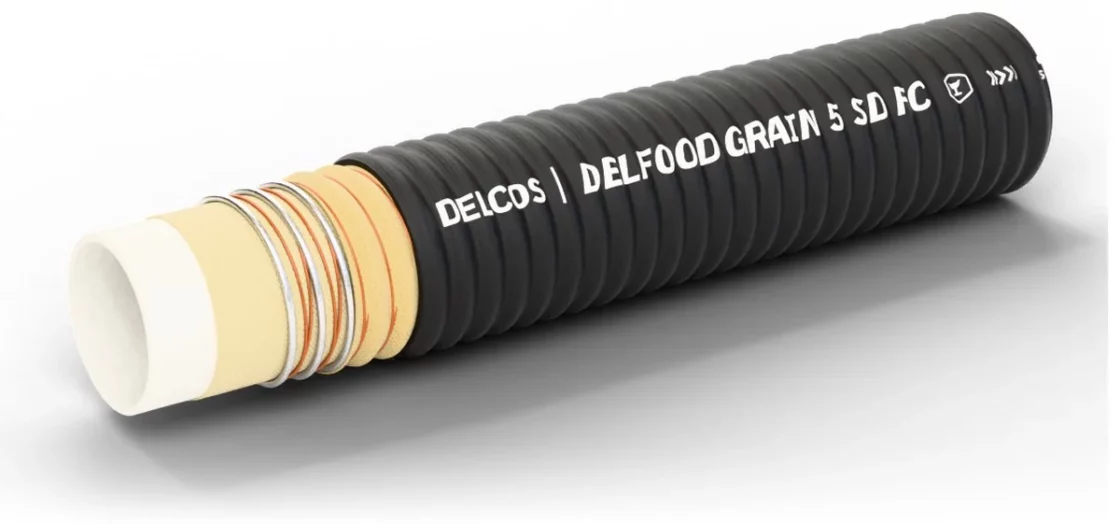

Construction
- Inner tube
- Natural rubber (NR), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, black, flat corrugated, cloth impression, antistatic (R ≤ 10⁹ Ω), resistant to ozone, weathering and chemicals
- Electrical properties
- Antistatic cover (R ≤ 10⁹ Ω); two crossed copper wires for grounding
DELFOOD GRAIN 5 SD FC sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 51 | 760051000 | 5 | 15 | 0.9 | 140 | 1.63 | 40, 61 |
| 63.5 | 760063000 | 5 | 15 | 0.9 | 150 | 2.22 | 40, 61 |
| 70 | 760070000 | 5 | 15 | 0.9 | 170 | 2.4 | 40 |
| 76 | 760076000 | 5 | 15 | 0.9 | 180 | 2.6 | 40, 61 |
| 90 | 760090000 | 5 | 15 | 0.9 | 215 | 2.97 | 40 |
| 102 | 760102000 | 5 | 15 | 0.9 | 260 | 3.95 | 40, 61 |
| 152 | 760152000 | 5 | 15 | 0.9 | 455 | 6.88 | 61 |
Application and limits
- Application
- Flexible suction and delivery hose for dry and abrasive foods: grain, rice, sugar, flour and animal feed.
- Features
- Very flexible, abrasion resistant
- Limits
- Operating temperature from −40 to +80 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
