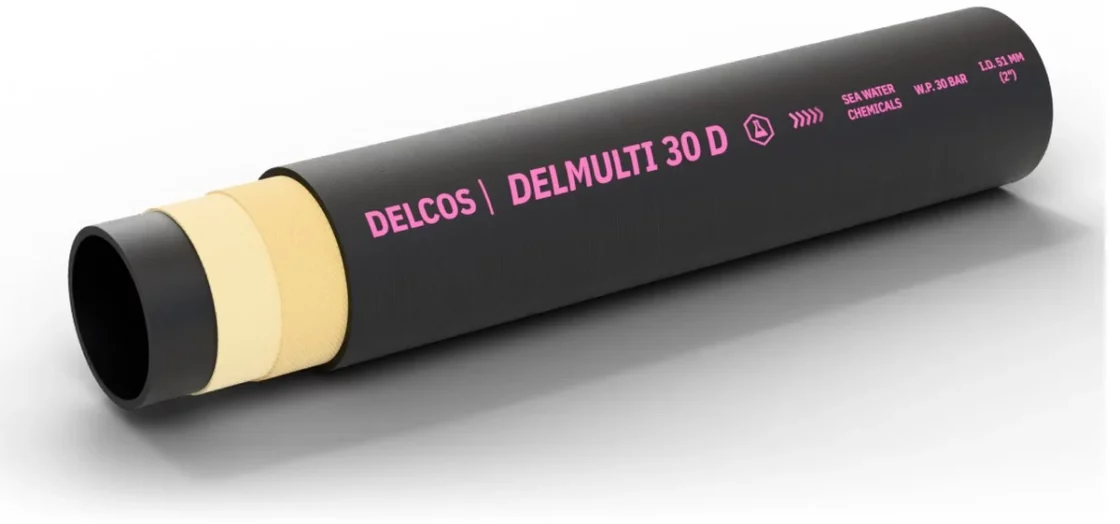

DELMULTI 30 D hose with layers partly removed: inner tube, reinforcement and cover

DELMULTI 30 D Multipurpose delivery hose, EPDM, 30 bar

Multipurpose EPDM delivery hose for chemicals, hot water and sea water at up to 30 bar. Inner diameter 13–51 mm, working pressure up to 30 bar, temperature from −40 to +120 °C.

Inner diameter: 13–51 mm
Working pressure: up to 30 bar
Mode: pressure only
Temperature: −40…+120 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 19, 25, 32, 38, 51
Working pressure, bar: 30
Medium: Chemicals, hot water, sea water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+120
Tube material: EPDM
Coil length, m: 40

Construction

Inner tube: EPDM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, flame resistant, resistant to ozone, weathering and chemicals

DELMULTI 30 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	823013021	21	30	90	0.27	40
19	823019028	28	30	90	0.41	40
25	823025035	35	30	90	0.6	40
32	823032044	44	30	90	0.93	40
38	823038051	51	30	90	1.2	40
51	823051066	66	30	90	1.85	40

Application and limits

Application: Multipurpose EPDM delivery hose for chemicals, hot water and sea water at up to 30 bar.
Features: Flame resistant cover, up to +120 °C
Limits: Operating temperature from −40 to +120 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
