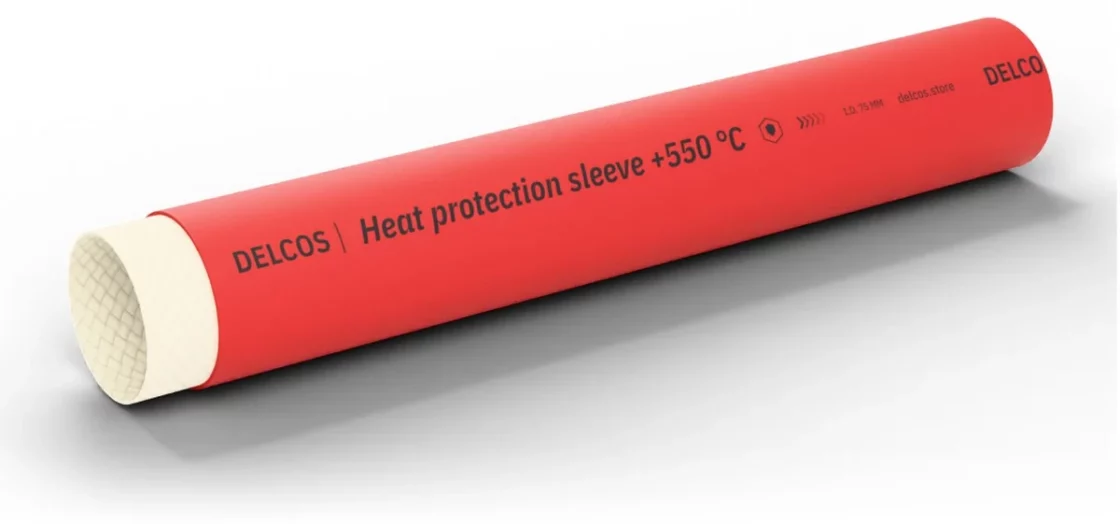

Welding cable protection sleeve
Rubber sleeve for cables and welding torch packages
ID 19–51 mm
Heat protection sleeve +550 °C Protective sleeve up to +550 °C
Protective sleeve for cables and hoses in steel mills: flame, radiant heat and metal splash up to +550 °C. Inner diameter 75–300 mm.
- Inner diameter
- 75–300 mm
- Mode
- cable protection
- Temperature
- −30…+550 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 75, 80, 90, 100, 125, 200, 250, 300
- Mode
- Protective sleeve
- Temperature, °C
- −30…+550
- Coil length, m
- 20
Construction
- Cover
- Non-flammable high oil, abrasion, weather and ozone resistant synthetic elastomer compound, red, smooth
Heat protection sleeve +550 °C sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Wall thickness, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|
| 75 | 981075081 | 81 | 3 | 0.85 | 20 |
| 80 | 981080086 | 86 | 3 | 0.9 | 20 |
| 90 | 981090096 | 96 | 3 | 1.01 | 20 |
| 100 | 981100106 | 106 | 3 | 1.12 | 20 |
| 125 | 981125131 | 131 | 3 | 1.39 | 20 |
| 200 | 981200206 | 206 | 3 | 2.21 | 20 |
| 250 | 981250256 | 256 | 3 | 2.76 | 20 |
| 300 | 981300306 | 306 | 3 | 3.3 | 20 |
Application and limits
- Application
- Protective sleeve for cables and hoses in steel mills: flame, radiant heat and metal splash up to +550 °C.
- Features
- Robust yet flexible, heat and abrasion resistant
Similar series
Whole category
PROTECTION 5HD
Flame retardant cable protection hose for mining
ID 13–51 mm · up to 5 bar
Need a quote for Heat protection sleeve +550 °C?
Send us the diameter, length and medium — we will answer your technical questions.
