PROTECTION 5HD Flame retardant cable protection hose for mining
Flame retardant, antistatic cable protection hose for mining applications. Inner diameter 13–51 mm, working pressure up to 5 bar, temperature from −30 to +85 °C.
- Inner diameter
- 13–51 mm
- Working pressure
- up to 5 bar
- Mode
- cable protection
- Temperature
- −30…+85 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 13, 16, 19, 25, 32, 38, 45, 51
- Working pressure, bar
- 5
- Mode
- Protective sleeve
- Reinforcement
- Textile cord
- Temperature, °C
- −30…+85
- Tube material
- Synthetic rubber
- Coil length, m
- 20, 40

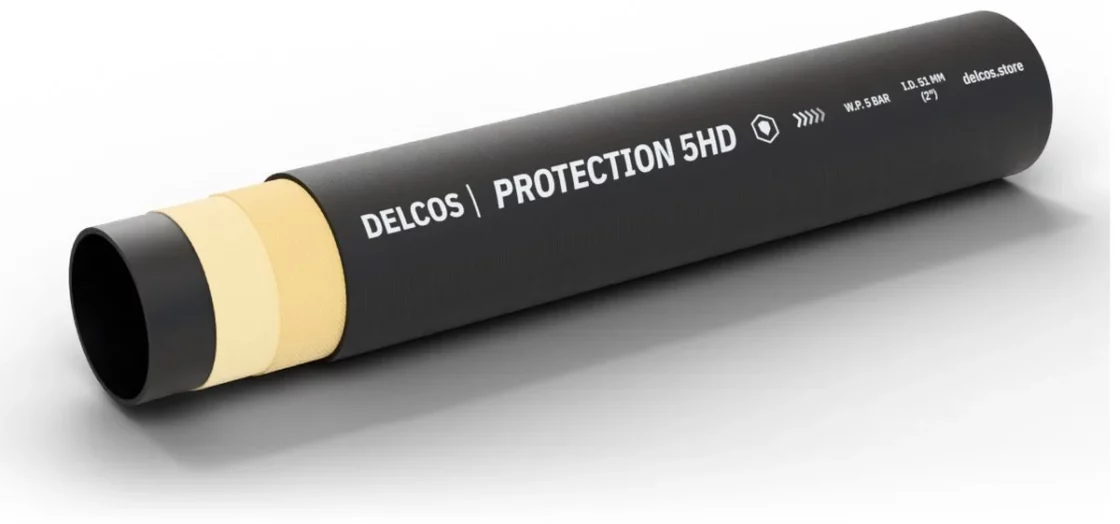

Construction
- Inner tube
- Blend of synthetic elastomer compound, black, smooth, suitable for water and air, resistant to oil mist
- Reinforcement
- High tensile textile cord
- Cover
- Blend of synthetic elastomer compound, black, smooth with cloth impression, flame, oil, weather and ozone resistant
PROTECTION 5HD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Wall thickness, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 13 | 982013021 | 21 | 4 | 5 | 15 | 0.28 | 20, 40 |
| 16 | 982016024 | 24 | 4 | 5 | 15 | 0.34 | 20, 40 |
| 19 | 982019029 | 29 | 5 | 5 | 15 | 0.5 | 20, 40 |
| 25 | 982025035 | 35 | 5 | 5 | 15 | 0.64 | 20, 40 |
| 32 | 982032042 | 42 | 5 | 5 | 15 | 0.79 | 20, 40 |
| 38 | 982038048 | 48 | 5 | 5 | 15 | 0.93 | 20, 40 |
| 45 | 982045055 | 55 | 5 | 5 | 15 | 1.07 | 20, 40 |
| 51 | 982051061 | 61 | 5 | 5 | 15 | 1.2 | 20, 40 |
Application and limits
- Application
- Flame retardant, antistatic cable protection hose for mining applications.
- Features
- Flame resistant, anti-static
- Limits
- Operating temperature from −30 to +85 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
